SPEEDOMETER - TACHOMETER (GS550ED)
GS550E 1983 (D) USA (E03)

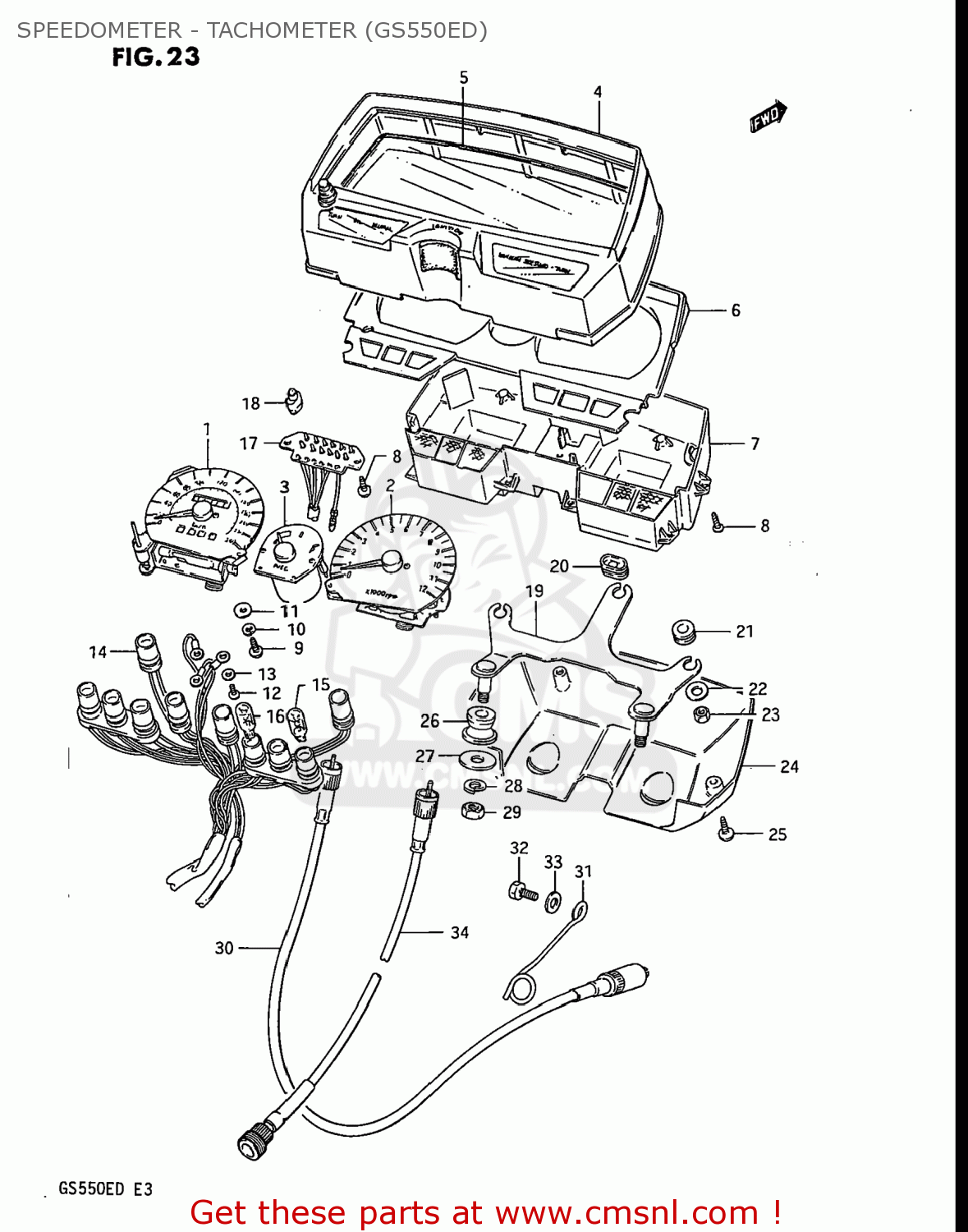

Speedometer - tachometer (gs550ed) diagram GS550E 1983 (D) USA (E03)
SPEEDOMETER - TACHOMETER (GS550ED) GS550E 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3412043430
ref: 1
34120-43431
SPEEDOMETER
€ 189.00
2
3422043480
ref: 2
34220-43411
TACHOMETER
€ 186.50
3
3432043410
ref: 3
METER,FUEL
€ 78.50
4
3415043410
ref: 4
HOOD,METER
€ 72.50
5
3411243410
ref: 5
GLASS,SPEEDOMETER
€ 36.50
6
3415343410
ref: 6
PLATE,METER WINDOW
€ 17.50
7
3411143410
ref: 7
CASE,METER,INNER
€ 64.00
8
3645634510
ref: 8
09132-03501
SCREW,GEAR INDICATOR
€ 2.00
9
0211203108
ref: 9
02112-03107
SCREW
€ 1.50
10
0832121038
ref: 10
09162-03001
LOCK WASHER
€ 1.50
11
0832221038
ref: 11
08322-01037
WASHER
€ 2.00
12
0211203068
ref: 12
02112-0306B
SCREW
€ 2.00
13
0832221038
ref: 13
08322-01037
WASHER
€ 2.00
14
3417043410
ref: 14
SOCKET
€ 95.50
15
0947112082
ref: 15
BULB(12V3.4W,T10,BF175-01450A)
€ 3.50
16
0947112077
ref: 16
BULB(12V1.7W,T10,WB121)
€ 1.00
17
3645343410
ref: 17
SOCKET,GEAR INDICATOR
€ 30.00
18
0947112071
ref: 18
BULB(14V1.12W)
€ 5.00
19
3495043410
ref: 19
BRACKET,METER
€ 17.00
20
3499545720
ref: 20
CUSHION,METER
€ 3.00
21
3499645720
ref: 21
34189-32B00
CUSHION,METER
€ 5.00
22
3418130520
ref: 22
09160-05037
WASHER,METER
€ 1.50
23
0831022058
ref: 23
08310-00057
NUT
€ 2.50
24
3419343410
ref: 24
COVER,METER,UNDER
€ 59.00
25
0311104125
ref: 25
SCREW
€ 1.50
26
3495631001
ref: 26
CUSHION,METER BRACKET
€ 4.50
27
0916008057
ref: 27
09160-08135
WASHER (8.5X20X1.6)
€ 2.00
28
0832121085
ref: 28
08321-0108A
LOCK WASHER
€ 2.50
29
0831011085
ref: 29
08310-0008A
NUT
€ 1.50
30
3491043410
ref: 30
34910-09D10
CABLE ASSEMBLY,SPEEDOMETER
€ 65.00
31
3493845100
ref: 31
CLAMP,SPEEDOMETER CABLE
€ 14.50
32
0110706168
ref: 32
01500-06167
BOLT, UPPER
€ 3.00
33
0832221068
ref: 33
08322-01067
WASHER
€ 2.00
34
3494044311
ref: 34
CABLE ASSY,TACHOMETER
€ 13.50
34
3494044311
ref: 34
CABLE ASSY,TACHOMETER
€ 13.50
