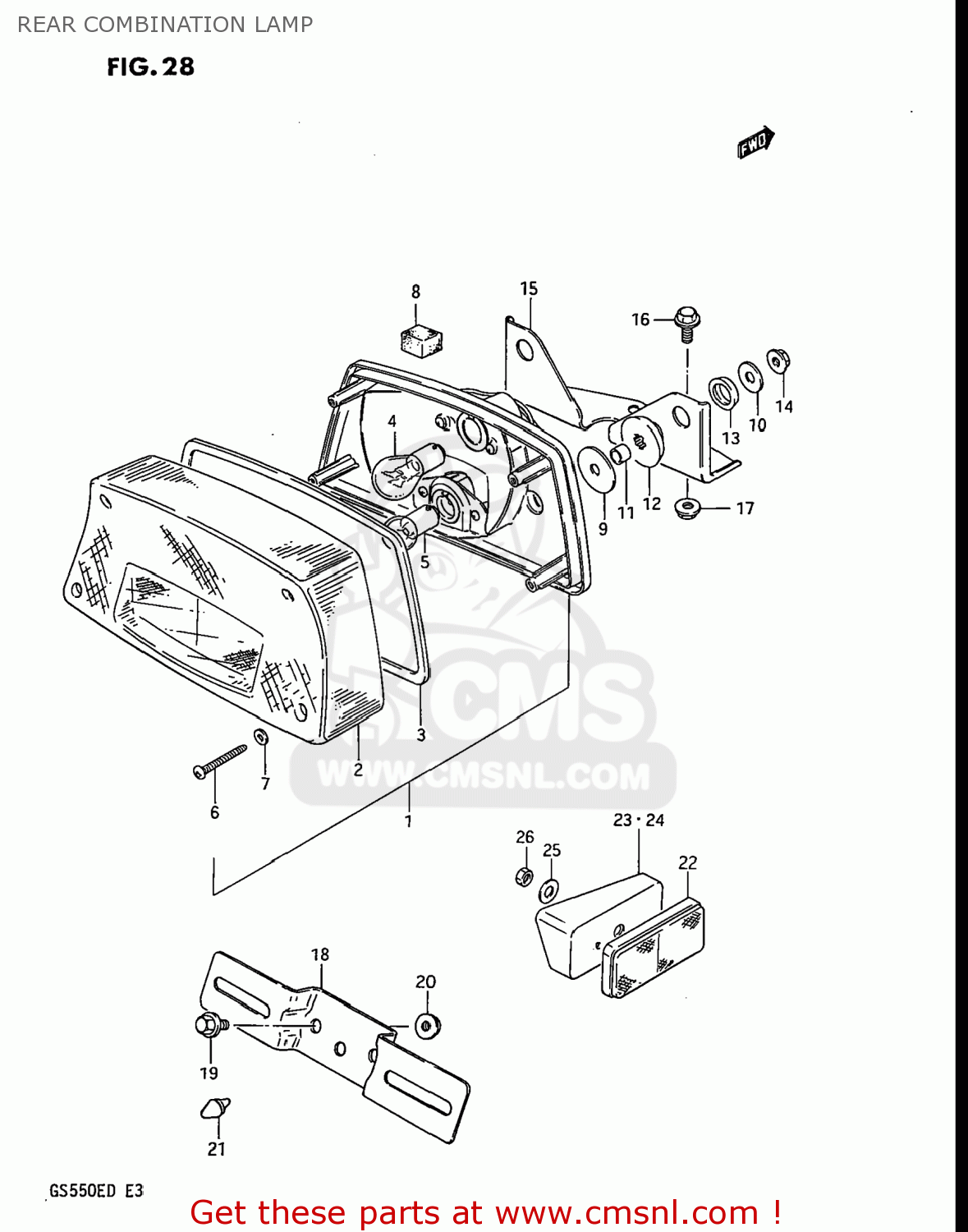

REAR COMBINATION LAMP

ref

part #

description

quantity

1

3571043430
ref: 1
35710-43431

LAMP ASSEMBLY,REAR COMBINATION

€ 140.00

2

3571243430
ref: 2

LENS

€ 37.50

3

3571343410
ref: 3

GASKET

€ 4.00

4

0947112035
ref: 4

BULB(12V23W)

€ 5.50

5

0947112037
ref: 5
09471-12141

BULB

€ 7.00

6

0321104256
ref: 6
03211-0425B

SCREW ,4X25

€ 2.00

7

3562743010
ref: 7

GASKET (NAS)

€ 2.00

8

3573306400
ref: 8
45562-44410

CUSHION,REAR COMBINATION LAMP

€ 4.50

9

0916006071
ref: 9

WASHER(6.5X30X1.2)

€ 2.00

10

0916006012
ref: 10
09160-06054

WASHER(6,5X22X1.6)

€ 2.00

11

0918006006
ref: 11
09180-07019

SPACER (6.8X10X11.5)

€ 3.00

12

0932009012
ref: 12

CUSHION

€ 6.00

13

0932014010
ref: 13

CUSHION

€ 2.50

14

0831626068
ref: 14
08316-2006A

NUT 6MM

€ 2.00

15

3572643400
ref: 15
35726-43401

BRACKET,REAR COMBINATION LAMP

€ 8.00

16

0151706128
ref: 16
01550-06127

BOLT

€ 2.50

17

0831626068
ref: 17
08316-2006A

NUT 6MM

€ 2.00

18

3592743430
ref: 18
35927-27A30

BRACKET,LICENSE PLATE

€ 10.00

19

0151706128
ref: 19
01550-06127

BOLT

€ 2.50

20

0831626068
ref: 20
08316-2006A

NUT 6MM

€ 2.00

21

0932106023
ref: 21

CUSHION

€ 2.00

22

3597043430
ref: 22
35970-02130

REFLECTOR,REFLEX

€ 19.50

23

3597743430
ref: 23

SPACER,REAR REFLECTOR,RIGHT

€ 4.00

24

3597843430
ref: 24

SPACER,REAR REFLECTOR,LEFT

€ 4.00

25

0916005013
ref: 25

WASHER(5.2X16X1)

€ 1.50

26

0831011058
ref: 26
08310-00057

NUT

€ 2.50

all assemblies
