CRANKCASE
GS550ES 1983 (D) USA (E03)

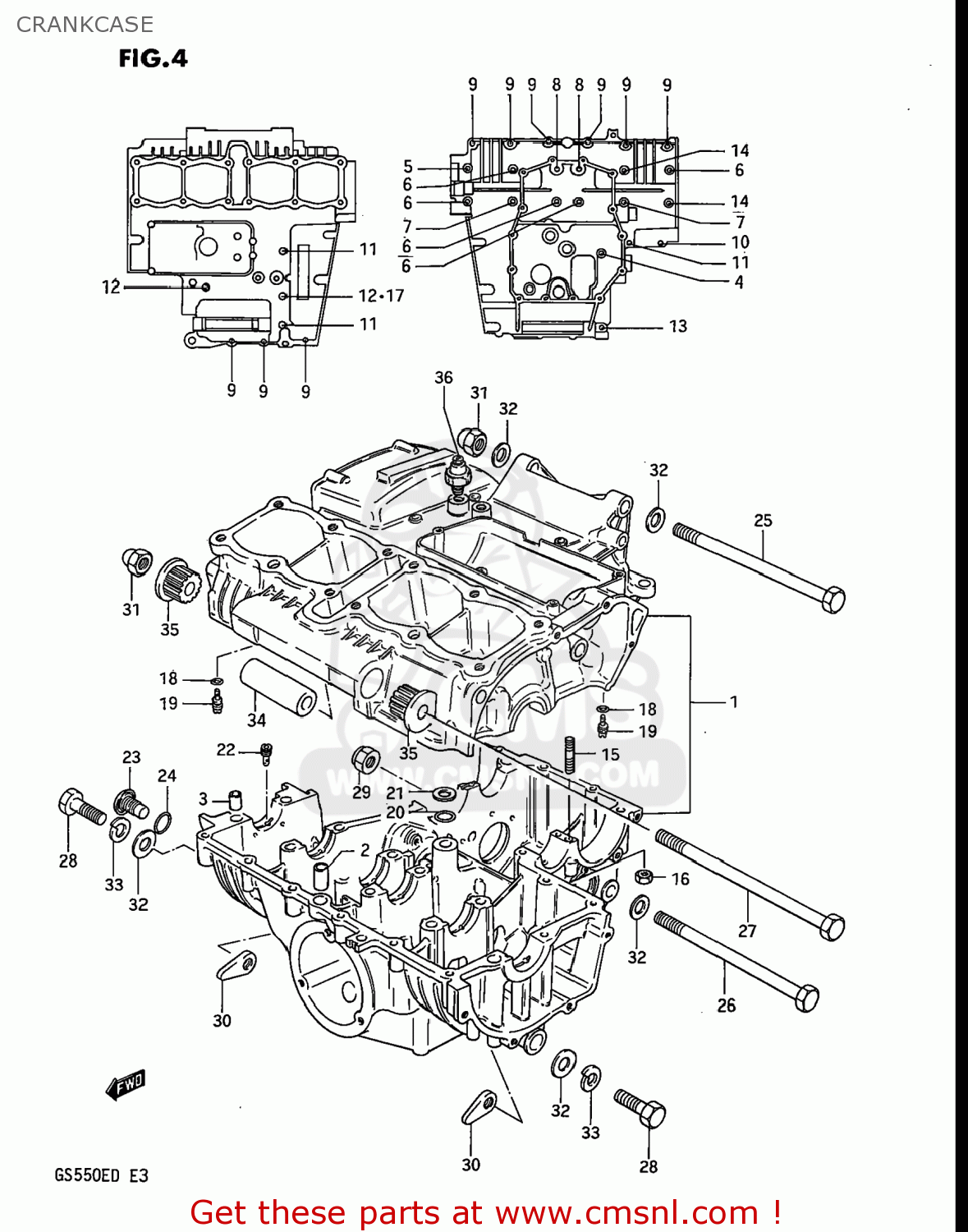

Crankcase diagram GS550ES 1983 (D) USA (E03)
CRANKCASE GS550ES 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130043830
ref: 1
11300-43832
CRANKCASE SET
€ 900.50
2
0920613004
ref: 2
PIN(10.4X13X22)
€ 3.00
3
0920611005
ref: 3
09206-11017
PIN (11X20)(SUS)
€ 6.50
4
0910306060
ref: 4
BOLT(6X100)
€ 2.50
5
0910308061
ref: 5
09103-08230
BOLT
€ 3.50
6
0910308024
ref: 6
09103-08134
BOLT
€ 3.00
7
0910308109
ref: 7
BOLT(8X120)
€ 3.50
8
0910608012
ref: 8
07130-0855B
BOLT
€ 3.50
9
0151706404
ref: 9
01550-0640A
BOLT
€ 2.00
10
0151706555
ref: 10
01550-0655B
BOLT 6X55
€ 2.00
11
0151706855
ref: 11
01550-0685B
BOLT
€ 2.50
12
0151706955
ref: 12
BOLT (5X95)
€ 3.00
13
0151708605
ref: 13
01550-0860A
BOLT 8X60
€ 3.50
14
0151708905
ref: 14
01550-0890B
BOLT (8X90)
€ 3.50
15
0142106505
ref: 15
01421-0650B
STUD BOLT
€ 2.50
16
0831616065
ref: 16
08316-1006B
NUT
€ 2.50
17
0916806018
ref: 17
GASKET(6.2X13X1.2) (NAS)
€ 2.00
18
0928004004
ref: 18
O RING(D:1.2,ID:4)
€ 2.00
19
0949320014
ref: 19
JET,OIL GALLERY
€ 8.00
20
0928013001
ref: 20
O RING(D:3.2,ID:12.9)
€ 4.00
21
0821110201
ref: 21
09181-10195
WASHER,THRUST
€ 2.00
22
0949328011
ref: 22
JET,AIR
€ 12.50
23
0924816003
ref: 23
09248-16007
PLUG
€ 16.50
24
0928017002
ref: 24
O RING(D:2.4,ID:16.8)
€ 3.50
25
0910010136
ref: 25
41189-17X00
BOLT
€ 28.50
26
0910010137
ref: 26
09100-10078
BOLT
€ 10.50
27
0910310072
ref: 27
09103-10118
BOLT
€ 7.00
28
0110710355
ref: 28
01500-1035B
BOLT
€ 2.50
29
0831931105
ref: 29
08319-3110A
NUT 10MM
€ 3.00
30
0915910020
ref: 30
NUT
€ 7.50
31
0915910039
ref: 31
09159-10064
NUT
€ 8.50
32
0832211105
ref: 32
08322-0110A
WASHER
€ 2.50
33
0832121105
ref: 33
08321-0110A
LOCK WASHER
€ 3.00
34
0918010093
ref: 34
SPACER (10.2X16X105.5)
€ 9.00
35
0931910042
ref: 35
BUSH
€ 16.50
36
3782034200
ref: 36
37820-33D10
SWITCH ASSEMBLY
€ 29.00
