SPEEDOMETER - TACHOMETER (GS550ESD)
GS550ES 1983 (D) USA (E03)

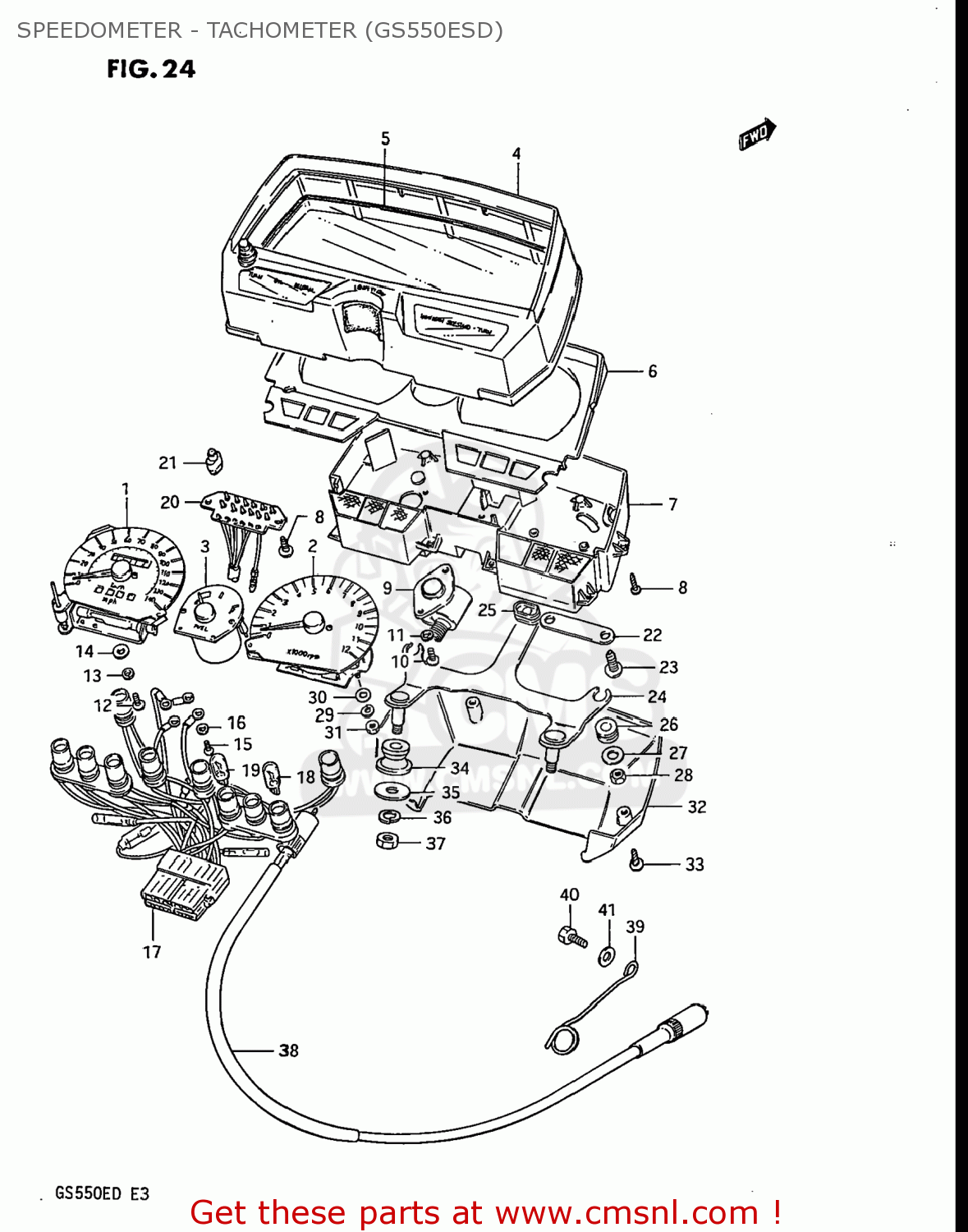

Speedometer - tachometer (gs550esd) diagram GS550ES 1983 (D) USA (E03)
SPEEDOMETER - TACHOMETER (GS550ESD) GS550ES 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3412043460
ref: 1
34120-43450
SPEEDOMETER
€ 157.00
2
3422043460
ref: 2
34220-43402
TACHOMETER
€ 459.50
3
3432043410
ref: 3
METER,FUEL
€ 78.50
4
3415043410
ref: 4
HOOD,METER
€ 72.50
5
3411243410
ref: 5
GLASS,SPEEDOMETER
€ 36.50
6
3415343410
ref: 6
PLATE,METER WINDOW
€ 17.50
7
3411143400
ref: 7
CASE,METER,INNER
€ 51.00
8
3645634510
ref: 8
09132-03501
SCREW,GEAR INDICATOR
€ 2.00
9
3413143400
ref: 9
BOX,GEAR
€ 121.50
10
0211204108
ref: 10
02112-04107
SCREW 4X10
€ 2.00
11
0832121048
ref: 11
08321-0104A
LOCK WASHER
€ 2.00
12
0211203108
ref: 12
02112-03107
SCREW
€ 1.50
13
0832121038
ref: 13
09162-03001
LOCK WASHER
€ 1.50
14
0832221038
ref: 14
08322-01037
WASHER
€ 2.00
15
0211203068
ref: 15
02112-0306B
SCREW
€ 2.00
16
0832221038
ref: 16
08322-01037
WASHER
€ 2.00
17
3417043400
ref: 17
SOCKET,METER
€ 0.00
18
0947112082
ref: 18
BULB(12V3.4W,T10,BF175-01450A)
€ 3.50
19
0947112077
ref: 19
BULB(12V1.7W,T10,WB121)
€ 1.00
20
3645343410
ref: 20
SOCKET,GEAR INDICATOR
€ 30.00
21
0947112071
ref: 21
BULB(14V1.12W)
€ 5.00
22
3418243400
ref: 22
PLATE,COUPLER
€ 3.00
23
0321104108
ref: 23
03211-0410B
SCREW
€ 2.00
24
3495043410
ref: 24
BRACKET,METER
€ 17.00
25
3499545720
ref: 25
CUSHION,METER
€ 3.00
26
3499645720
ref: 26
34189-32B00
CUSHION,METER
€ 5.00
27
3418130520
ref: 27
09160-05037
WASHER,METER
€ 1.50
28
0831022058
ref: 28
08310-00057
NUT
€ 2.50
29
0832121048
ref: 29
08321-0104A
LOCK WASHER
€ 2.00
30
3418143400
ref: 30
WASHER,SPEEDOMETER
€ 2.00
31
0831011048
ref: 31
08310-00047
NUT
€ 2.00
32
3419343400
ref: 32
COVER,METER,UNDER
€ 51.00
33
0311104125
ref: 33
SCREW
€ 1.50
34
3495631001
ref: 34
CUSHION,METER BRACKET
€ 4.50
35
0916008057
ref: 35
09160-08135
WASHER (8.5X20X1.6)
€ 2.00
36
0832121085
ref: 36
08321-0108A
LOCK WASHER
€ 2.50
37
0831011085
ref: 37
08310-0008A
NUT
€ 1.50
38
3491038420
ref: 38
34910-38430
CABLE ASSEMBLY,SPEEDOMETER
€ 22.50
39
3493845100
ref: 39
CLAMP,SPEEDOMETER CABLE
€ 14.50
40
0110706168
ref: 40
01500-06167
BOLT, UPPER
€ 3.00
41
0832221068
ref: 41
08322-01067
WASHER
€ 2.00
