SEAT TAIL COVER

GS550ES 1983 (D) USA (E03)

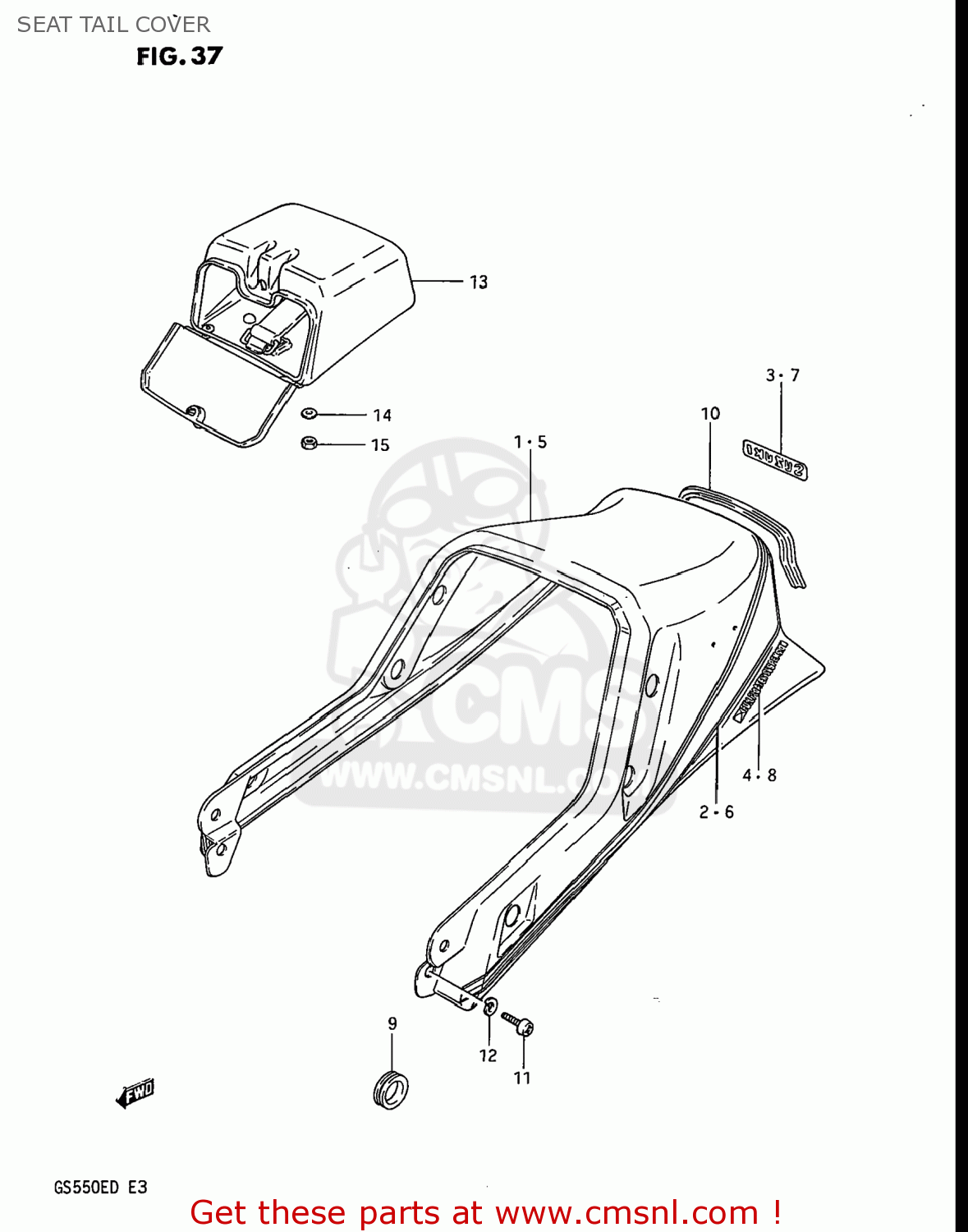

Seat tail cover diagram GS550ES 1983 (D) USA (E03)

SEAT TAIL COVER GS550ES 1983 (D) USA (E03)

SEAT TAIL COVER GS550ES 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

455104341088D
ref: 1

COVER COMP,SEAT TAIL

€ 90.50

2

681604340093L
ref: 2

TAPE SET,SEAT TAIL COVER

€ 37.00

3

6816631300064
ref: 3

EMBLEM(WHITE)

€ 3.50

4

682350470091R
ref: 4

EMBLEM

€ 2.50

5

455104341088M
ref: 5
45511-43410

COVER COMP,SEAT TAIL

€ 90.50

6

681604340093M
ref: 6

TAPE SET,SEAT TAIL COVER

€ 34.50

7

6816631300064
ref: 7

EMBLEM(WHITE)

€ 3.50

8

682350470091R
ref: 8

EMBLEM

€ 2.50

9

4552204700
ref: 9

GROMMET,SEAT LOCK HOLE

€ 4.00

10

4556243400
ref: 10
45562-43401

BLIND,SEAT TAIL COVER

€ 5.50

11

0211206168
ref: 11
02112-06167

SCREW

€ 2.50

12

0832121068
ref: 12
08321-01067

LOCK WASHER

€ 2.50

13

9499043400
ref: 13

BOX,SEAT TAIL

€ 30.50

14

0916906010
ref: 14

WASHER

€ 3.00

15

0831931068
ref: 15
08319-31067

NUT

€ 2.50
