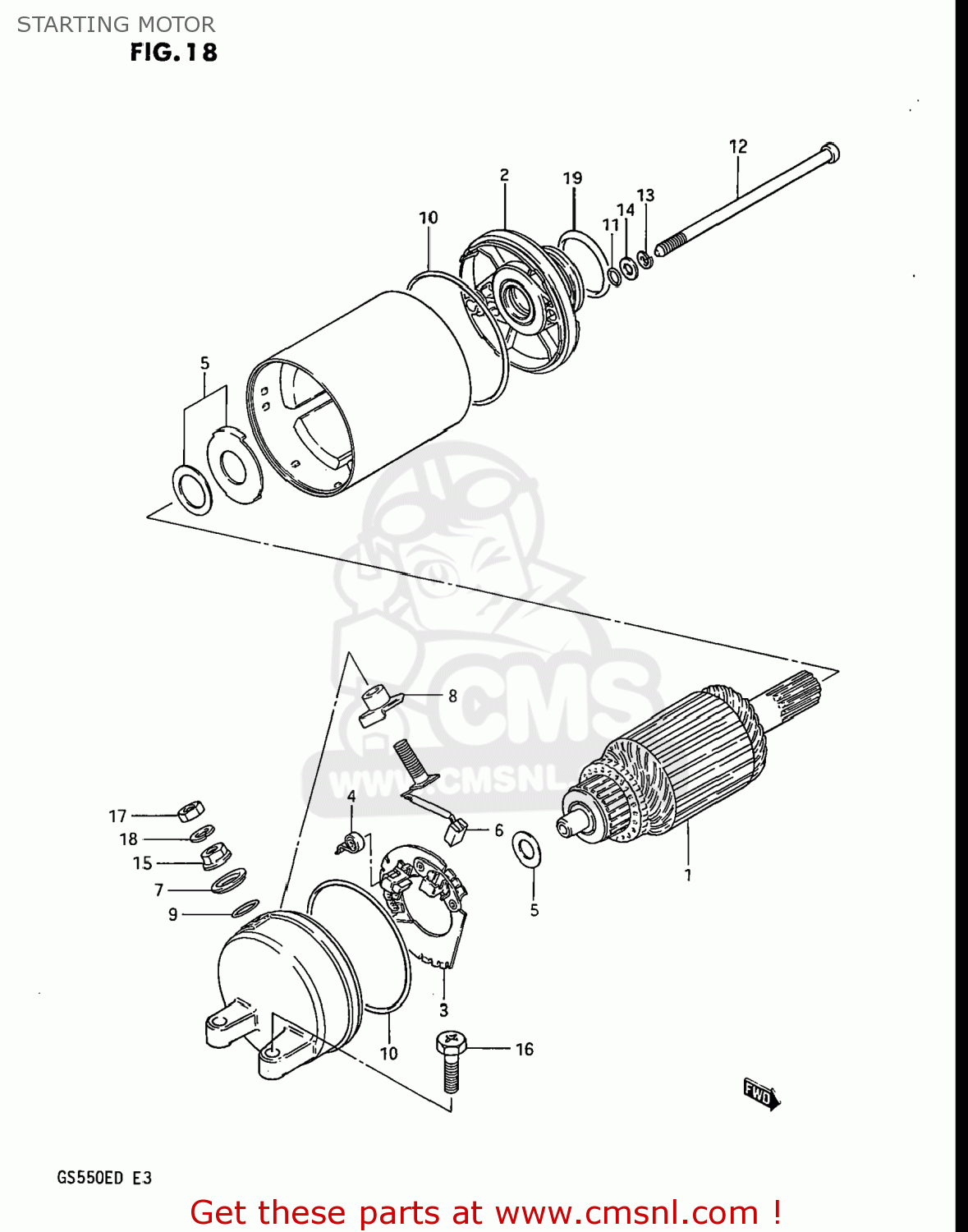

STARTING MOTOR

ref

part #

description

quantity

3110043400
ref:
31100-30B00-H17

MOTOR ASSEMBLY,STARTING

€ 731.50

1

3131043400
ref: 1
31310-43401-H17

ARMATURE

€ 173.00

2

3115043400
ref: 2

BRACKET SET,STARTING MOTOR

€ 88.00

3

3113244110
ref: 3
31132-27A01

HOLDER,BRUSH

€ 47.00

4

3113565010
ref: 4

SPRING

€ 3.00

5

3117043400
ref: 5

SHIM SET,STARTING MOTOR

€ 3.50

6

3113038300
ref: 6

BRUSH SUB ASSY,STARTING MOTOR

€ 12.50

7

3117238300
ref: 7

BUSHING

€ 4.00

8

3117138300
ref: 8

BUSH,B

€ 5.50

9

3114338300
ref: 9

O RING

€ 3.50

10

3126444110
ref: 10

O RING

€ 8.00

11

3115638300
ref: 11

O RING

€ 3.00

12

3128105300
ref: 12
31281-88C00

BOLT

€ 8.50

13

0832121058
ref: 13
08321-0105A

LOCK WASHER

€ 2.00

14

3116138300
ref: 14

WASHER

€ 2.50

15

0831616068
ref: 15
08319-31067

NUT

€ 2.50

16

3121533400
ref: 16

BOLT

€ 2.00

17

0831022068
ref: 17
08310-00067

NUT 6MM

€ 2.50

18

0832121068
ref: 18
08321-01067

LOCK WASHER

€ 2.50

19

0928024003
ref: 19

O RING(D:3,ID:24.5)

€ 2.00

all assemblies
