FOOTREST (MODEL X)
GS650GL 1981 (X) USA (E03)

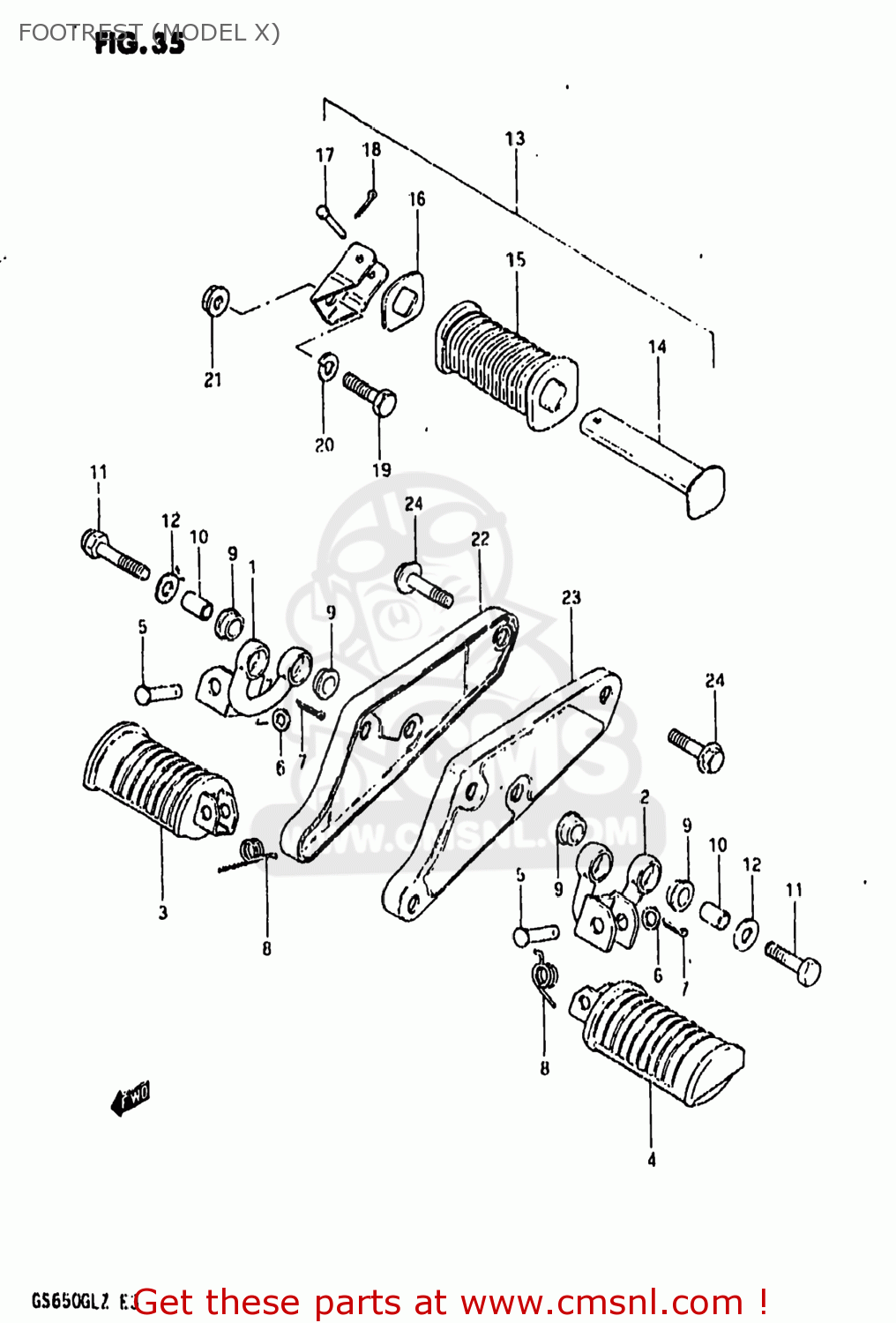

Footrest (model x) diagram GS650GL 1981 (X) USA (E03)
FOOTREST (MODEL X) GS650GL 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4351034200
ref: 1
BAR,FRONT FOOTREST
€ 17.00
2
4352034200
ref: 2
BAR,FRONT FOOTREST,LEFT
€ 52.00
3
4355037301
ref: 3
RUBBER,PILLION FOOTREST,R
€ 22.50
4
4356037301
ref: 4
RUBBER,PILLION FOOTREST,L
€ 22.50
5
0920008002
ref: 5
PIN
€ 2.00
6
0832211088
ref: 6
08322-01087
WASHER
€ 2.00
7
0411120158
ref: 7
04111-2015A
PIN
€ 1.50
8
0944814012
ref: 8
SPRING
€ 3.00
9
0930514004
ref: 9
BUSH
€ 6.00
10
0918010066
ref: 10
SPACER (10.2X14X20)
€ 3.50
11
0910410007
ref: 11
09104-10029
BOLT
€ 3.50
12
0916010035
ref: 12
WASHER(10.5X28X2.3)
€ 2.00
13-1
4360034500
ref: 13-1
FOOTREST ASSY,PILLION,R
€ 118.00
13-2
4370034500
ref: 13-2
FOOTREST ASSY,PILLION,L
€ 107.50
14-1
4361049201
ref: 14-1
BAR,REAR FOOTREST,RIGHT
€ 8.00
14-2
4362049201
ref: 14-2
BAR,REAR FOOTREST,LEFT
€ 23.00
15
4361249201
ref: 15
RUBBER,PILLION FOOTREST
€ 30.50
16
4363149201
ref: 16
43631-45001
WASHER,FOOTREST RUBBER
€ 16.00
17
0920006010
ref: 17
PIN
€ 2.50
18
0411120158
ref: 18
04111-2015A
PIN
€ 1.50
19
0110710358
ref: 19
01500-1035B
BOLT,M10X1.25X
€ 2.50
20
0832121108
ref: 20
08321-01107
LOCK WASHER
€ 2.00
21
0831616108
ref: 21
08316-10107
NUT
€ 2.00
22
4381034200
ref: 22
BRACKET
€ 0.00
23
4382034200
ref: 23
BRACKET
€ 0.00
24
0152710207
ref: 24
01550-1020A
BOLT
€ 3.00
