HANDLEBAR

GS650GL 1981 (X) USA (E03)

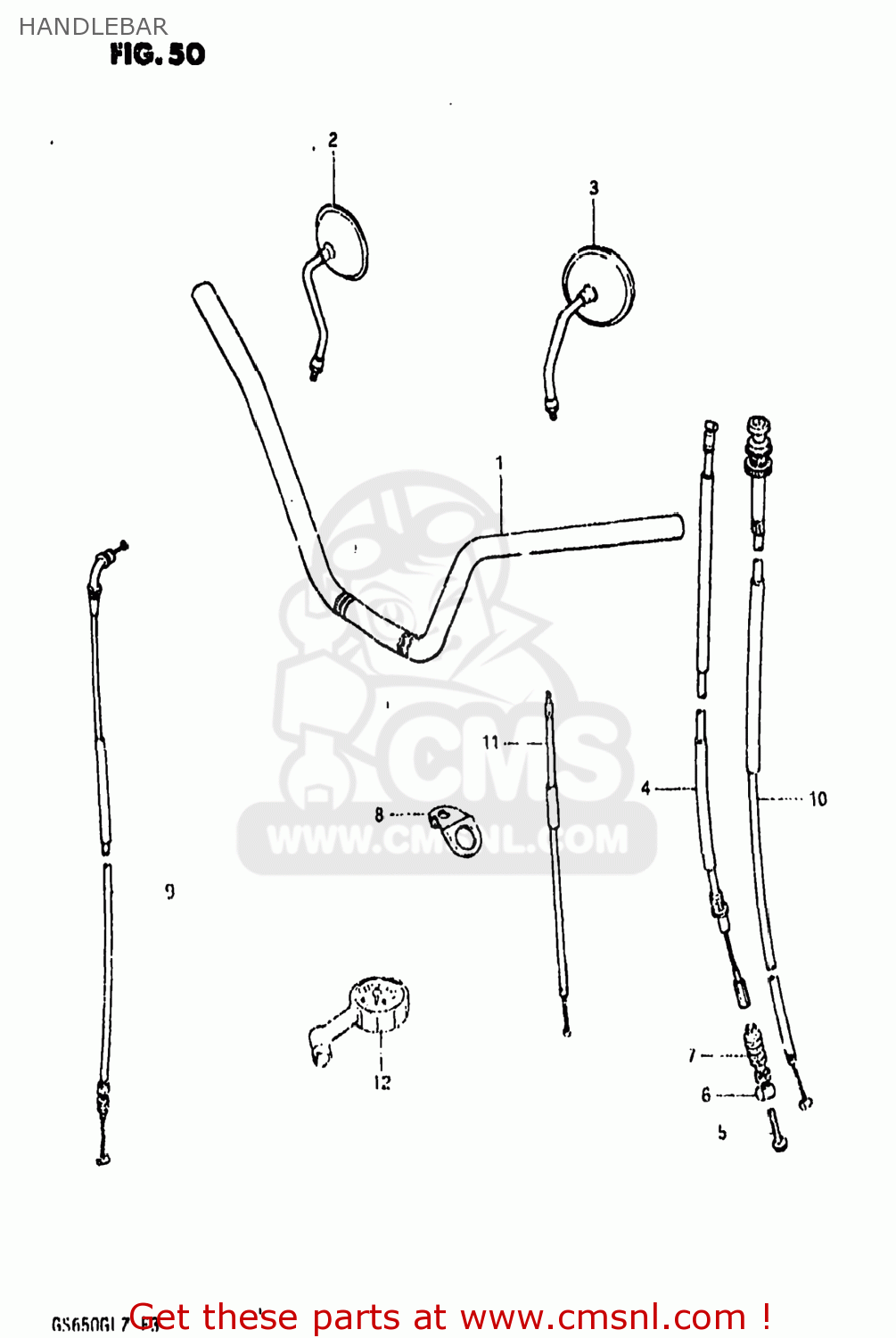

Handlebar diagram GS650GL 1981 (X) USA (E03)

HANDLEBAR GS650GL 1981 (X) USA (E03)

HANDLEBAR GS650GL 1981 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5611045210
ref: 1

HANDLEBAR

€ 72.50

2

5650044200
ref: 2
56500-44201

MIRROR ASSEMBLY,RIGHT

€ 72.00

3

5660044200
ref: 3
56600-44201

MIRROR ASSEMBLY,LEFT

€ 72.00

4

5820034400
ref: 4
58200-34X03

CABLE ASSEMBLY,CLUTCH

€ 43.00

5

0912505034
ref: 5

SCREW

€ 1.50

6

0920910019
ref: 6

PIN

€ 3.00

7

0928707004
ref: 7
09287-07003

DUST SEAL

€ 4.00

8

5924345010
ref: 8

GUIDE,BRAKE HOSE

€ 8.50

9

5830034400
ref: 9
58300-45221

CABLE ASSEMBLY,THROTTLE

€ 29.50

10

5840047000
ref: 10
58400-45110

CABLE ASSEMBLY,STARTER

€ 27.00

11

5841047500
ref: 11
58410-47X00

CABLE COMP,STARTER

€ 14.00

12

9620041330
ref: 12

GAUGE ASSY,AIR PRESSURE

€ 77.50
