STEERING STEM (MODEL X)
GS650GL 1981 (X) USA (E03)

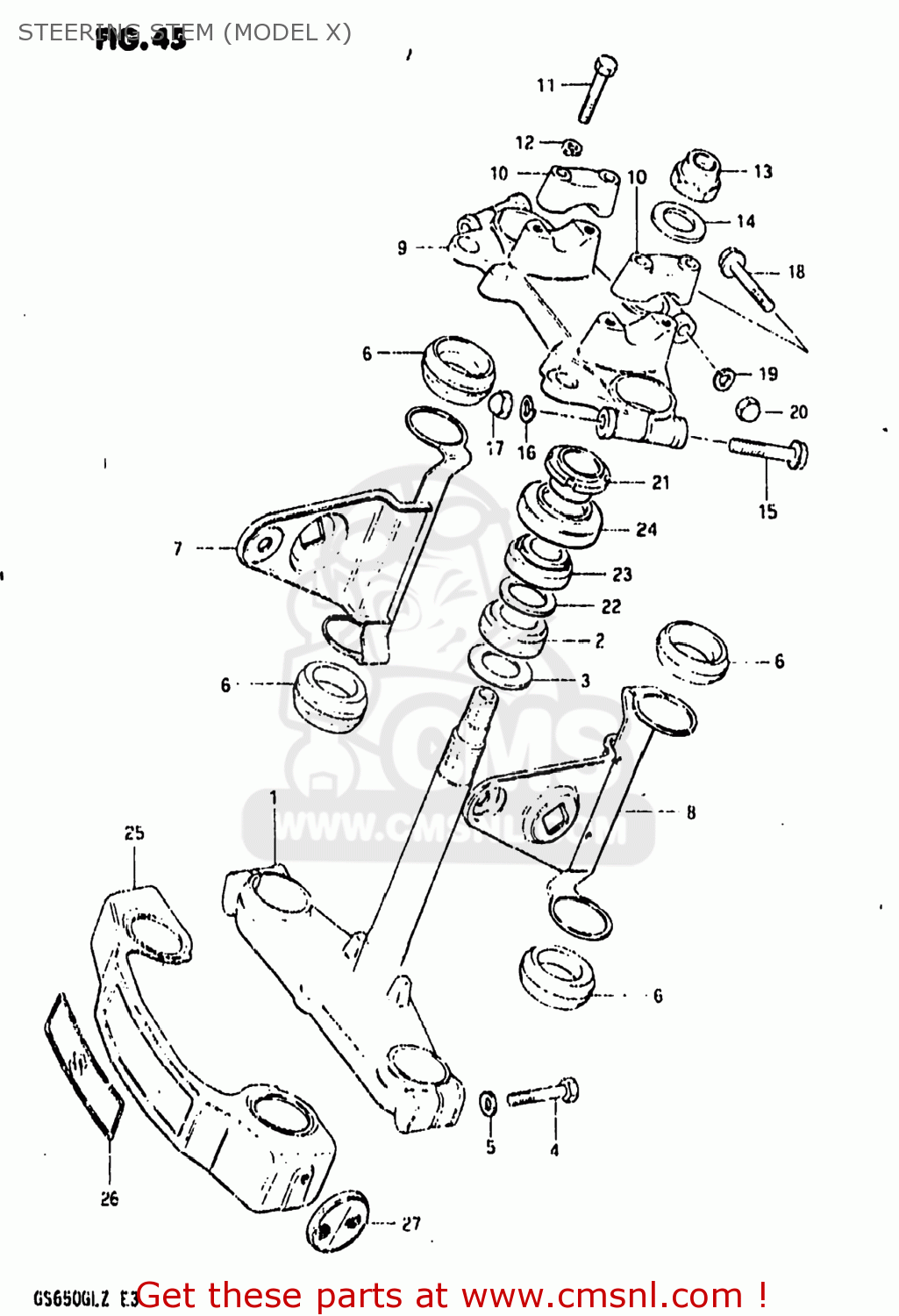

Steering stem (model x) diagram GS650GL 1981 (X) USA (E03)
STEERING STEM (MODEL X) GS650GL 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5140034810
ref: 1
51400-34861
STEM,STEERING
€ 125.00
2
0926530005
ref: 2
09265-30009
BEARING
€ 49.50
3
0821130402
ref: 3
09181-30184
WASHER,THRUST
€ 4.00
4
0110708458
ref: 4
01500-08453
BOLT 8X45
€ 2.50
5
0832131088
ref: 5
08321-01087
WASHER,LOCK,8.
€ 2.00
6
5155347000
ref: 6
51553-34280
CUSHION,HEADLAMP BRACKET
€ 3.50
7
5153034400
ref: 7
BRACKET,HEADLAMP,RIGHT
€ 31.50
8
5154034400
ref: 8
BRACKET,HEADLAMP,LEFT
€ 19.00
9
5131134400291
ref: 9
HEAD,STEERING STEM
€ 112.50
10
5621127200291
ref: 10
HOLDER,HANDLE UPR
€ 13.50
11
0120408357
ref: 11
BOLT
€ 3.50
12
0832121088
ref: 12
08321-01087
LOCK WASHER
€ 2.00
13
5135345000
ref: 13
NUT,FR FORK UPR BRACKET
€ 10.50
14
5135631700
ref: 14
WASHER
€ 9.50
15
0151710558
ref: 15
01550-10557
BOLT 10X55
€ 3.00
16
0832131108
ref: 16
08321-01107
LOCK WASHER
€ 2.00
17
0914510002
ref: 17
NUT
€ 4.00
18
0151708508
ref: 18
01550-08507
BOLT
€ 3.50
19
0832121088
ref: 19
08321-01087
LOCK WASHER
€ 2.00
20
0831311088
ref: 20
08313-10087
NUT
€ 2.50
21
5163134200
ref: 21
NUT,STEERING STEM
€ 23.00
22
0916018002
ref: 22
WASHER(18.5X24X1)
€ 2.00
23
0926525008
ref: 23
09265-25019
TAPER,ROLLER BEARING
€ 48.50
24
5164340501
ref: 24
51643-40502
DUST SEAL,STEERING,UPPER
€ 8.00
25
5187145301
ref: 25
COVER,FRONT FORK
€ 37.50
26
6821145300
ref: 26
EMBLEM,FR FORK COVER
€ 16.50
27
3595049080
ref: 27
REFLEX REFLECTOR,RR
€ 17.50
