REAR FENDER
GS650GL 1981 (X) USA (E03)

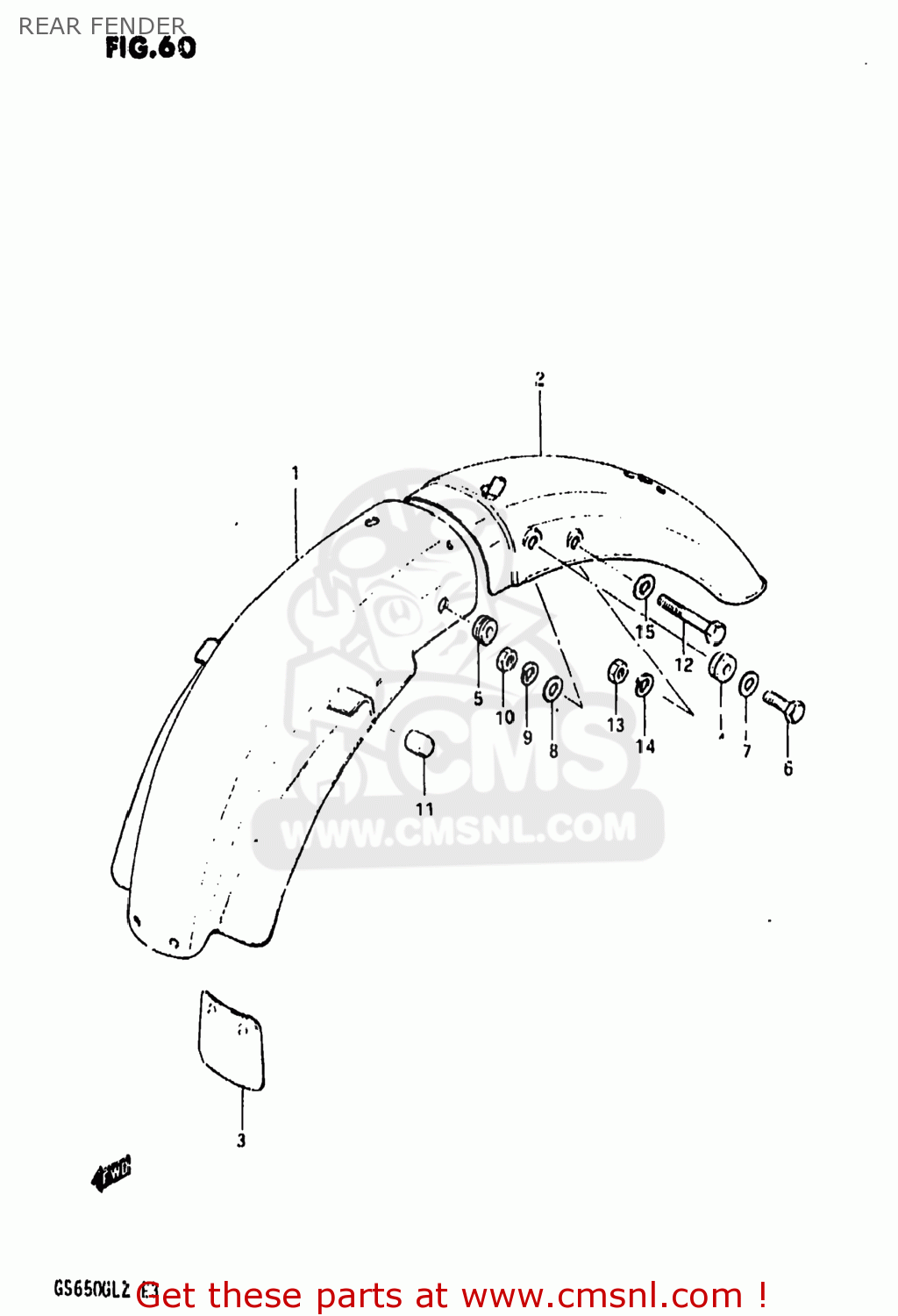

Rear fender diagram GS650GL 1981 (X) USA (E03)
REAR FENDER GS650GL 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6311234211
ref: 1-1
63112-34213
FENDER,REAR
€ 45.50
1-2
6311234213
ref: 1-2
BODY,REAR FENDER,FRONT
€ 45.50
2
6311034400
ref: 2
FENDER,REAR
€ 56.50
3
6341131900
ref: 3
GUIDE,RR FENDER MUD
€ 8.00
4
0932005006
ref: 4
09320-06504
CUSHION
€ 4.00
5
0932005006
ref: 5
09320-06504
CUSHION
€ 4.00
6
0110708168
ref: 6
01500-0816B
BOLT
€ 2.00
7
0832211088
ref: 7
08322-01087
WASHER
€ 2.00
8
0832211088
ref: 8
08322-01087
WASHER
€ 2.00
9
0832121088
ref: 9
08321-01087
LOCK WASHER
€ 2.00
10-1
0831012088
ref: 10-1
08310-00087
NUT
€ 2.00
10-2
0831022088
ref: 10-2
08310-00087
NUT 8MM
€ 2.00
11
0932905003
ref: 11
CUSHION
€ 4.50
12
0120408757
ref: 12
BOLT
€ 2.50
13
0831022088
ref: 13
08310-00087
NUT 8MM
€ 2.00
14
0832121088
ref: 14
08321-01087
LOCK WASHER
€ 2.00
15
0832211088
ref: 15
08322-01087
WASHER
€ 2.00
