FRAME

GS650GL 1981 (X) USA (E03)

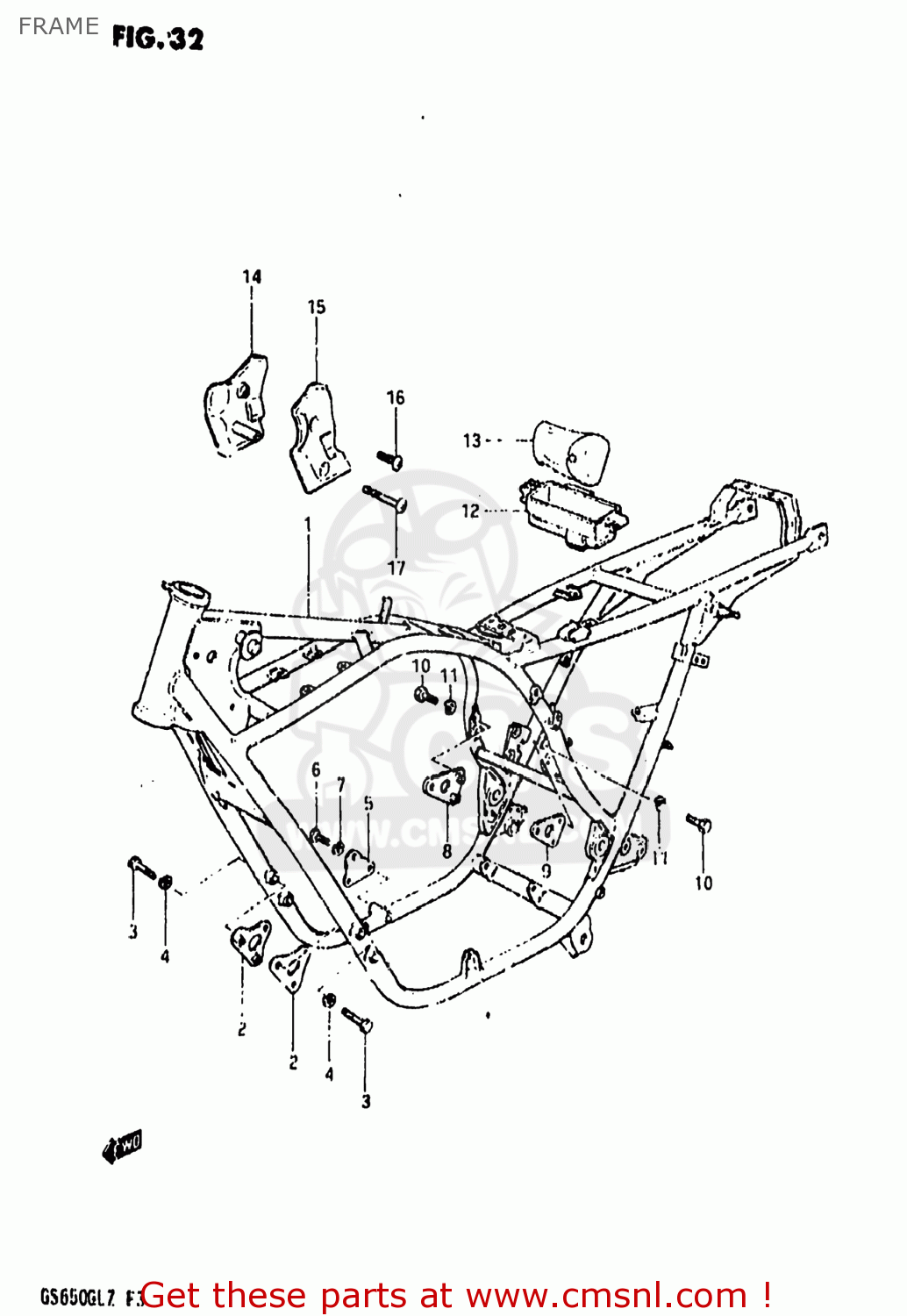

Frame diagram GS650GL 1981 (X) USA (E03)

FRAME GS650GL 1981 (X) USA (E03)

FRAME GS650GL 1981 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4110034400019
ref: 1
41100-34401-019

FRAME

€ 660.00

2

4191034200019
ref: 2

PLATE,ENGINE MOUNTING NO

€ 8.50

3

0110708608
ref: 3
01500-0860B

BOLT

€ 2.50

4

0832121088
ref: 4
08321-01087

LOCK WASHER

€ 2.00

5

4192134200019
ref: 5

BOLT,CRANKCASE ADJUST

€ 0.00

6

0110708168
ref: 6
01500-0816B

BOLT

€ 2.00

7

0832121088
ref: 7
08321-01087

LOCK WASHER

€ 2.00

8

4197034200019
ref: 8

PLATE,ENGINE MOUNTING NO

€ 6.00

9

4198034200019
ref: 9

PLATE,ENGINE MOUNTING

€ 0.00

10

0110708168
ref: 10
01500-0816B

BOLT

€ 2.00

11

0832121088
ref: 11
08321-01087

LOCK WASHER

€ 2.00

12

4155134200
ref: 12

HOLDER,TOOL

€ 0.00

13

0980006800
ref: 13
09800-06801

TOOL SET

€ 52.00

14

5187634400
ref: 14

COVER,FRAME HEAD,RIGHT

€ 0.00

15

5188634400
ref: 15

COVER,FRAME HEAD,LEFT

€ 6.50

16

0214205208
ref: 16
02142-05207

(5X20) CROSS SCREW

€ 2.00

17

0214205458
ref: 17
02142-05453

SCREW, LOWER

€ 2.00
