HEADLAMP

GS850G 1984 (E) (E01 E02 E04 E06 E22 E24 E25)

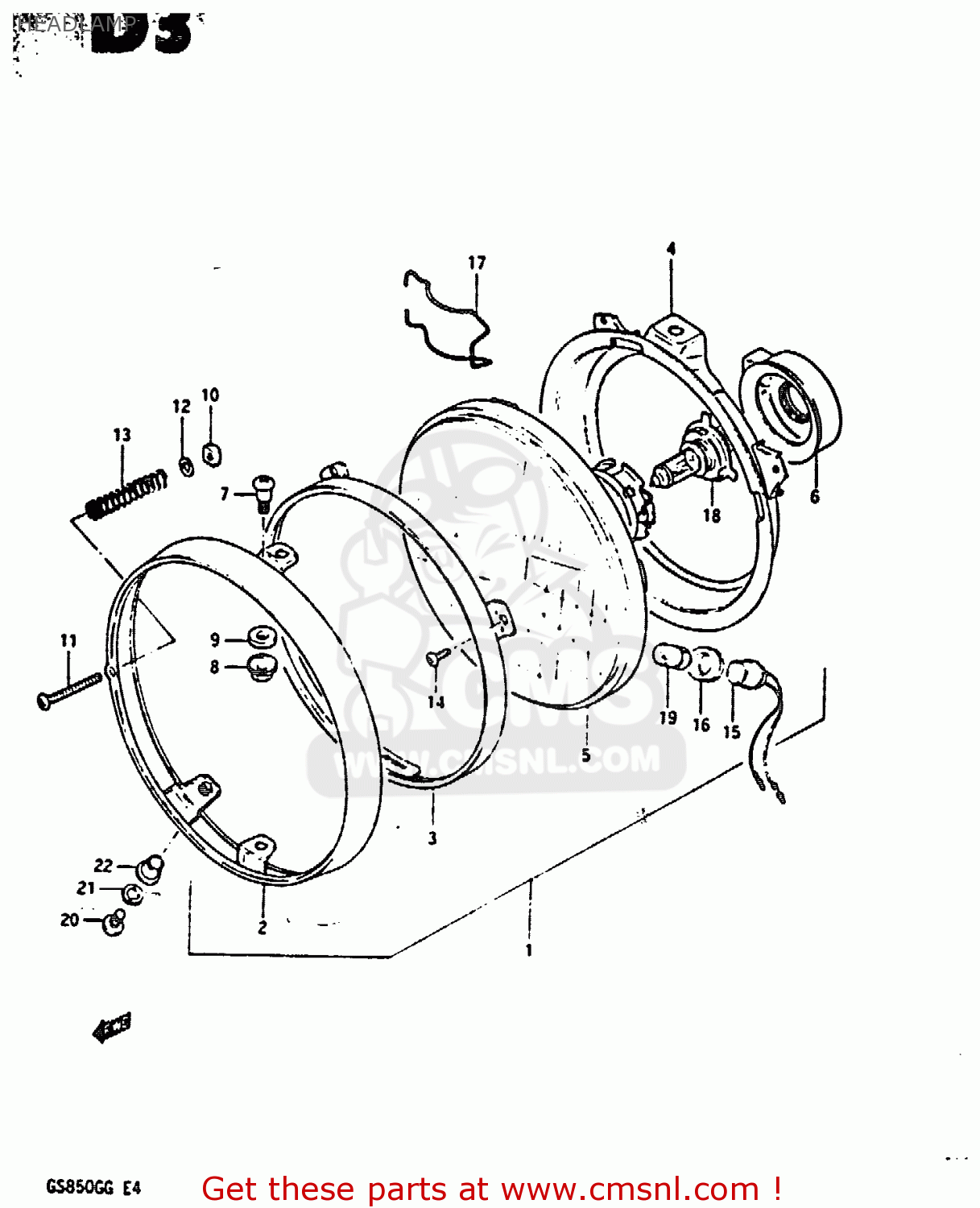

Headlamp diagram GS850G 1984 (E) (E01 E02 E04 E06 E22 E24 E25)

HEADLAMP GS850G 1984 (E) (E01 E02 E04 E06 E22 E24 E25)
HEADLAMP GS850G 1984 (E) (E01 E02 E04 E06 E22 E24 E25)
HEADLAMP GS850G 1984 (E) (E01 E02 E04 E06 E22 E24 E25)
prices are in EUR
ref
part #
description
quantity
1-1
3510049010999
ref: 1-1
E1, E6, E24
HEADLAMP ASSEMBLY
3510049010999
€ 88.00
1-2
3510049040999
ref: 1-2
E2
HEADLAMP ASSY
3510049040999
€ 230.50
1-3
3510049020999
ref: 1-3
E4, E22, E25
HEADLAMP ASSY
€ 208.00
2
3511145600
ref: 2
RIM
3511145600
€ 57.50
3
3512745600
ref: 3
RETAINER
3512745600
€ 39.00
4
3513045600
ref: 4
RING,HEADLAMP UNIT
3513045600
€ 35.00
5-1
3512149010
ref: 5-1
E1, E6, E24
LAMP UNIT
3512149010
€ 136.00
5-2
3512149040
ref: 5-2
E2
UNIT
3512149040
€ 146.50
5-3
3512149020
ref: 5-3
E4, E22, E25
UNIT,HEAD LAMP
3512149020
€ 136.00
6
3517349020
ref: 6
COVER,HEADLAMP SOCKET
3517349020
€ 14.00
7
3513625611
ref: 7
SCREW
3513625611
€ 4.00
8
3513525611
ref: 8
NUT,ADJUSTING
3513525611
€ 2.50
9
3513345600
ref: 9
SPACER
3513345600
€ 3.50
10
3513545600
ref: 10
NUT
3513545600
€ 3.00
11
3515145230
ref: 11
SCREW
3515145230
€ 3.50
12
3515727630
ref: 12
WASHER
3515727630
€ 2.50
13
3515445600
ref: 13
SPRING,HEADLAMP ADJUST
3515445600
€ 3.50
14
0211203087
ref: 14
SCREW
€ 1.50
15
3611849320
ref: 15
E2, E4, E22, E25
SOCKET
3611849320
€ 12.00
16
3611622630
ref: 16
E2, E4, E22, E25
JOINT,RUBBER
3611622630
€ 5.00
17
3517249020
ref: 17
CLAMP,HEADLAMP SOCKET
3517249020
€ 3.50
18-1
0947112060
ref: 18-1
BULB(12V60/55W,H4)
0947112060
€ 8.00
18-2
0947112061
ref: 18-2
E4 EXECUTED LOCALLY
BULB (12V, 60/55W, H4)
€ 0.00
19
0947112063
ref: 19
E2, E4, E22, E25
BULB(12V4W)
0947112063
€ 6.00
20
0912505022
ref: 20
SCREW
0912505022
€ 3.50
21
0916205003
ref: 21
WASHER,LOCK
0916205003
€ 2.00
22
0916906021
ref: 22
WASHER
0916906021
€ 2.50
