REAR MASTER CYLINDER

GS850G 1984 (E) (E01 E02 E04 E06 E22 E24 E25)

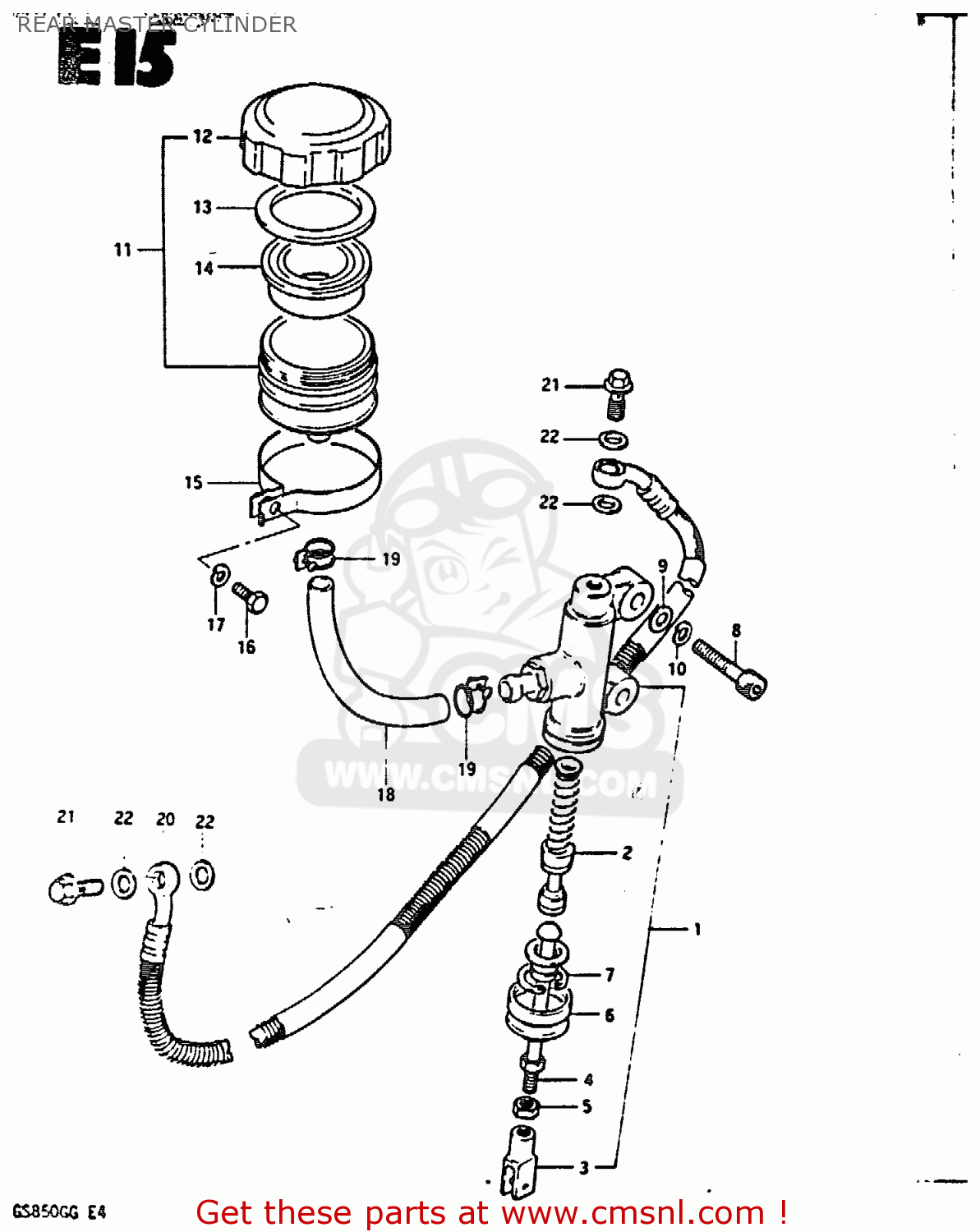

Rear master cylinder diagram GS850G 1984 (E) (E01 E02 E04 E06 E22 E24 E25)

REAR MASTER CYLINDER GS850G 1984 (E) (E01 E02 E04 E06 E22 E24 E25)
REAR MASTER CYLINDER GS850G 1984 (E) (E01 E02 E04 E06 E22 E24 E25)
REAR MASTER CYLINDER GS850G 1984 (E) (E01 E02 E04 E06 E22 E24 E25)
prices are in EUR
ref
part #
description
quantity
1
6960045302
ref: 1
CYLINDER ASSY,RR MASTER
6960045302
€ 177.00
2
6960045820
ref: 2
PISTON/CUP SET
6960045820
€ 53.00
3
6969234300
ref: 3
YOKE
6969234300
€ 11.00
4
6967045301
ref: 4
ROD,REAR MASTER CYLINDER
€ 13.50
5
6969334300
ref: 5
NUT,MASTER CYLINDER
€ 1.50
6
6969145001
ref: 6
BOOT
6969145001
€ 6.50
7
5116270040
ref: 7
CIRCLIP
5116270040
€ 3.00
8
0711008305
ref: 8
BOLT, REAR (8X30)
0711008305
€ 3.00
9
0832211084
ref: 9
WASHER
0832211084
€ 1.50
10
0832131085
ref: 10
LOCK WASHER
€ 2.50
11-1
6974047001
ref: 11-1
E1, E2, E6, E22, E24
TANK ASSEMBLY,RESERVOIR
€ 41.00
11-2
6974047020
ref: 11-2
E4
RESERVOIR TANK ASSY
€ 41.00
12-1
5966918605
ref: 12-1
E1, E2, E6, E22, E24
CAP
€ 16.50
12-2
5966939110
ref: 12-2
E4
CAP
€ 16.00
13
5966818441
ref: 13
PLATE,DIAPHRAGM
5966818441
€ 3.50
14
5966718441
ref: 14
DIAPHRAGM
5966718441
€ 8.50
15
0940251602
ref: 15
CLAMP
0940251602
€ 6.50
16
0110706168
ref: 16
BOLT, UPPER
€ 3.00
17
0832121067
ref: 17
WASHER,LOCK
0832121067
€ 2.50
18
6973145300
ref: 18
HOSE,RESERVOIR TANK
€ 3.50
19
0940016302
ref: 19
CLAMP
0940016302
€ 4.50
20
6948049400
ref: 20
HOSE,REAR BRAKE
€ 107.00
21
0936010017
ref: 21
BOLT UNION
0936010017
€ 6.50
22
0916110009
ref: 22
WASHER(10X15X1.5)
0916110009
€ 2.00
