MUFFLER

GS850G 1984 (E) (E01 E02 E04 E06 E22 E24 E25)

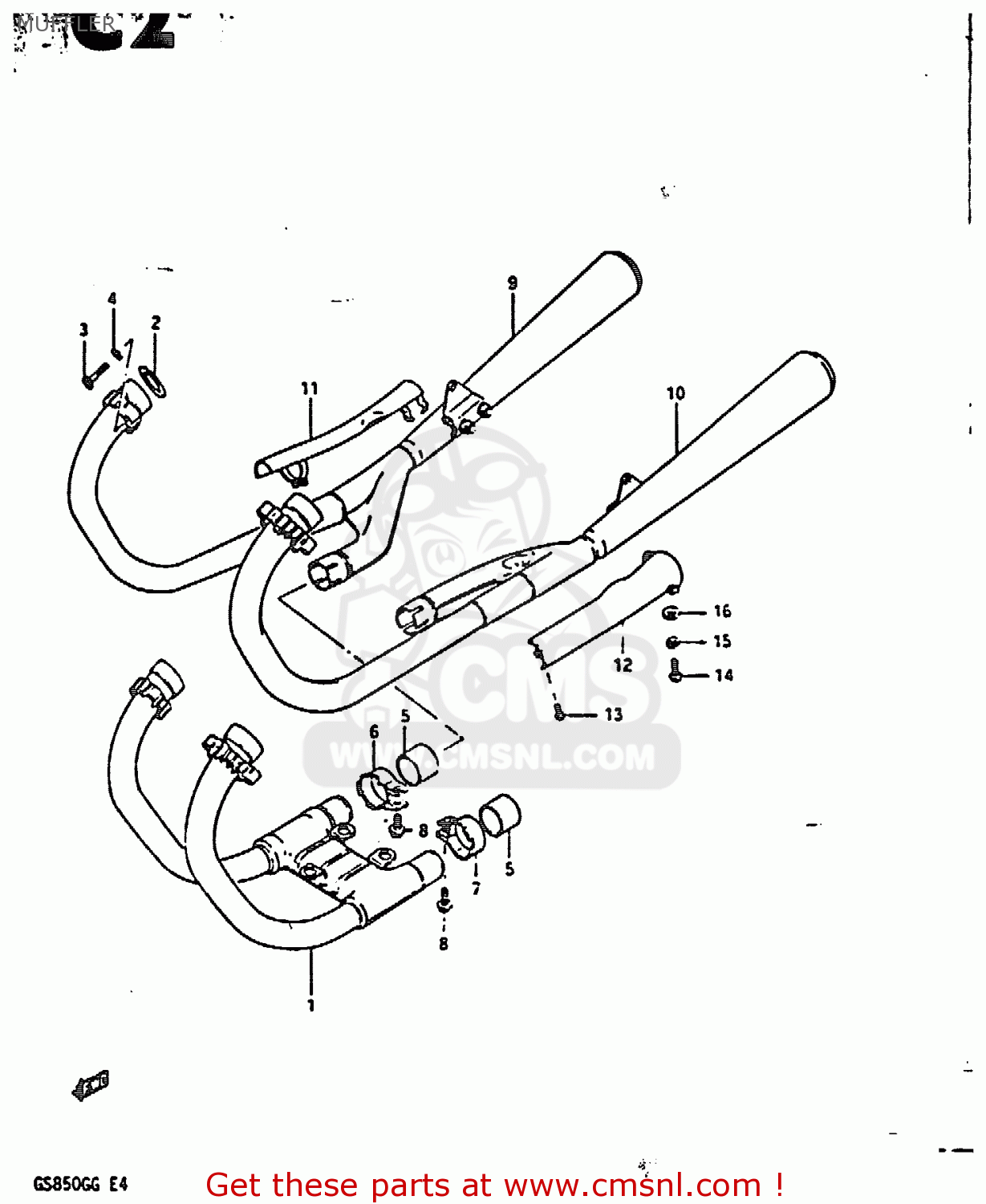

Muffler diagram GS850G 1984 (E) (E01 E02 E04 E06 E22 E24 E25)

prices are in EUR

ref

part #

description

quantity

1410045100
ref: 1
TO 14100-45101-H01

PIPE,EXHAUST

€ 219.50

1418111020
ref: 2

GASKET,EXHAUST PIPE (NAS)

€ 8.00

0110708408
ref: 3

BOLT 8X40

€ 3.00

0832121088
ref: 4

LOCK WASHER

€ 2.00

1477144020
ref: 5

CONNECTOR,MUFFLER

€ 35.00

1445944000
ref: 6

CLAMP,MUFFLER CONNECTOR,R

€ 14.00

1446944000
ref: 7

CLAMP,MUFFLER CONNECTOR,L

€ 13.00

0151708258
ref: 8

BOLT

€ 2.50

1430145122
ref: 9

MUFFLER ASSEMBLY

€ 333.00

1430245122
ref: 10

MUFFLER ASSEMBLY

€ 341.50

1478045010
ref: 11

COVER,MUFFLER

€ 44.00

1479045010
ref: 12

COVER,MUFFLER,LEFT

€ 31.50

0211205168
ref: 13

SCREW

€ 2.50

0211206108
ref: 14

SCREW

€ 1.50

0832121068
ref: 15

LOCK WASHER

€ 2.50

0832221068
ref: 16

WASHER

€ 2.00

MUFFLER

all assemblies
