BATTERY
GS850GL 1982 (Z) USA (E03)

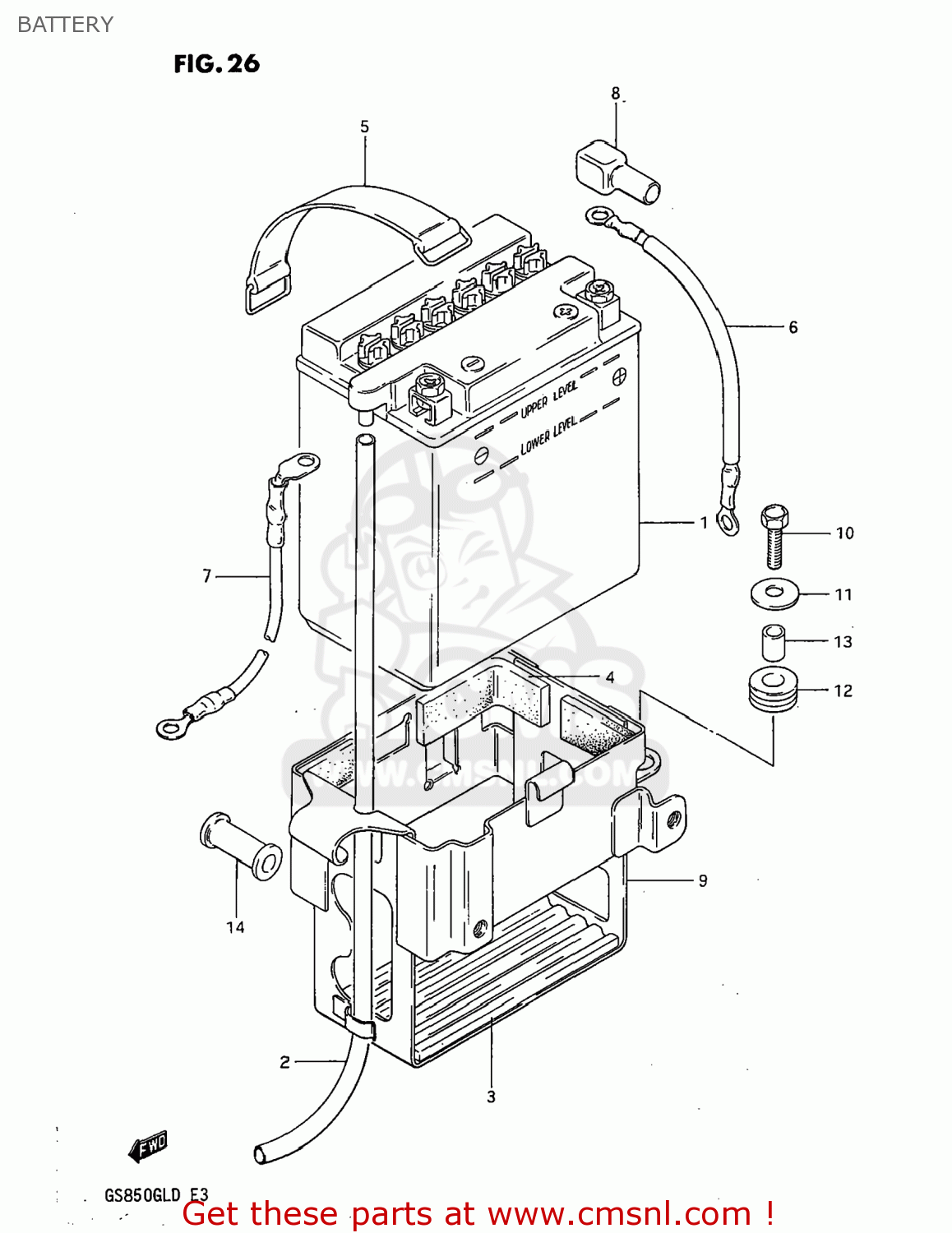

Battery diagram GS850GL 1982 (Z) USA (E03)
BATTERY GS850GL 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3361049210
ref: 1
BATTERY ASSY (12V)
€ 110.00
2
3368031003
ref: 2
33680-16A10
HOSE,BATTERY EXHAUST
€ 4.50
3
3365131000
ref: 3
PROTECTOR,BATTERY
€ 29.00
4
3365249000
ref: 4
PROTECTOR(20X90)X4
€ 2.00
5
0946200007
ref: 5
BAND
€ 5.00
6-1
3382044101
ref: 6-1
33820-44B01
WIRE,BATTERY PLUS
€ 19.50
6-2
3382049400
ref: 6-2
33860-05550
WIRE,BATTERY PLUS
€ 10.50
7-1
3385003201
ref: 7-1
LEAD WIRE,BATTERY(-)
€ 8.50
7-2
3385049400
ref: 7-2
LEAD WIRE,BATTERY(-)
€ 14.50
8
3362445000
ref: 8
CAP,TERMINAL
€ 5.50
9-1
4154045350
ref: 9-1
HOLDER,BATTERY
€ 30.00
9-2
4154049400
ref: 9-2
HOLDER,BATTERY
€ 0.00
10
0110706168
ref: 10
01500-06167
BOLT, UPPER
€ 3.00
11
0916006012
ref: 11
09160-06054
WASHER(6,5X22X1.6)
€ 2.00
12
0932008013
ref: 12
CUSHION
€ 4.00
13
0918006001
ref: 13
SPACER(6.2X8.3X5.7)
€ 2.00
14
0932008022
ref: 14
CUSHION
€ 3.50
