CYLINDER HEAD COVER (MODEL Z ~E.NO.155014)

GS850GL 1982 (Z) USA (E03)

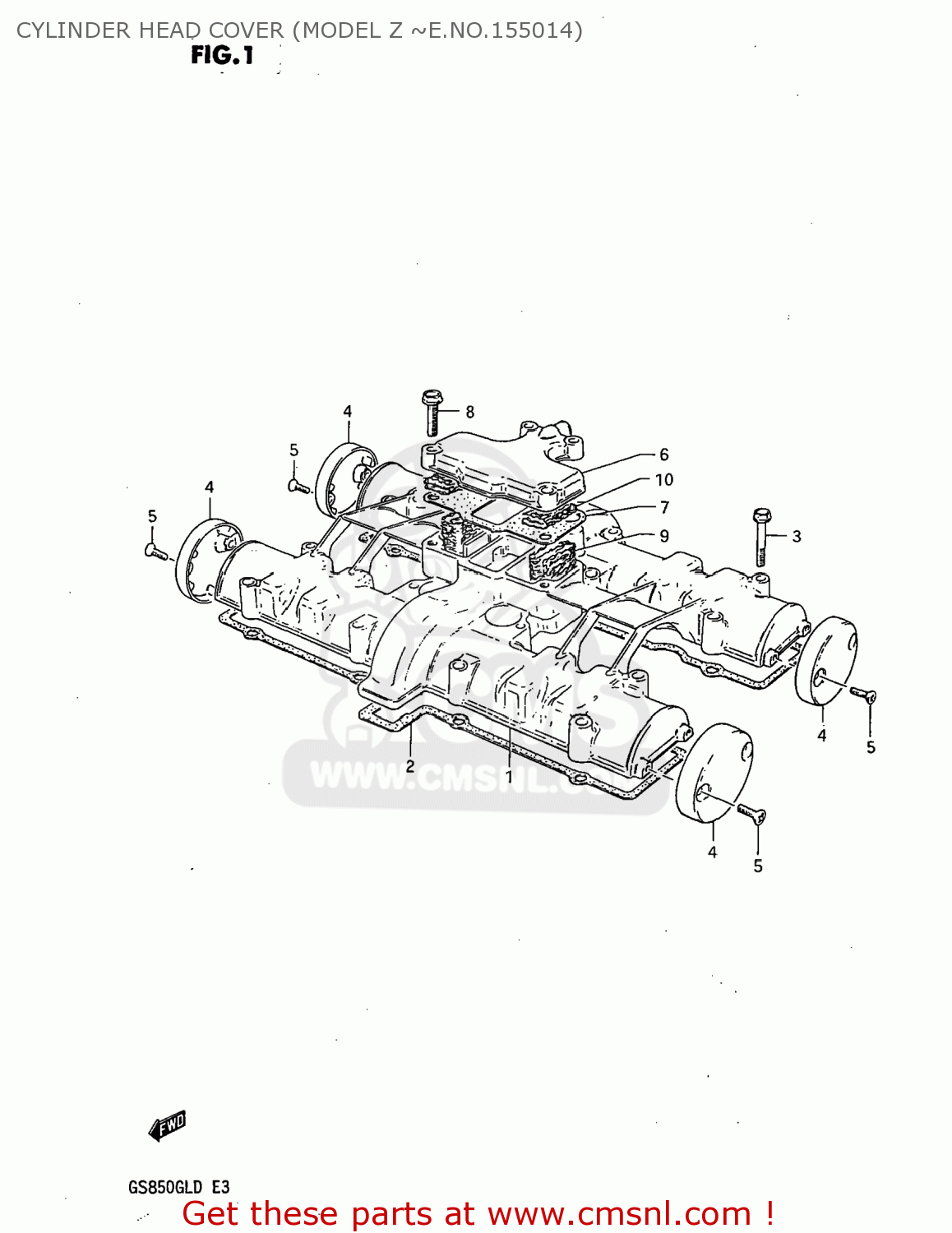

Cylinder head cover (model z ~e.no.155014) diagram GS850GL 1982 (Z) USA (E03)

CYLINDER HEAD COVER (MODEL Z ~E.NO.155014) GS850GL 1982 (Z) USA (E03)

CYLINDER HEAD COVER (MODEL Z ~E.NO.155014) GS850GL 1982 (Z) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1117145000
ref: 1

COVER,CYLINDER HEAD

€ 270.50

2

1117345003
ref: 2
11173-45004-H17

GASKET,CYLINDER HEAD COVER (MCA)

€ 227.50

3

0151706408
ref: 3
01550-06407

BOLT

€ 2.50

4

1117449000
ref: 4

CAP,CYLINDER HEAD COVER

€ 38.00

5

0912705013
ref: 5

SCREW(5X12)

€ 2.50

6

1117645010
ref: 6
11176-45011

COVER,BREATHER

€ 32.50

7

1117745000
ref: 7
11177-45000-H17

GASKET (MCA)

€ 9.00

8

0151706258
ref: 8
01550-06257

BOLT

€ 2.50

9

1118645000
ref: 9
11186-45001

COVER,BREATHER

€ 5.50

10

1118745000
ref: 10
11187-45001

SEPARATOR,OIL BREATHER

€ 6.50

10

1118745000
ref: 10
11187-45001

SEPARATOR,OIL BREATHER

€ 6.50
