HANDLEBAR (MODEL D)
GS850GL 1982 (Z) USA (E03)

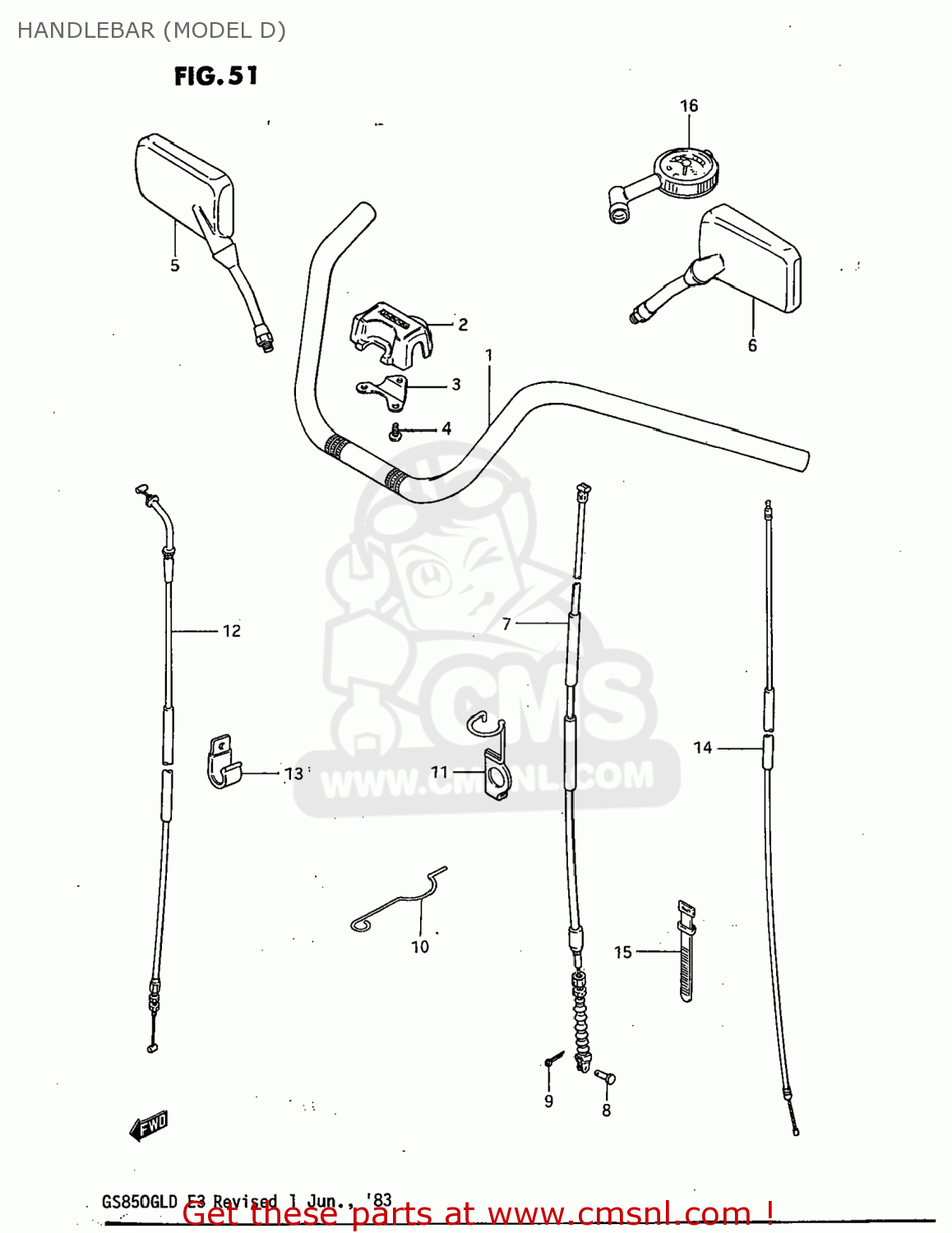

Handlebar (model d) diagram GS850GL 1982 (Z) USA (E03)
HANDLEBAR (MODEL D) GS850GL 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5611049120
ref: 1
HANDLEBAR
€ 24.50
2
5617149100
ref: 2
COVER,STEERING HEAD
€ 10.50
3
5617549100
ref: 3
BRACKET,STEERING HEAD
€ 2.50
4
0321104108
ref: 4
03211-0410B
SCREW
€ 2.00
5
5650047100
ref: 5
56500-47102
MIRROR ASSEMBLY,REAR VIEW
€ 66.00
6
5660047100
ref: 6
56600-47102
MIRROR ASSEMBLY,REAR VIEW
€ 52.00
7
5820045140
ref: 7
CABLE ASSY,CLUTCH
€ 39.00
8
0920006011
ref: 8
PIN(L:15)
€ 2.50
9
0411120158
ref: 9
04111-2015A
PIN
€ 1.50
10
5862145100
ref: 10
GUIDE,CABLE
€ 7.50
11
5862134400
ref: 11
GUIDE,CLUTCH CABLE
€ 4.50
12
5830045120
ref: 12
58300-45221
CABLE ASSEMBLY,THROTTLE
€ 29.50
13
0940300069
ref: 13
CLAMP
€ 8.50
14
5841045301
ref: 14
58410-49X00
CABLE,STARTER
€ 11.50
15
0940708401
ref: 15
09407-14403
CLAMP(L:80)
€ 2.50
16
9620041330
ref: 16
GAUGE ASSY,AIR PRESSURE
€ 77.50
