CRANKCASE (MODEL D)
GS850GL 1982 (Z) USA (E03)

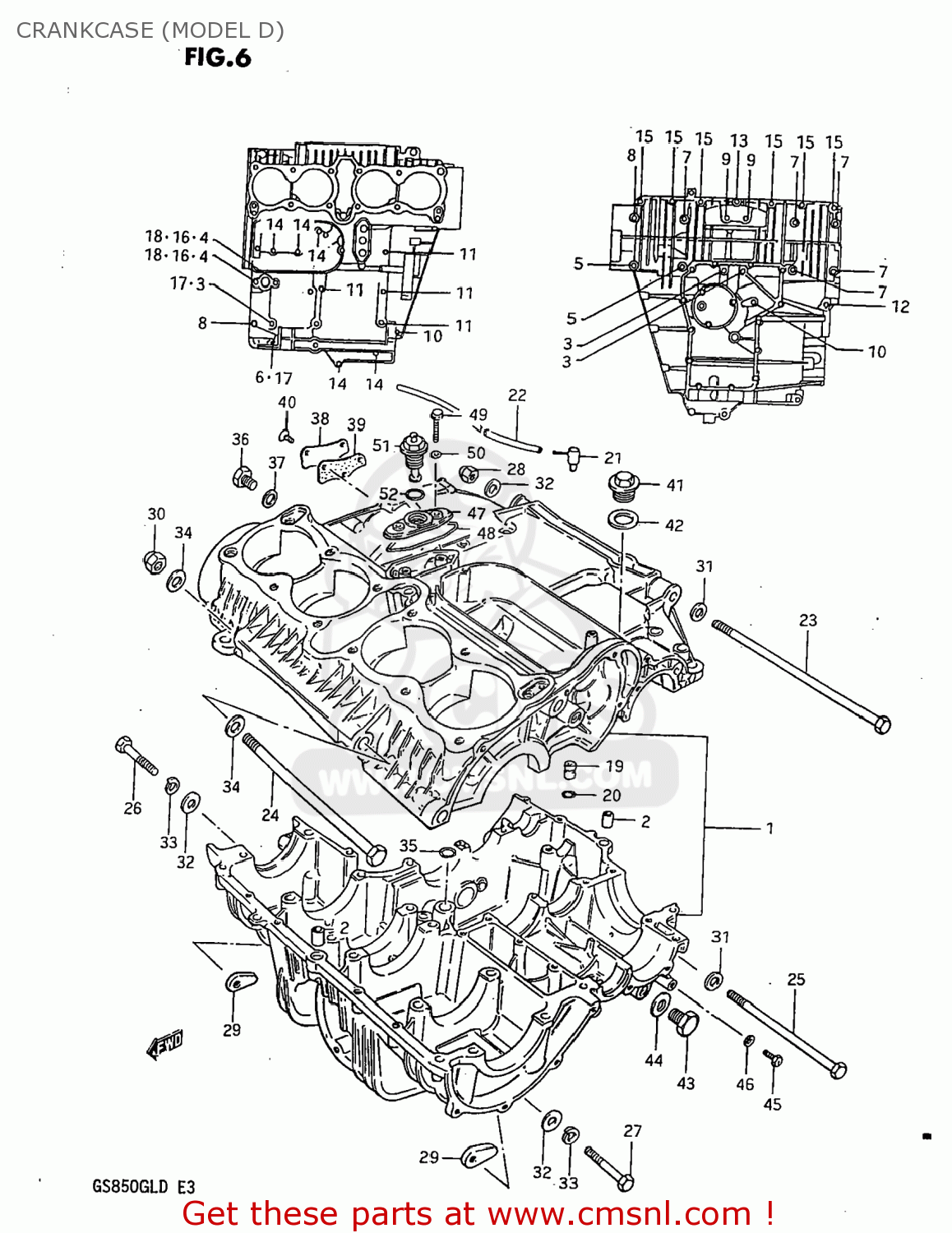

Crankcase (model d) diagram GS850GL 1982 (Z) USA (E03)
CRANKCASE (MODEL D) GS850GL 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130049860
ref: 1
11300-49861
CRANKCASE SET
€ 1,730.00
2
0920613001
ref: 2
04211-13189
PIN
€ 2.50
3
0910308094
ref: 3
09103-08182
BOLT
€ 4.50
4
0910308092
ref: 4
BOLT 8X110
€ 0.00
5
0910308061
ref: 5
09103-08230
BOLT
€ 3.50
6
0910308093
ref: 6
09103-08179
BOLT
€ 4.00
7
0151708905
ref: 7
01550-0890B
BOLT (8X90)
€ 3.50
8
0151708655
ref: 8
01550-0865A
BOLT (8X65)
€ 3.00
9
0151708605
ref: 9
01550-0860A
BOLT 8X60
€ 3.50
10
0151706905
ref: 10
01550-0690B
BOLT (6X90)
€ 3.50
11
0151706755
ref: 11
01550-0675A
BOLT (6X75)
€ 2.50
12
0151706555
ref: 12
01550-0655B
BOLT 6X55
€ 2.00
13
0151706505
ref: 13
01550-0650A
BOLT 6X50
€ 2.00
14
0151706455
ref: 14
01550-0645A
BOLT (6X45)
€ 2.50
15
0151706355
ref: 15
01550-0635A
BOLT
€ 2.50
16
0831311088
ref: 16
08313-10087
NUT
€ 2.50
17
0831616085
ref: 17
08316-1008B
NUT 8MM
€ 3.00
18
0916808008
ref: 18
09168-08016
GASKET 8.2X14X1 (NAS)
€ 1.00
19
0936405005
ref: 19
UNION
€ 3.00
20
0928003003
ref: 20
O RING(D:1.05,ID:3.1)
€ 2.50
21
2482145100
ref: 21
BPLUG,BEVEL GEAR BREATHER
€ 7.00
22
0934302009
ref: 22
09352-20503-600
HOSE
€ 12.00
23
0910010144
ref: 23
09100-10074
BOLT
€ 15.50
24
6121139000
ref: 24
61211-39002
SHAFT,REAR SWING ARM
€ 15.00
25
0910010137
ref: 25
09100-10078
BOLT
€ 10.50
26
0110710605
ref: 26
01500-1060A
BOLT (10X60)
€ 3.50
27
0110710505
ref: 27
01500-1050A
BOLT (10X50)
€ 7.00
28
0915910028
ref: 28
NUT (10MM)
€ 2.50
29
0915910020
ref: 29
NUT
€ 7.50
30
0831921125
ref: 30
08319-2112B
NUT
€ 3.50
31
0916010054
ref: 31
09160-10005
WASHER (10.5X20X3.2)
€ 2.00
32
0832211105
ref: 32
08322-0110A
WASHER
€ 2.50
33
0832121105
ref: 33
08321-0110A
LOCK WASHER
€ 3.00
34
0832211125
ref: 34
WASHER
€ 2.00
35
0928013001
ref: 35
O RING(D:3.2,ID:12.9)
€ 4.00
36
0924714012
ref: 36
09247-14026
PLUG (14X12)
€ 3.50
37
0916814004
ref: 37
GASKET(14X19.2X2) (NAS)
€ 2.50
38
1139445000
ref: 38
CAP,OIL GALLERY
€ 6.50
39
1149745000
ref: 39
11497-45000-H17
GASKET,OIL GALLERY (MCA)
€ 13.00
40
0212206168
ref: 40
02122-06167
SCREW
€ 2.00
41
0924720002
ref: 41
09248-20003
PLUG
€ 4.50
42
0916820004
ref: 42
09168-20003
GASKET
€ 1.50
43
0924714019
ref: 43
09247-14036
PLUG
€ 5.50
44
0916814004
ref: 44
GASKET(14X19.2X2) (NAS)
€ 2.50
45
0912806004
ref: 45
09128-06044
SCREW(6X10)
€ 1.50
46
0916806009
ref: 46
09168-06023
GASKET (NAS)
€ 2.00
47
1644545010
ref: 47
16445-45000
HOUSING,OIL PRESSURE SWITCH
€ 28.00
48
1644845000
ref: 48
O RING,PRESSURE SWITCH HOUSING
€ 10.50
49
0151706255
ref: 49
01550-0625A
BOLT
€ 2.50
50
0916806009
ref: 50
09168-06023
GASKET (NAS)
€ 2.00
51
3782045060
ref: 51
37820-45061
SWITCH ASSEMBLY
€ 30.00
52
0928019001
ref: 52
O RING(D:1.9,ID:18.8)
€ 1.50
