OIL PUMP - OIL FILTER
GS850GL 1982 (Z) USA (E03)

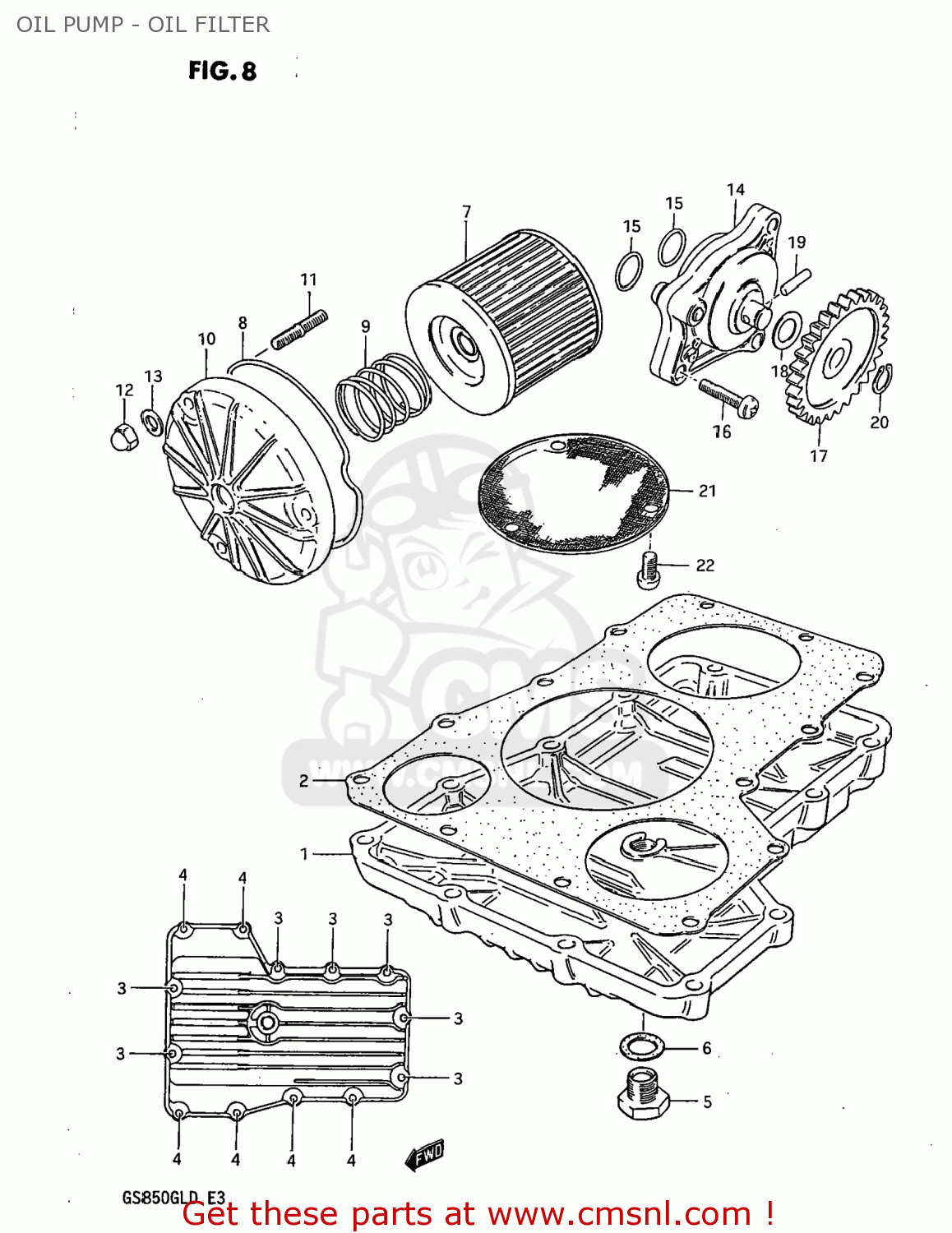

Oil pump - oil filter diagram GS850GL 1982 (Z) USA (E03)
OIL PUMP - OIL FILTER GS850GL 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1151145300
ref: 1-1
PAN,OIL
€ 72.50
1-2
1151149120
ref: 1-2
11511-45300
PAN,OIL
€ 72.50
2
1148945001
ref: 2
11489-45001-H17
GASKET,OIL PAN (MCA)
€ 15.50
3-1
0151706308
ref: 3-1
01550-06307
BOLT
€ 2.00
3-2
0151706305
ref: 3-2
01550-0630A
BOLT 6X30
€ 2.50
4-1
0151706258
ref: 4-1
01550-06257
BOLT
€ 2.50
4-2
0151706255
ref: 4-2
01550-0625A
BOLT
€ 2.50
5
0924714001
ref: 5
09247-14002
PLUG
€ 5.00
6
0916814004
ref: 6
GASKET(14X19.2X2) (NAS)
€ 2.50
7
1651045040
ref: 7
FILTER ASSY,ENGINE OIL
€ 7.50
8
1651845000
ref: 8
O RING,OIL FILTER CHAMBER CAP
€ 7.50
9
0944032004
ref: 9
SPRING
€ 13.50
10-1
1651245101
ref: 10-1
CAP,ENGINE OIL FILTER
€ 37.50
10-2
1651244410
ref: 10-2
16512-45D00
CAP,OIL FILTER
€ 47.00
11
0142106208
ref: 11
01421-0620A
STUD 6X20
€ 2.50
12
0831311068
ref: 12
08313-10067
NUT
€ 2.00
13
0832221068
ref: 13
08322-01067
WASHER
€ 2.00
14
1640049020
ref: 14
PUMP ASSEMBLY,ENGINE OIL
€ 134.00
15
0928013004
ref: 15
O RING(D:1.9,ID:13)
€ 2.50
16
0211206258
ref: 16
02112-06257
SCREW
€ 2.00
17
1633149000
ref: 17
GEAR,ENG OIL PUMP DRIVEN(NT:33
€ 84.50
18
0822110185
ref: 18
SHIM
€ 2.00
19
0926104009
ref: 19
PIN(4X15.8)
€ 1.50
20
0833131109
ref: 20
CIRCLIP
€ 2.00
21
1652045010
ref: 21
STRAINER,ENGINE OIL
€ 12.00
22
0211206128
ref: 22
02112-06127
SCREW 6X12
€ 2.00
