ELECTRICAL (MODEL Z)
GS850GL 1983 (D) USA (E03)

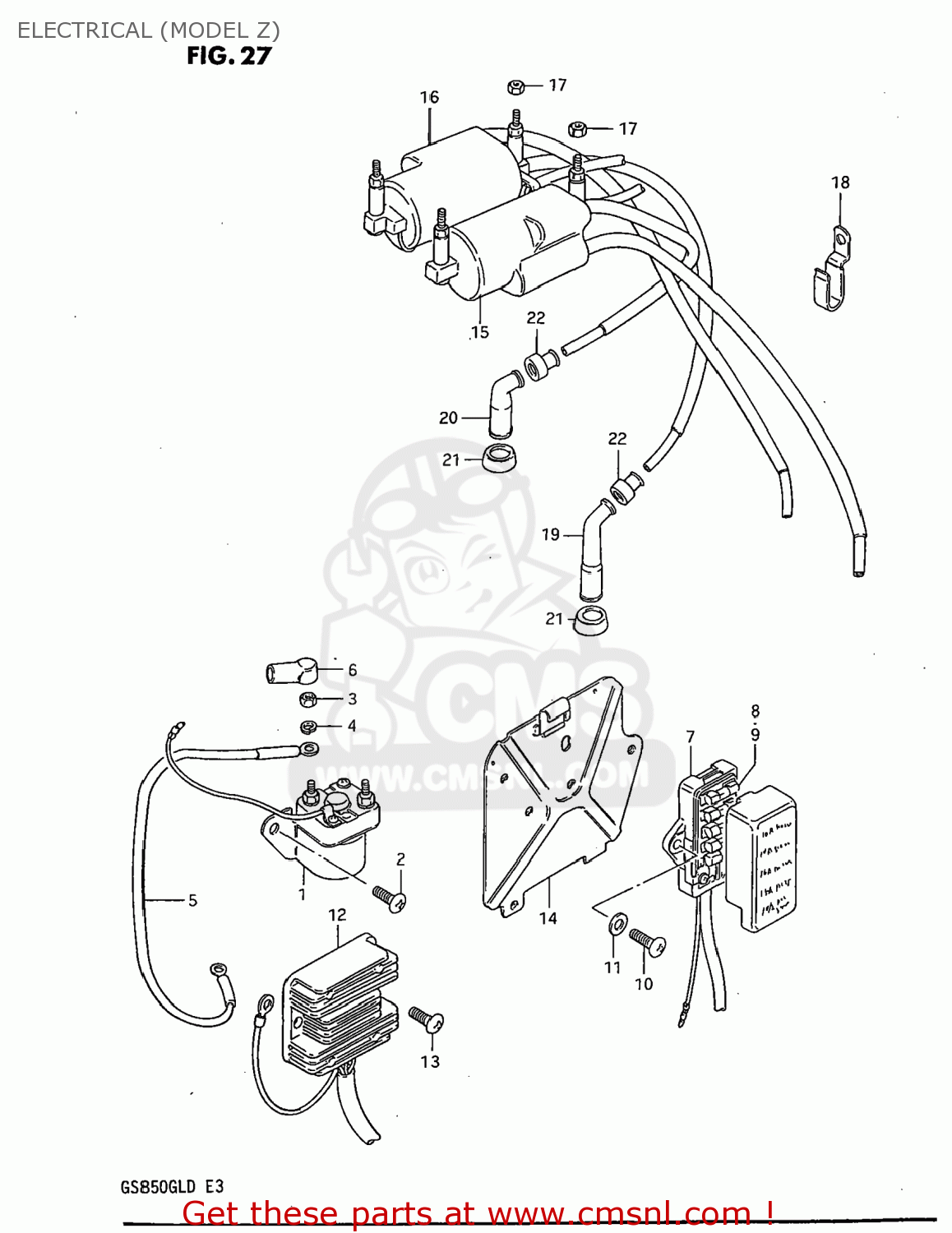

Electrical (model z) diagram GS850GL 1983 (D) USA (E03)
ELECTRICAL (MODEL Z) GS850GL 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180037020
ref: 1
RELAY ASSY,STARTING MOTOR
€ 105.00
2
0211206108
ref: 2
02112-06107
SCREW
€ 1.50
3
0831022068
ref: 3
08310-00067
NUT 6MM
€ 2.50
4
0832121068
ref: 4
08321-01067
LOCK WASHER
€ 2.50
5
3385010300
ref: 5
33850-00A01
WIRE,STARTER MOTOR LEAD
€ 24.00
6
3186135100
ref: 6
31861-48B10
CAP,STARTER RELAY
€ 4.50
7
3674049100
ref: 7
36740-49X01
BOX ASSEMBLY,FUSE
€ 39.00
8
0948110001
ref: 8
FUSE(10A)
€ 2.00
9
0948115001
ref: 9
FUSE(15A)
€ 3.00
10
0211206128
ref: 10
02112-06127
SCREW 6X12
€ 2.00
11
0832221068
ref: 11
08322-01067
WASHER
€ 2.00
12
3280049310
ref: 12
32800-49X50
RECTIFIER ASSEMBLY
€ 397.00
13
0211206128
ref: 13
02112-06127
SCREW 6X12
€ 2.00
14
4741045300
ref: 14
HOLDER COMP,ELECTRONIC PARTS
€ 7.00
15
3341045110
ref: 15
33410-45112
COIL ASSEMBLY,IGNITION
€ 133.50
16
3342045110
ref: 16
33410-45112
COIL ASSEMBLY,IGNITION
€ 133.50
17
0831011068
ref: 17
08310-00067
NUT
€ 2.50
18
0940306307
ref: 18
CLAMP
€ 4.50
19
3351045010
ref: 19
CAP ASSY,SPARK PLUG
€ 23.00
20
3351043010
ref: 20
CAP,SPARK PLUG
€ 11.50
21
3354169010
ref: 21
SEAL,SPARK PLUG
€ 5.00
22
3354298000
ref: 22
33542-38B00
SEAL,SPARK PLU
€ 4.50
22
3354298000
ref: 22
33542-38B00
SEAL,SPARK PLU
€ 4.50
