FRONT WHEEL
GS850GL 1983 (D) USA (E03)

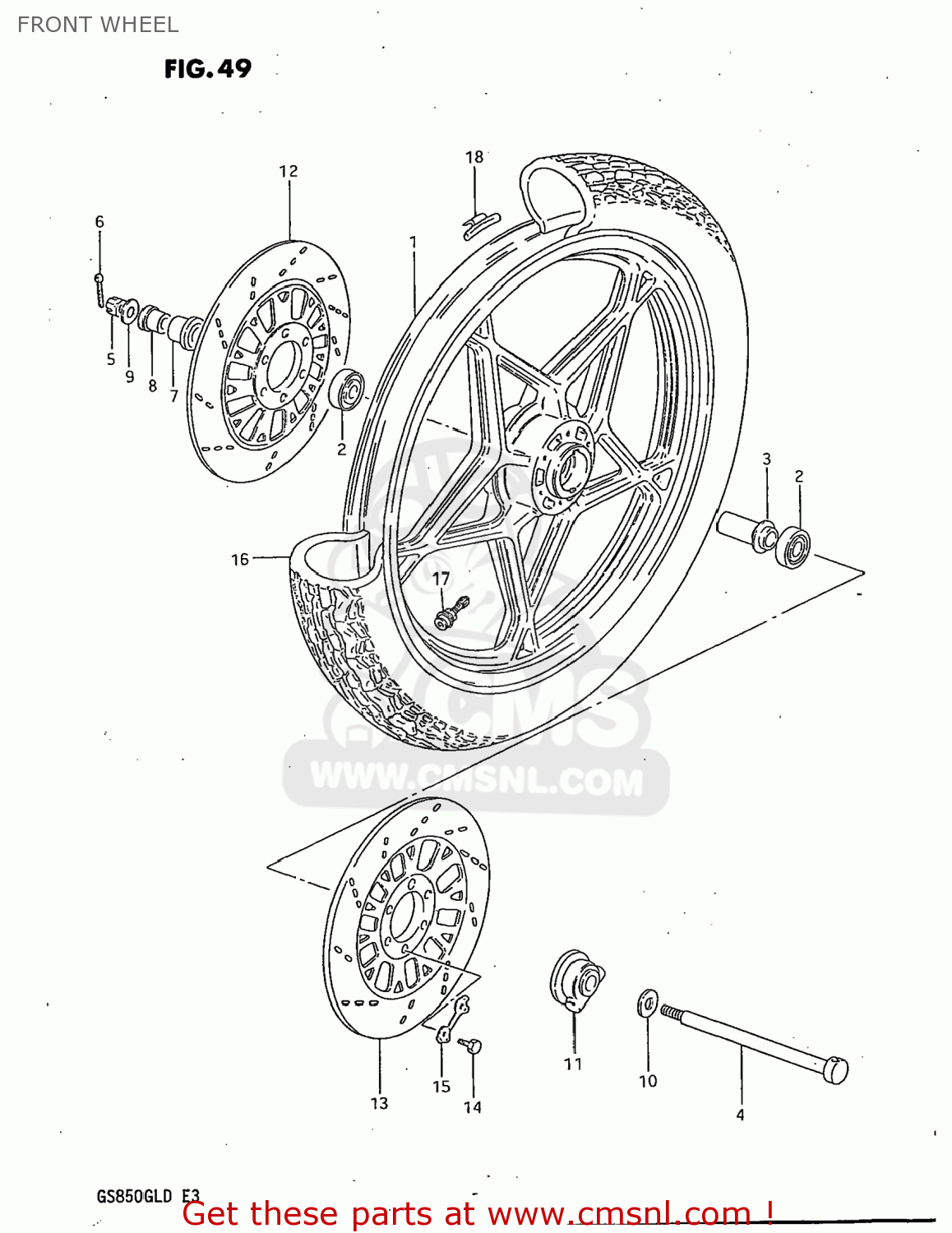

Front wheel diagram GS850GL 1983 (D) USA (E03)
FRONT WHEEL GS850GL 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5411145300291
ref: 1
CASTING WHEEL,FRONT 1.85
€ 518.00
2
0812363027
ref: 2
BEARING
€ 19.00
3
5473018400
ref: 3
SPACER,FR HUB BEARING
€ 13.00
4
5471149000
ref: 4
AXLE,FR
€ 79.50
5
0831431128
ref: 5
08314-3112A
NUT 12MM
€ 2.00
6
0411130308
ref: 6
04111-3030A
COTTER PIN
€ 1.50
7
5474018402
ref: 7
SPACER,FR AXLE,R
€ 18.50
8
5474149101
ref: 8
SPACER
€ 14.00
9
0832221128
ref: 9
08322-01127
WASHER
€ 2.00
10
0916015002
ref: 10
WASHER(15.5X26X2.3)
€ 2.00
11
5460049100
ref: 11
BOX ASSY,SPEEDOMETER GEAR
€ 90.00
12
5921145250
ref: 12
DISC,FR BRAKE,R
€ 149.00
13
5922145250
ref: 13
DISC,FR BRAKE,L
€ 149.00
14
0910008140
ref: 14
BOLT(8X25)
€ 2.00
15
0916908016
ref: 15
WASHER
€ 3.50
16-1
5510045330
ref: 16-1
TIRE,FRONT
€ 117.50
16-2
5510045350
ref: 16-2
TIRE,FRONT
€ 136.50
17
5522045100
ref: 17
43130-24A40
VALVE ASSEMBLY,WHEEL RIM,J
€ 15.50
18-1
5541145100
ref: 18-1
55412-17G00
BALANCER,WHEEL
€ 7.00
18-2
5541245100
ref: 18-2
BALANCER,WHEEL
€ 4.00
18-3
5541345100
ref: 18-3
55411-00A00-10V
BALANCER,WHEEL
€ 6.50
