REAR SWINGING ARM (MODEL D)
GS850GL 1983 (D) USA (E03)

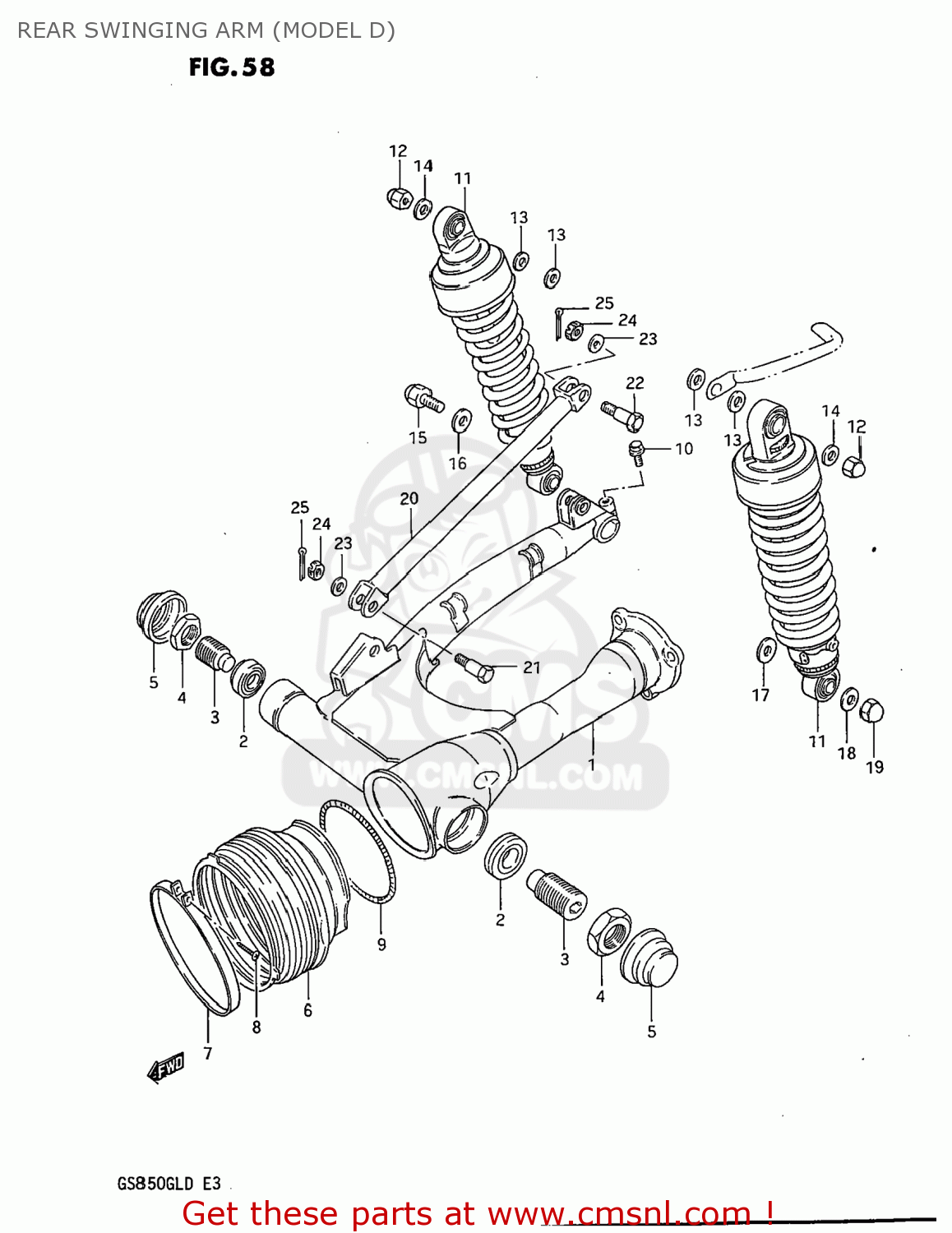

Rear swinging arm (model d) diagram GS850GL 1983 (D) USA (E03)
REAR SWINGING ARM (MODEL D) GS850GL 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6110045870019
ref: 1
SWING ARM SET,REAR (B
€ 413.50
2
0926517012
ref: 2
BEARING(17X40X13.25)
€ 35.00
3
6121345101
ref: 3
BOLT,REAR SWING ARM PIVOT
€ 16.00
4
0914024007
ref: 4
NUT
€ 4.50
5
6122245100
ref: 5
CAP,REAR SWING ARM PIVOT
€ 9.50
6
6137245300
ref: 6
BOOT,PROPELLER SHAFT
€ 25.50
7
0940200304
ref: 7
09402-00303
CLAMP
€ 5.00
8
0321104255
ref: 8
03211-0425B
SCREW 4X25
€ 2.00
9
6137334300
ref: 9
61373-3430V
SPRING,PROPELLER SHAFT
€ 6.50
10
0151708258
ref: 10
01550-08257
BOLT
€ 2.50
11
6210045310
ref: 11
ABSORBER ASSEMBLY,REAR SHOCK
€ 168.00
12
0914510001
ref: 12
NUT
€ 2.50
13
0832211128
ref: 13
08322-01127
WASHER
€ 2.00
14
0916010001
ref: 14
09160-10093
WASHER
€ 2.00
15
0910412014
ref: 15
BOLT 12X33
€ 4.00
16
0916012004
ref: 16
09160-12088
WASHER (12.5X24X1.6)
€ 2.00
17
0832211128
ref: 17
08322-01127
WASHER
€ 2.00
18
0916010001
ref: 18
09160-10093
WASHER
€ 2.00
19
0831311108
ref: 19
08313-10107
NUT, LOWER LH
€ 2.50
20
6431045300019
ref: 20
TORQUE LINK,REAR
€ 16.50
21
0911110011
ref: 21
09111-10022-XC0
BOLT
€ 8.00
22
0910110017
ref: 22
BOLT(10X39)
€ 5.00
23
0832211108
ref: 23
08322-01107
WASHER
€ 2.50
24
0831441108
ref: 24
08314-4010B
NUT
€ 2.50
25
0411120208
ref: 25
04111-2020A
PIN 20X20
€ 1.50
