STARTER CLUTCH
GS850GL 1983 (D) USA (E03)

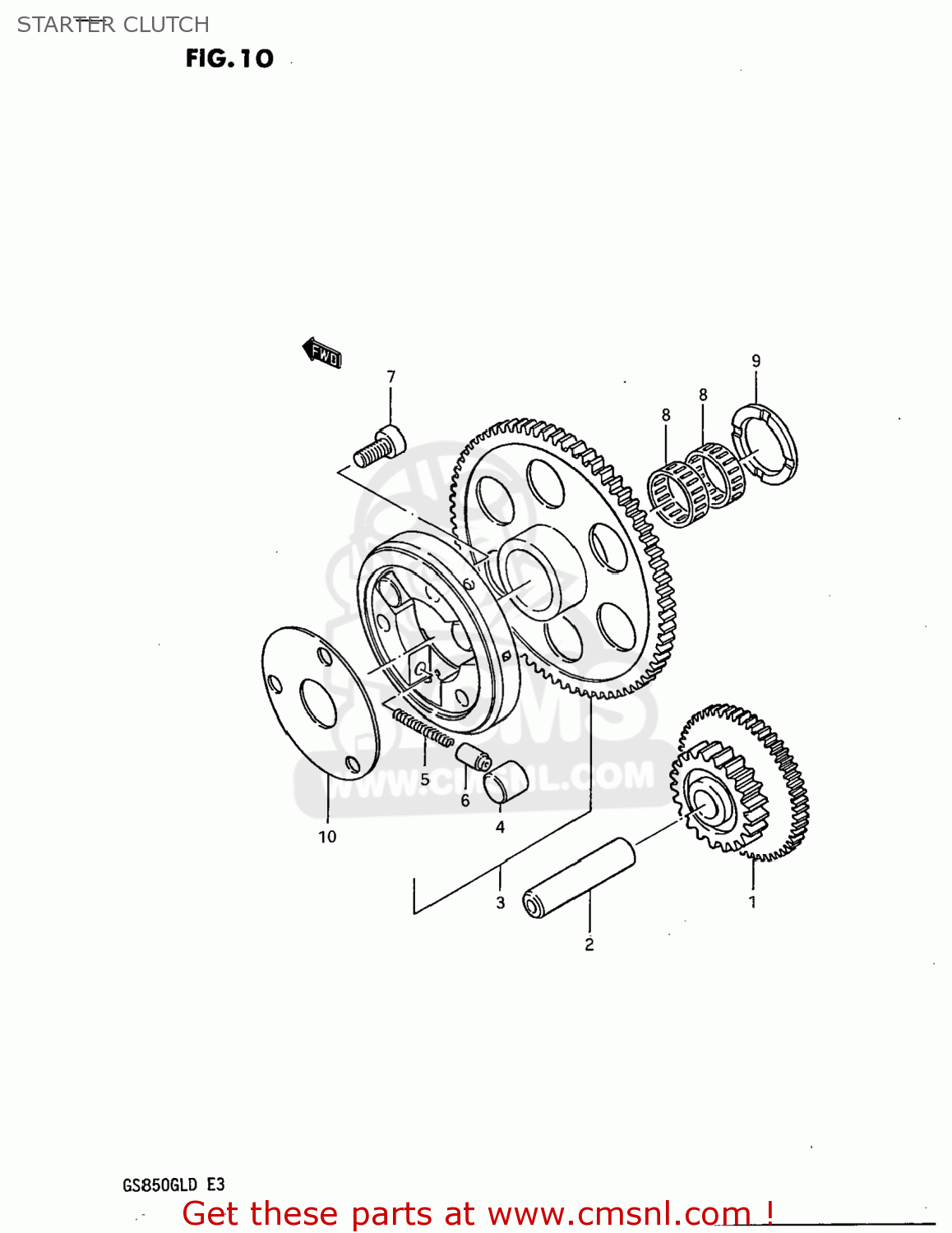

Starter clutch diagram GS850GL 1983 (D) USA (E03)
STARTER CLUTCH GS850GL 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1261145110
ref: 1
GEAR,STARTER IDLE
€ 46.00
2
0920613009
ref: 2
PIN(7.4X13X61)
€ 11.00
3
1260045820
ref: 3
12600-45821
CLUTCH SET,STARTER
€ 216.50
4
0926115001
ref: 4
ROLLER(15X13)
€ 3.50
5
0944004015
ref: 5
SPRING
€ 2.50
6
1263331000
ref: 6
PIECE,PUSH
€ 9.00
7
0910608043
ref: 7
07130-0816A
BOLT
€ 3.00
8
0926325020
ref: 8
BEARING(25X29X9.9)
€ 13.50
9
0916025019
ref: 9
WASHER(25X38X2.5)
€ 10.00
10
1264945000
ref: 10
SHIM,STARTER CLUTCH HUB
€ 7.00
