HANDLEBAR (MODEL Z)

GS850GL 1983 (D) USA (E03)

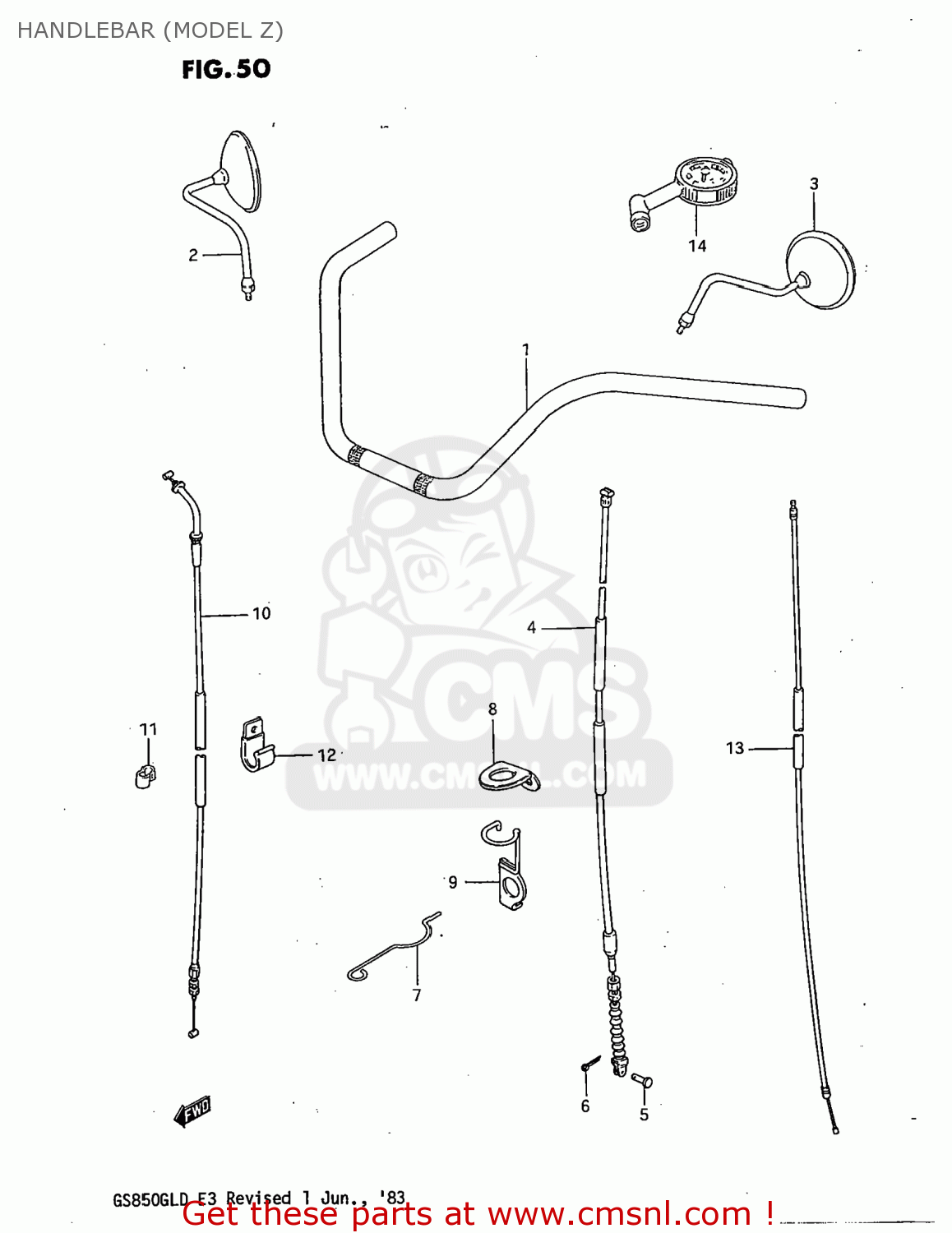

Handlebar (model z) diagram GS850GL 1983 (D) USA (E03)

HANDLEBAR (MODEL Z) GS850GL 1983 (D) USA (E03)

HANDLEBAR (MODEL Z) GS850GL 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5611045160
ref: 1
56110-49120

HANDLEBAR

€ 24.50

2

5650044200
ref: 2
56500-44201

MIRROR ASSEMBLY,RIGHT

€ 72.00

3

5660044200
ref: 3
56600-44201

MIRROR ASSEMBLY,LEFT

€ 72.00

4

5820045140
ref: 4

CABLE ASSY,CLUTCH

€ 39.00

5

0920006011
ref: 5

PIN(L:15)

€ 2.50

6

0411120158
ref: 6
04111-2015A

PIN

€ 1.50

7

5862145100
ref: 7

GUIDE,CABLE

€ 7.50

8

5924345010
ref: 8

GUIDE,BRAKE HOSE

€ 8.50

9

5862134400
ref: 9

GUIDE,CLUTCH CABLE

€ 4.50

10

5830045120
ref: 10
58300-45221

CABLE ASSEMBLY,THROTTLE

€ 29.50

11

0940800002
ref: 11

CLIP

€ 2.00

12

0940300069
ref: 12

CLAMP

€ 8.50

13

5841045300
ref: 13
58410-49X00

CABLE,STARTER

€ 11.50

14

9620041330
ref: 14

GAUGE ASSY,AIR PRESSURE

€ 77.50

14

9620041330
ref: 14

GAUGE ASSY,AIR PRESSURE

€ 77.50
