ALTERNATOR

GSF1200 1996 (T) (E02 E04 E22 E25 E34)

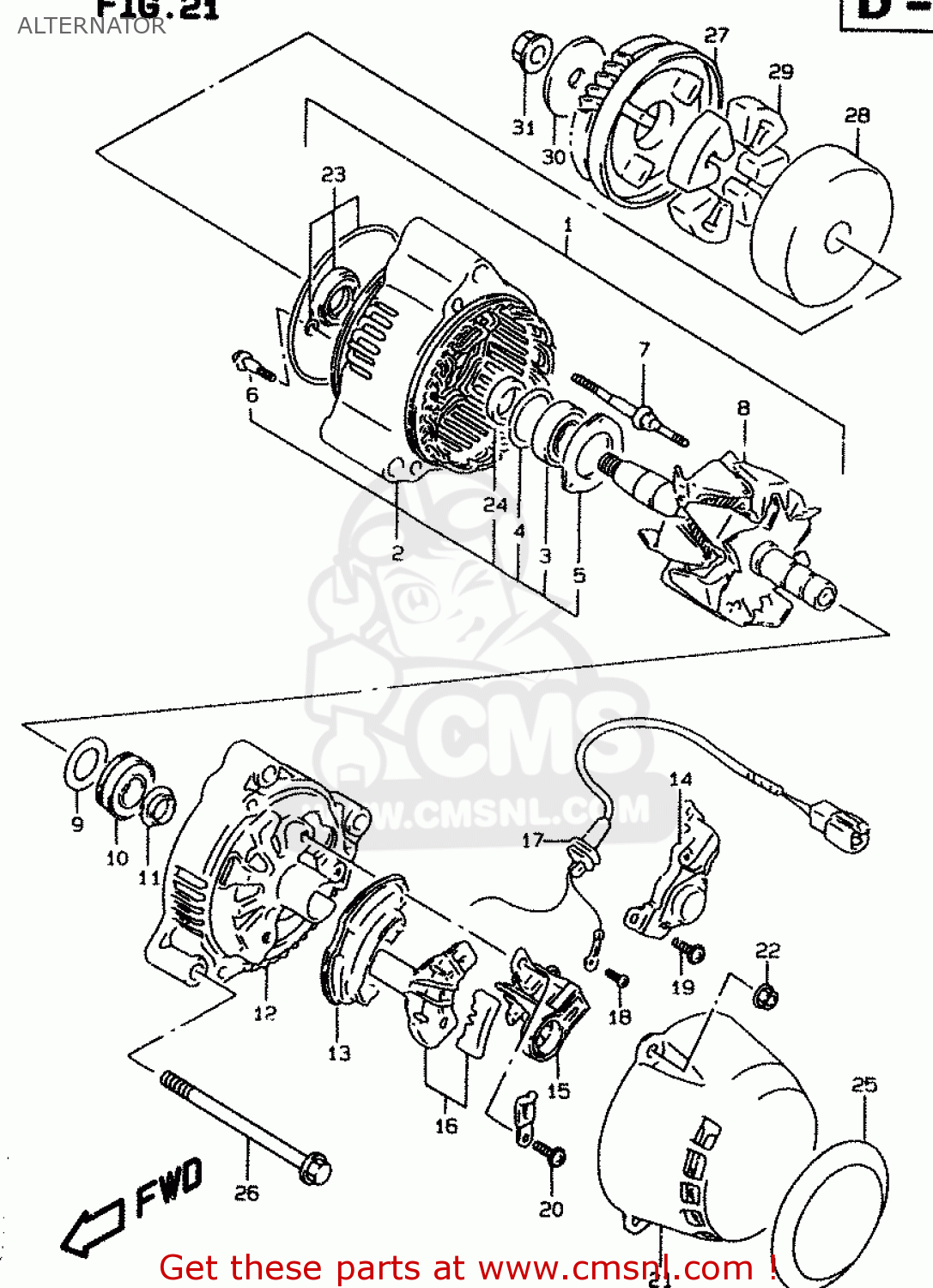

Alternator diagram GSF1200 1996 (T) (E02 E04 E22 E25 E34)

ALTERNATOR GSF1200 1996 (T) (E02 E04 E22 E25 E34)

ALTERNATOR GSF1200 1996 (T) (E02 E04 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

3140017C04
ref: 1
MODEL T/V/W

ALTERNATOR ASSY

€ 1,063.50

1

3140019C10
ref: 1
MODEL X

ALTERNATOR ASSEMBLY

€ 1,063.50

2

3158048B00
ref: 2

FRAME,DRIVE END

€ 248.50

3

3161206B00
ref: 3

BEARING

€ 36.50

4

3161348B00
ref: 4

COVER,BEARING

€ 5.50

5

3158548B00
ref: 5

RETAINER

€ 9.00

6

3158648B00
ref: 6

SCREW,BEARING RETAINER

€ 3.50

7

3158785250
ref: 7

STUD BOLT

€ 9.00

8

3171048B04
ref: 8
MODEL T/V/W

ALTERNATOR ASSY

€ 277.50

8

3171019C10
ref: 8
MODEL X

ROTOR ASSY

€ 283.00

9

3161382610
ref: 9

COVER,BEARING

€ 3.50

10

3161248B00
ref: 10

BEARING

€ 42.50

11

3161327A10
ref: 11

COVER(2)

€ 5.50

12

3161148B00
ref: 12

FRAME,END

€ 83.00

13

3162127A00
ref: 13

HOLDER,RECTIFIER

€ 225.50

14

3250027A00
ref: 14

REGULATOR

€ 321.00

15

3165648B00
ref: 15

HOLDER,BRUSH

€ 55.50

16

3168717E00
ref: 16

COVER,RECTIFIER

€ 4.50

17

3148048B00
ref: 17

WIRE,LEAD

€ 22.00

18

0211204063
ref: 18

SCREW 4X6

€ 2.00

19

3168827A00
ref: 19

SCREW

€ 2.50

20

3168827A00
ref: 20

SCREW

€ 2.50

21

3161448B00
ref: 21

COVER

€ 67.50

22

0831610053
ref: 22

NUT

€ 2.50

23

3178027X50
ref: 23

SERVICE KIT(A)

€ 47.50

24

3177606B00
ref: 24

SPACER

€ 22.00

25

3161527E00
ref: 25

PLATE,ALTERNATOR ABSORBER

€ 10.00

26

0155008903
ref: 26

BOLT

€ 3.50

27

2273027A04
ref: 27
MODEL T/V, <-22730-2

GEAR,GENERATOR DRIVEN

€ 183.50

27

2273027A05
ref: 27
MODEL W/X

GEAR,GENERATOR DRIVEN

€ 183.50

28

2273327A05
ref: 28
<-22733-27A04

HOUSING,GENERATOR GEAR DAMPER

€ 95.00

29

2123106B00
ref: 29

DAMPER,GENERATOR DRIVEN

€ 5.50

30

0821110283
ref: 30

WASHER

€ 3.00

31

0831620103
ref: 31

NUT

€ 3.50
