STARTER CLUTCH

GSF1200 1996 (T) (E02 E04 E22 E25 E34)

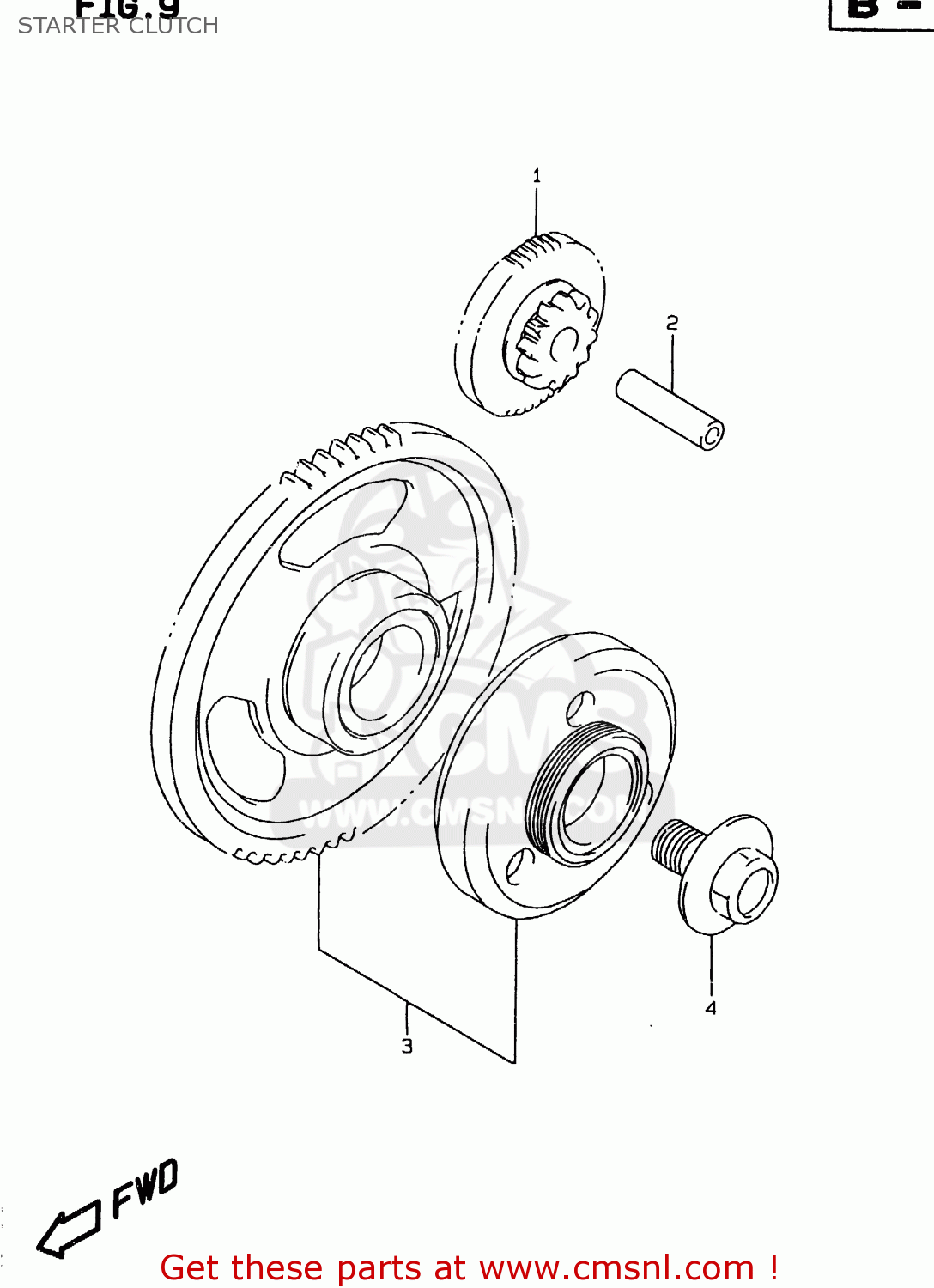

Starter clutch diagram GSF1200 1996 (T) (E02 E04 E22 E25 E34)

STARTER CLUTCH GSF1200 1996 (T) (E02 E04 E22 E25 E34)

STARTER CLUTCH GSF1200 1996 (T) (E02 E04 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

1261106B00
ref: 1

GEAR,STARTER IDLE(NT:12,53)

€ 68.50

2

0920611014
ref: 2

PIN(7X11X42)

€ 8.00

3

1260048811
ref: 3

CLUTCH SET,STARTER

€ 377.50

4

0910314005
ref: 4

BOLT(14X21)

€ 17.00
