CRANKCASE COVER

GSF1200 1996 (T) (E02 E04 E22 E25 E34)

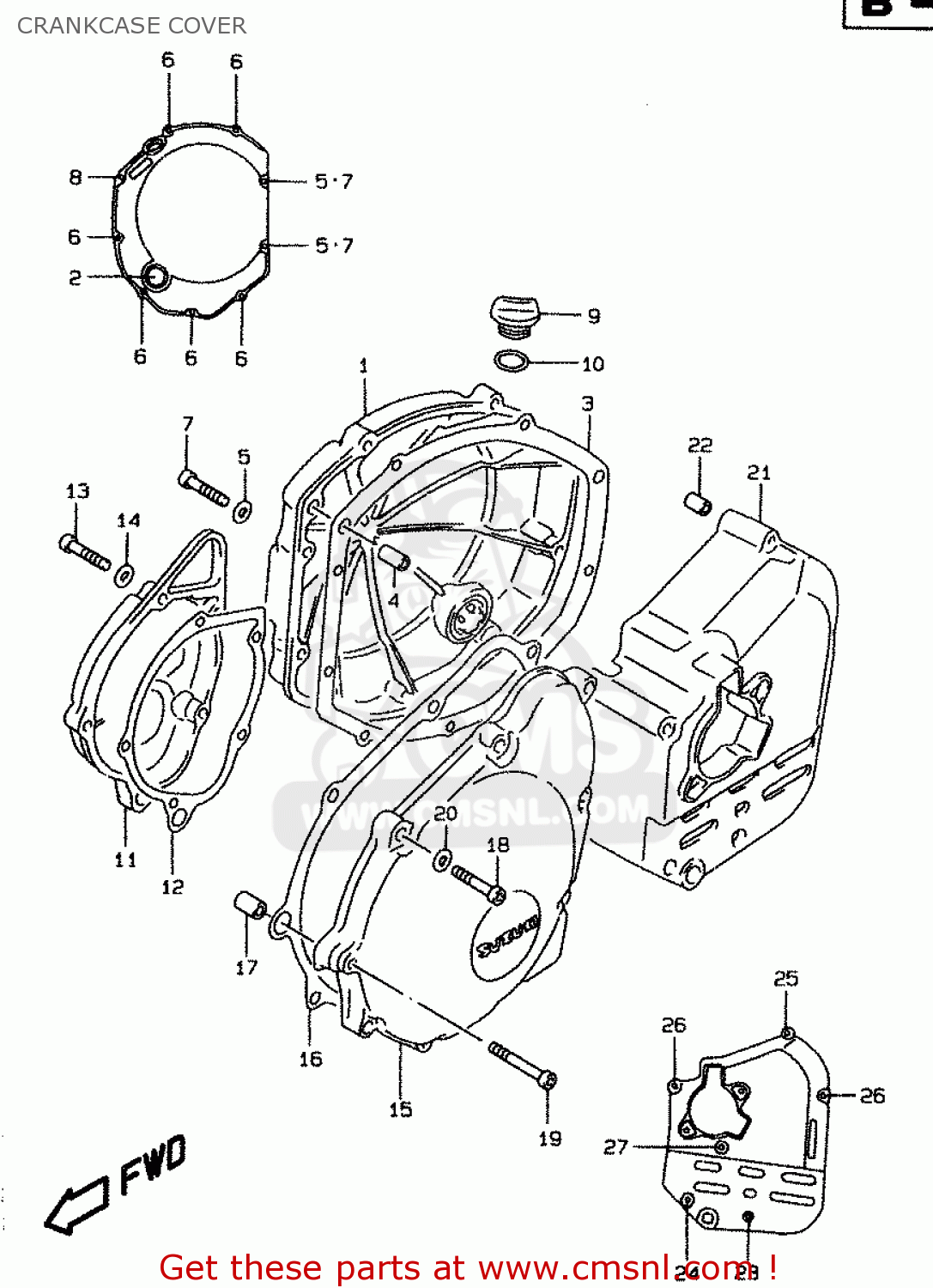

Crankcase cover diagram GSF1200 1996 (T) (E02 E04 E22 E25 E34)

CRANKCASE COVER GSF1200 1996 (T) (E02 E04 E22 E25 E34)

CRANKCASE COVER GSF1200 1996 (T) (E02 E04 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

1134026E20
ref: 1

COVER,CLUTCH

€ 237.00

2

1197133210
ref: 2

LENS,OIL LEVEL CHECK

€ 13.50

3

1148227A20
ref: 3

GASKET,CL COVER (NAS)

€ 18.00

4

0421109189
ref: 4

PIN

€ 2.00

5

0916806024
ref: 5

GASKET(5.8X11X1.2) (NAS)

€ 2.00

6

0713006253
ref: 6

BOLT,CL.COVER

€ 3.00

7

0713006303
ref: 7

BOLT

€ 3.00

8

0713006353
ref: 8

BOLT

€ 3.50

9

0925920008
ref: 9

PLUG

€ 6.50

10

0928017003
ref: 10

O RING(D:3.1,ID:16.8)

€ 2.00

11

1138126E20
ref: 11

COVER,SIGNAL GENERATOR

€ 60.00

12

1149127A30
ref: 12

GASKET,SIGNAL GEN COVER (NAS)

€ 8.00

13

0910606082
ref: 13

BOLT(6X22)

€ 3.00

14

0916806024
ref: 14

GASKET(5.8X11X1.2) (NAS)

€ 2.00

15

1135126E20
ref: 15

COVER,STARTER GEAR

€ 156.50

16

1148348B20
ref: 16

GASKET,STARTER GEAR COVER (NAS)

€ 13.00

17

0920611017
ref: 17

PIN(8.4X11X20)

€ 6.50

18

0713006253
ref: 18

BOLT,CL.COVER

€ 3.00

19

0713006403
ref: 19

BOLT

€ 3.50

20

0916806024
ref: 20

GASKET(5.8X11X1.2) (NAS)

€ 2.00

21

1136027E00
ref: 21

COVER COMP,ENGINE SPROCKET

€ 217.00

22

0421109129
ref: 22

PIN

€ 2.00

23

0713006453
ref: 23

BOLT

€ 2.50

24

0713006353
ref: 24

BOLT

€ 3.50

25

0713006553
ref: 25

BOLT

€ 2.50

26

0713006703
ref: 26

BOLT

€ 4.00

27

0713006753
ref: 27

BOLT

€ 3.00
