CAM SHAFT / VALVE

GSF1200 1996 (T) (E02 E04 E22 E25 E34)

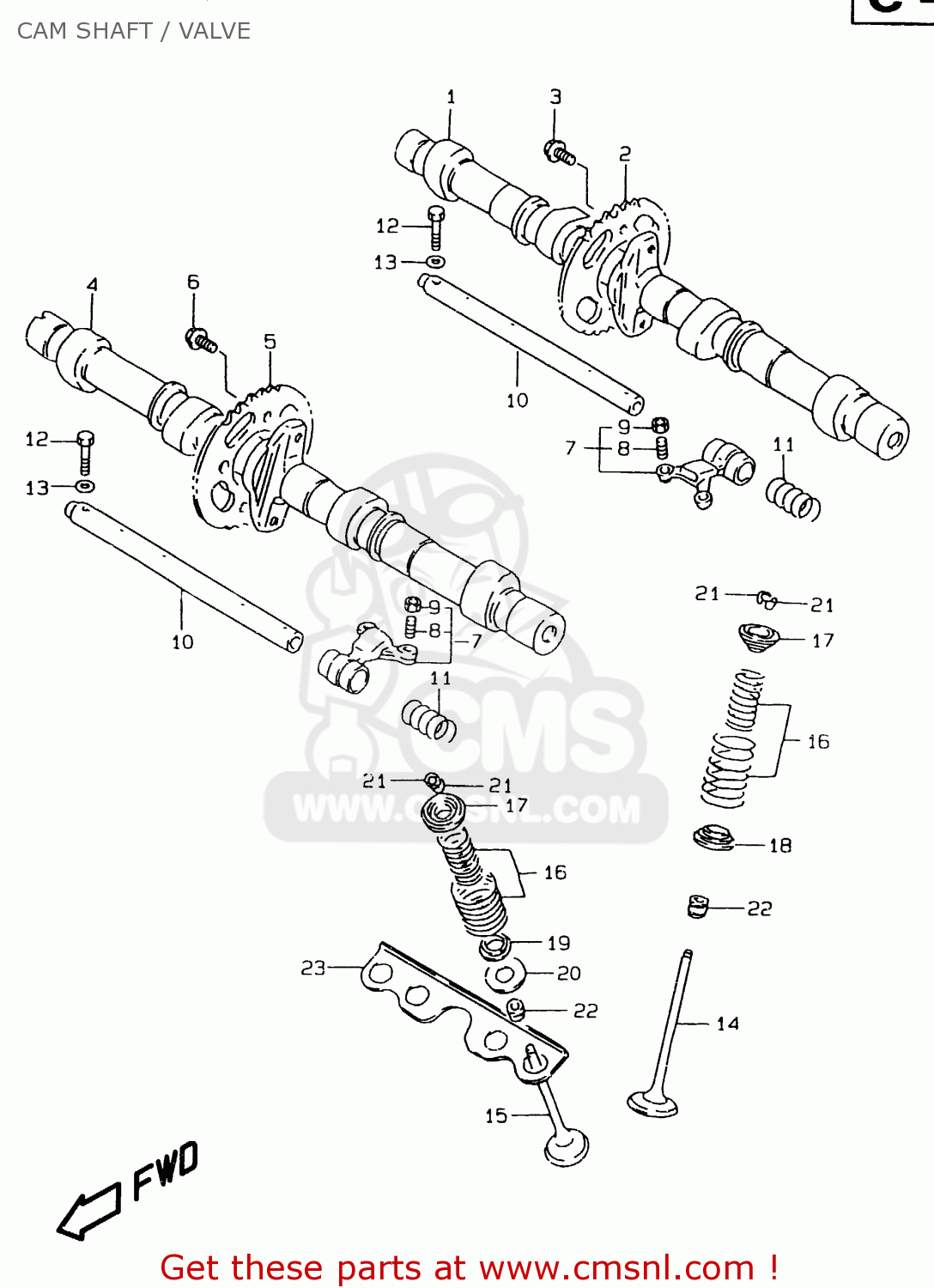

Cam shaft / valve diagram GSF1200 1996 (T) (E02 E04 E22 E25 E34)

CAM SHAFT / VALVE GSF1200 1996 (T) (E02 E04 E22 E25 E34)

CAM SHAFT / VALVE GSF1200 1996 (T) (E02 E04 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

1271126D00
ref: 1

CAMSHAFT,INTAKE

€ 488.00

2

1274126D00
ref: 2

SPROCKET,CAMSHAFT

€ 52.00

3

0910307001
ref: 3

BOLT(7X11)

€ 2.00

4

1272126D00
ref: 4

CAMSHAFT,EXHAUST

€ 291.50

5

1274126D00
ref: 5

SPROCKET,CAMSHAFT

€ 52.00

6

0910307001
ref: 6

BOLT(7X11)

€ 2.00

7

1284027A01
ref: 7

ARM,VALVE ROCKER

€ 49.50

8

1284249201
ref: 8

SCREW,TAPPET ADJUSTING

€ 5.50

9

1284327A00
ref: 9

NUT,TAPPET ADJUSTING

€ 3.00

10

1286127A00
ref: 10

SHAFT,VALVE ROCKER ARM

€ 31.00

11

0944013014
ref: 11

SPRING

€ 2.50

12

0180006303
ref: 12

BOLT

€ 0.00

13

0832201063
ref: 13

WASHER

€ 2.00

14

1291106B02
ref: 14

VALVE,INTAKE

€ 84.00

15

1291206B00
ref: 15

VALVE,EXHAUST

€ 85.50

16

1292006B00
ref: 16

SPRING SET,VALVE

€ 14.00

17

1293127A01
ref: 17

RETAINER,VALVE SPRING

€ 5.50

18

1293381400
ref: 18

SEAT,VALVE SPRING

€ 4.00

19

1293427A01
ref: 19

SEAT,VALVE SPRING EXH INNER

€ 7.00

20

1293527A00
ref: 20

SEAT,VALVE SPRING EXH OUTER

€ 3.50

21

1293227A00
ref: 21

COTTER VALVE

€ 2.50

22

0928905011
ref: 22

SEAL,OIL(5X10X9.7)

€ 6.00

23

1113727A02
ref: 23

PLATE,VALVE SEAT

€ 7.50
