CARBURETOR
GSF1200 1996 (T) (E02 E04 E22 E25 E34)

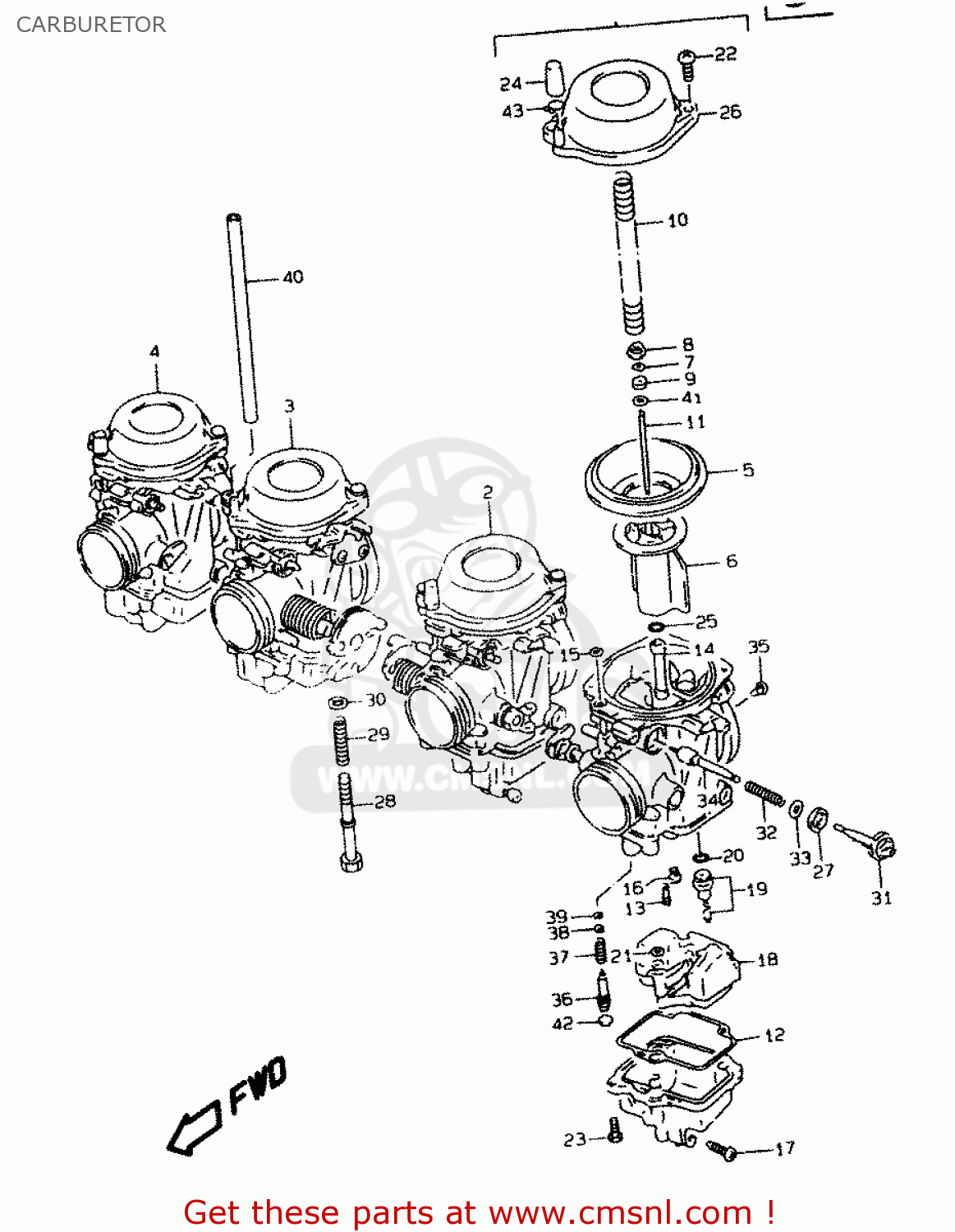

Carburetor diagram GSF1200 1996 (T) (E02 E04 E22 E25 E34)
CARBURETOR GSF1200 1996 (T) (E02 E04 E22 E25 E34)
×
prices are in EUR
ref
part #
description
quantity
1
1320127E10
ref: 1
CARBURETOR ASS
€ 604.00
1
1320127E70
ref: 1
GSF1200W/X E18
CARBURETOR ASSY, LH
€ 328.00
1
1320127E30
ref: 1
GSF1200ST/SV/SW/SX E
CARBURETOR ASSY, LH
€ 0.00
1
1320127E70
ref: 1
GSF1200SAV/SAW/SAX E
CARBURETOR ASSY, LH
€ 328.00
1
1320127E40
ref: 1
E37, P37
CARBURETOR ASSY, LH
€ 0.00
2
1320227E10
ref: 2
CARBURETOR ASS
€ 583.00
2
1320227E70
ref: 2
GSF1200W/X E18
CARBURETOR ASSY, ML
€ 0.00
2
1320227E30
ref: 2
GSF1200ST/SV/SW/SX E
CARBURETOR ASSY, ML
€ 0.00
2
1320227E70
ref: 2
GSF1200SAV/SAW/SAX E
CARBURETOR ASSY, ML
€ 0.00
2
1320227E40
ref: 2
E37, P37
CARBURETOR ASSY, ML
€ 0.00
3
1320327E10
ref: 3
CARBURETOR ASS
€ 500.50
3
1320327E70
ref: 3
GSF1200W/X E18
CARBURETOR ASSY, MR
€ 0.00
3
1320327E30
ref: 3
GSF1200ST/SV/SW/SX E
CARBURETOR ASSY, MR
€ 0.00
3
1320327E70
ref: 3
GSF1200SAV/SAW/SAX E
CARBURETOR ASSY, MR
€ 0.00
3
1320327E40
ref: 3
E37, P37
CARBURETOR ASSY, MR
€ 0.00
4
1320427E10
ref: 4
CARBURETOR ASS
€ 538.50
4
1320427E70
ref: 4
GSF1200W/X E18
CARBURETOR ASSY, RH
€ 0.00
4
1320427E30
ref: 4
GSF1200ST/SV/SW/SX E
CARBURETOR ASSY, RH
€ 0.00
4
1320427E70
ref: 4
GSF1200SAV/SAW/SAX E
CARBURETOR ASSY, RH
€ 0.00
4
1320427E40
ref: 4
E37, P37
CARBURETOR ASSY, RH
€ 0.00
5
1350717C01
ref: 5
DIAPHRAGM
€ 24.50
6
1350102D00
ref: 6
VALVE,PISTON
€ 79.50
7
1339440D20
ref: 7
E RING
€ 4.50
8
1338242A00
ref: 8
RING
€ 3.50
9
1338747010
ref: 9
RING
€ 7.50
10
1341707C30
ref: 10
SPRING
€ 9.00
11
1338327E00
ref: 11
NEEDLE,JET
€ 19.50
11
1338326D30
ref: 11
E18
NEEDLE,JET
€ 13.00
12
1325844B00
ref: 12
GASKET,FLOAT CHAMBER (NAS)
€ 8.50
13
0949235010
ref: 13
JET,PILOT(37.5)
€ 10.50
14
0949400638
ref: 14
JET,NEEDLE(O-8)
€ 30.00
15
1350917C00
ref: 15
O RING
€ 4.50
16
0949120012
ref: 16
JET,MAIN(102.5)
€ 8.50
17
1324713A00
ref: 17
SCREW,DRAIN
€ 5.50
18
1324014D10
ref: 18
FLOAT ASSY
€ 65.50
19
1337046E10
ref: 19
->13370-46E20
VALVE ASSEMBLY,NEEDLE
€ 69.50
19
1337046E20
ref: 19
E37, P37
VALVE ASSY,NEEDLE(NI)
€ 69.50
20
1337446710
ref: 20
O RING
€ 4.50
21
1337444080
ref: 21
O-RING,NEEDLE VALVE
€ 6.00
22
0211275163
ref: 22
SCREW
€ 2.50
23
0211205127
ref: 23
SCREW
€ 2.50
24
1350817C00
ref: 24
CAP
€ 4.50
24
1350817C00
ref: 24
E18
CAP
€ 4.50
25
1327847090
ref: 25
O RING
€ 2.00
26
1350217E20
ref: 26
COVER,DIAPHRAGM
€ 60.00
27
1341817C00
ref: 27
CAP,STARTER
€ 5.00
28
1326714D10
ref: 28
MR
SCREW,ADJUSTER
€ 22.50
29
1337514D10
ref: 29
MR
SPRING
€ 6.50
30
1342738300
ref: 30
MR
WASHER
€ 1.50
31
1341817C10
ref: 31
HOLDER,GUIDE
€ 14.00
32
1341726D00
ref: 32
SPRING
€ 5.50
33
1343247090
ref: 33
WASHER
€ 2.50
34
1341105320
ref: 34
PLUNGER ASSY
€ 18.00
35
0949328006
ref: 35
<-09493-28007
JET,PILOT AIR,1.4
€ 15.50
35
0949330004
ref: 35
E18
JET,PILOT AIR(1.5)
€ 8.50
36
1327947070
ref: 36
SCREW,PILOT
€ 11.50
37
1326847070
ref: 37
SPRING
€ 5.00
38
1329129900
ref: 38
WASHER
€ 2.00
39
1329529900
ref: 39
O RING,PILOT AIR SCREW
€ 4.00
40
0935250903600
ref: 40
MR L:600->175
HOSE(5X9X600)
€ 28.50
41
1338244030
ref: 41
WASHER
€ 3.50
42
1328105A00
ref: 42
E18
PLUG
€ 3.50
43
1367105A40
ref: 43
CLIP
€ 4.00
43
1367105A40
ref: 43
E18
CLIP
