CLUTCH MASTER CYLINDER

GSF1200S 2000 (Y) (E02 E04 E17 E18 E22 E24 E25 E34)

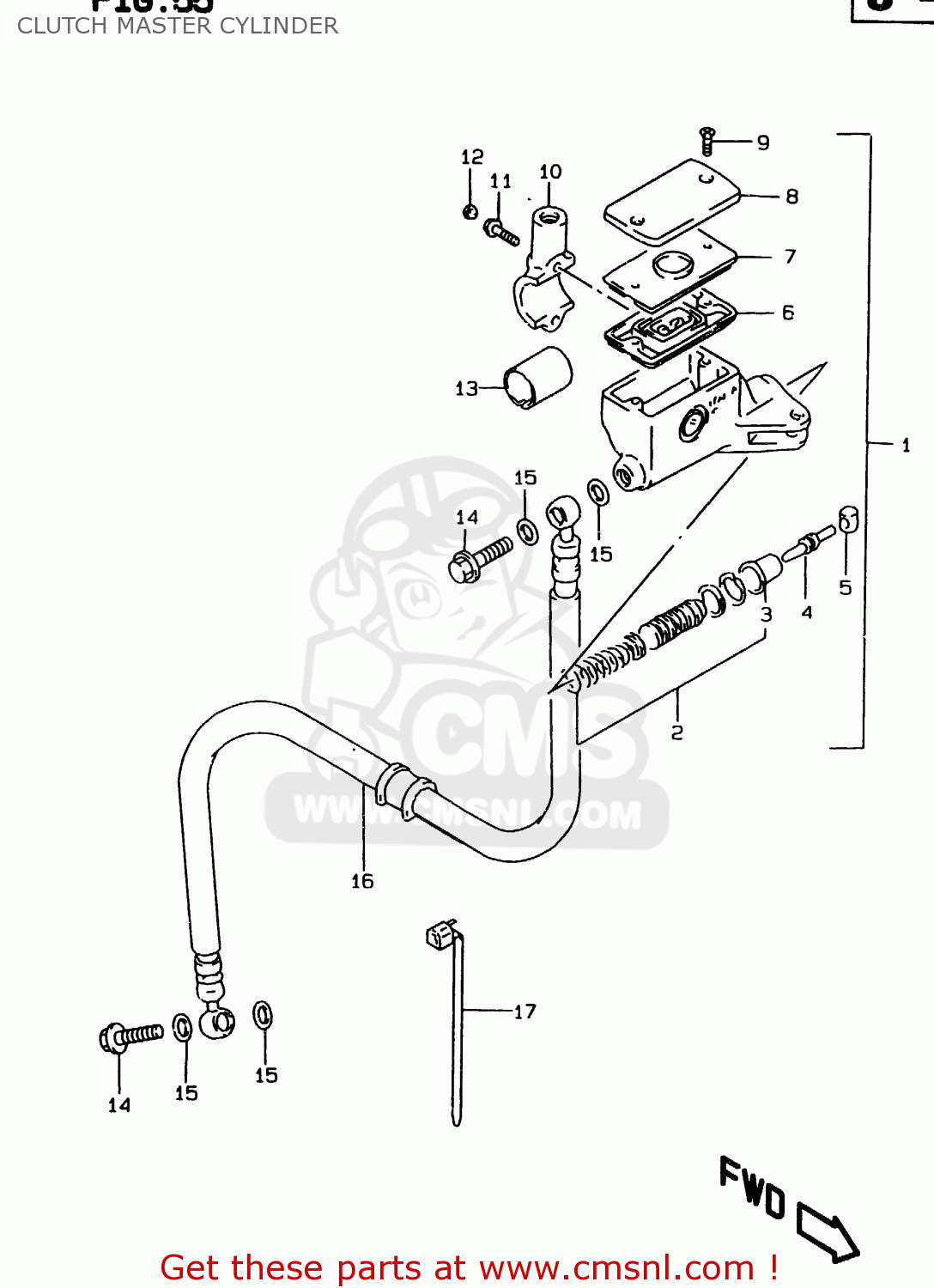

Clutch master cylinder diagram GSF1200S 2000 (Y) (E02 E04 E17 E18 E22 E24 E25 E34)

CLUTCH MASTER CYLINDER GSF1200S 2000 (Y) (E02 E04 E17 E18 E22 E24 E25 E34)

CLUTCH MASTER CYLINDER GSF1200S 2000 (Y) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

5980026D10
ref: 1

CYLINDER ASSEMBLY,CLUTCH MASTER

€ 271.50

2

5980008810
ref: 2

PISTON & CUP SET

€ 36.50

3

5966644300
ref: 3

BOOT

€ 6.00

4

5987138A00
ref: 4

PUSH ROD

€ 6.50

5

5989208A00
ref: 5

BUSH

€ 5.50

6

5966749460
ref: 6

5966749460

7

5966841C00
ref: 7

PLATE,DIAPHRAGM

€ 8.00

8

5966941C00
ref: 8

CAP

€ 30.00

9

6968949300
ref: 9

SCREW

€ 1.50

10

5967105A00
ref: 10

HOLDER

€ 16.50

11

0713006203
ref: 11

BOLT,CRKCASE,R

€ 3.00

12

0925005009
ref: 12

CAP(OD:10)

€ 2.50

13

5989426D01
ref: 13

SPACER,CLUTCH MASTER CYLINDER

€ 8.50

14

0936010039
ref: 14
GSF1200T/ST

BOLT UNION

€ 6.50

14

0936010041
ref: 14
GSF1200V/SV/SAV/W/SW

BOLT UNION

€ 6.50

15

0916110009
ref: 15

WASHER(10X15X1.5)

€ 2.00

16

5991027E00
ref: 16

HOSE,CLUTCH

€ 137.50

17

0940714403
ref: 17

CLAMP(L:125)

€ 2.50
