Buy Suzuki GSF Parts Online


CRANKCASE

GSF1200S 2000 (Y) (E02 E04 E17 E18 E22 E24 E25 E34)

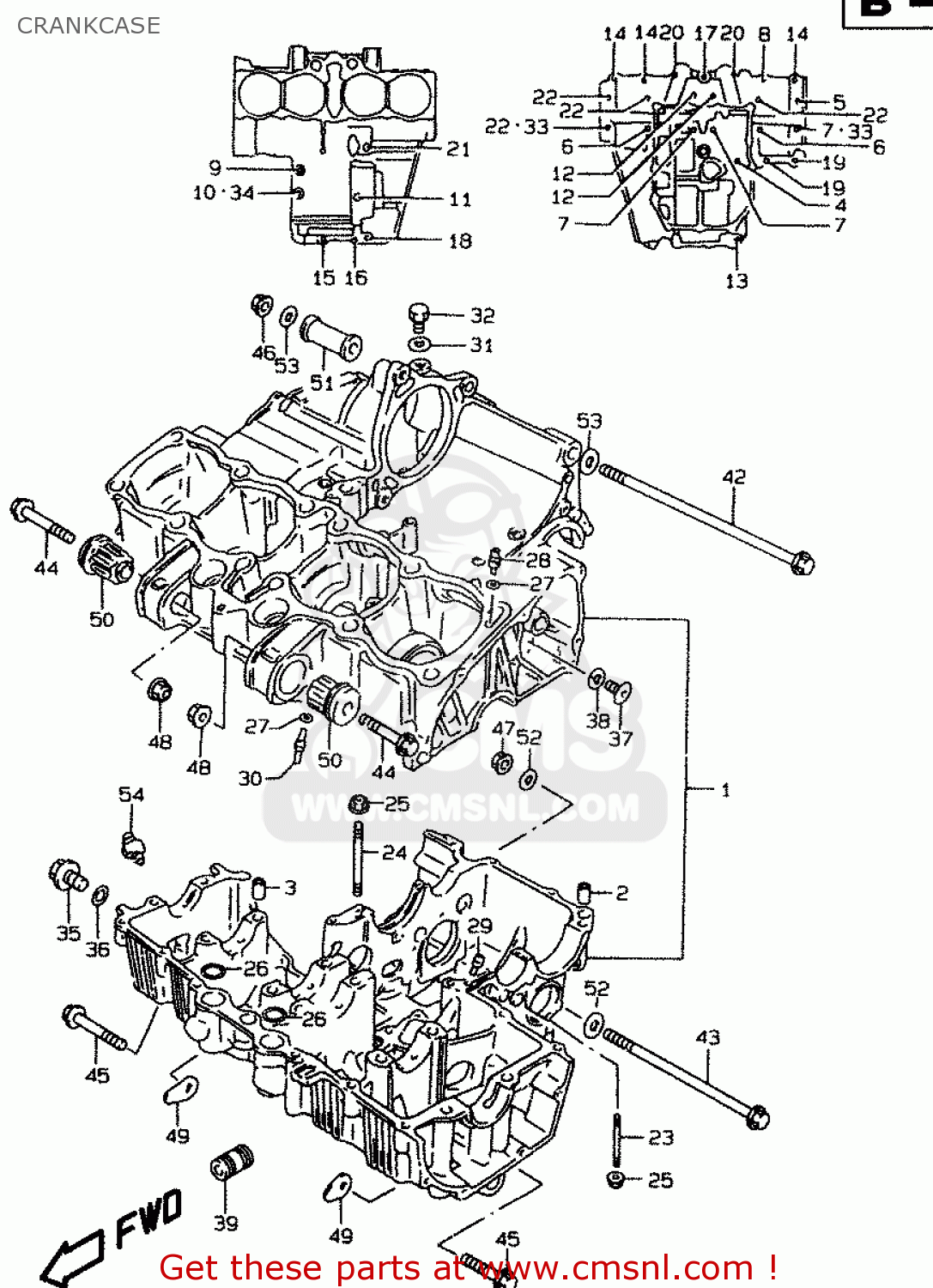

Crankcase diagram GSF1200S 2000 (Y) (E02 E04 E17 E18 E22 E24 E25 E34)

CRANKCASE GSF1200S 2000 (Y) (E02 E04 E17 E18 E22 E24 E25 E34)
CRANKCASE GSF1200S 2000 (Y) (E02 E04 E17 E18 E22 E24 E25 E34)
CRANKCASE GSF1200S 2000 (Y) (E02 E04 E17 E18 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
1130127830
ref: 1
CRANKCASE SET
1130127830
€ 2,213.00
2
0920613004
ref: 2
PIN(10.4X13X22)
0920613004
€ 3.00
3
0920611017
ref: 3
PIN(8.4X11X20)
0920611017
€ 6.50
4
0910306163
ref: 4
BOLT(6X105)
0910306163
€ 4.00
5
0910308097
ref: 5
BOLT(8X105)
0910308097
€ 3.00
6
0910308182
ref: 6
BOLT(8X125)
0910308182
€ 4.50
7
0910308098
ref: 7
BOLT(8X115)
0910308098
€ 3.00
8
0155006353
ref: 8
BOLT
0155006353
€ 2.50
9
0713006403
ref: 9
BOLT
0713006403
€ 3.50
10
0712006553
ref: 10
BOLT
0712006553
€ 3.00
11
0713006653
ref: 11
BOLT
0713006653
€ 4.00
12
0713008653
ref: 12
BOLT
€ 3.50
13
0155008603
ref: 13
BOLT
€ 3.50
14
0155006353
ref: 14
BOLT
0155006353
€ 2.50
15
0155006403
ref: 15
BOLT
0155006403
€ 2.00
16
0155006403
ref: 16
BOLT
0155006403
€ 2.00
17
0155006503
ref: 17
BOLT
0155006503
€ 2.00
18
0155006603
ref: 18
BOLT
0155006603
€ 2.50
19
0155006553
ref: 19
BOLT, HYDRAULIC UNIT NO.2
0155006553
€ 2.00
20
0155006703
ref: 20
BOLT
€ 2.50
21
0155006803
ref: 21
BOLT
€ 2.50
22
0910308066
ref: 22
BOLT(8X95)
€ 3.00
23
0142106408
ref: 23
STUD BOLT
€ 2.50
24
0142106608
ref: 24
STUD BOLT
€ 2.50
25
0831610063
ref: 25
NUT
0831610063
€ 2.50
26
0928021008
ref: 26
O RING(D:2.5,ID:21)
0928021008
€ 2.00
27
0928004004
ref: 27
O RING(D:1.2,ID:4)
0928004004
€ 2.00
28
0949314002
ref: 28
JET,AIR
0949314002
€ 8.00
29
0949324010
ref: 29
JET
0949324010
€ 12.00
30
0949326007
ref: 30
JET(13)
0949326007
€ 13.50
31
0916812002
ref: 31
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
32
0924712103
ref: 32
PLUG(12X9)
0924712103
€ 3.50
33
0916808021
ref: 33
GASKET(8.5X17X2.3) (NAS)
0916808021
€ 3.00
34
0916806018
ref: 34
GASKET(6.2X13X1.2) (NAS)
0916806018
€ 2.00
35
0924816003
ref: 35
PLUG
0924816003
€ 16.50
36
0928017002
ref: 36
O RING(D:2.4,ID:16.8)
0928017002
€ 3.50
37
0924814005
ref: 37
MODEL T
PLUG,14X12
0924814005
€ 5.00
37
0924814010
ref: 37
MODEL V/W/X
PLUG
0924814010
€ 5.00
38
0916814002
ref: 38
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
39
1659106B00
ref: 39
UNION,OIL STAND
1659106B00
€ 6.00
40
1222848B000E0
ref: 40
RH, SEE ILLUSTRATION
BEARING,CRANK THRUST(GREEN)
1222848B000E0
€ 8.00
41
1222848B000A0
ref: 41
LH, SEE ILLUSTRATION
BEARING,CRANK THRUST(PINK)
€ 7.50
41
1222848B000B0
ref: 41
BEARING,CRANK THRUST(BROWN)
1222848B000B0
€ 7.50
41
1222848B000C0
ref: 41
BEARING,CRANK THRUST(RED)
1222848B000C0
€ 7.50
41
1222848B000D0
ref: 41
BEARING,CRANK THRUST(YELLOW)
1222848B000D0
€ 7.50
41
1222848B000E0
ref: 41
BEARING,CRANK THRUST(GREEN)
1222848B000E0
€ 8.00
41
1222848B000F0
ref: 41
BEARING,CRANK THRUST(BLUE)
1222848B000F0
€ 7.50
41
1222848B000G0
ref: 41
BEARING,CRANK THRUST(ORANGE)
1222848B000G0
€ 7.50
41
1222848B000H0
ref: 41
BEARING,CRANK THRUST(BLACK)
1222848B000H0
€ 7.50
42
0910310136
ref: 42
BOLT(10X180)
0910310136
€ 11.50
43
0910012053
ref: 43
BOLT
€ 2.50
44
0910310289
ref: 44
BOLT,ENGINE MOUNTING (10X5)
€ 4.50
45
0155010753
ref: 45
BOLT 10X57
€ 3.00
46
0915910058
ref: 46
NUT
0915910058
€ 4.00
47
0831931128
ref: 47
NUT 12MM
0831931128
€ 4.00
48
0831610103
ref: 48
NUT
0831610103
€ 2.00
49
0915910020
ref: 49
NUT
0915910020
€ 7.50
50
1168106B00
ref: 50
BUSH,ENGINE MOUNTING
1168106B00
€ 26.00
51
1161020C00
ref: 51
SPACER,ENGINE MOUNT(L27)
1161020C00
€ 10.00
52
0832201123
ref: 52
WASHER
€ 2.00
53
0832201103
ref: 53
WASHER
0832201103
€ 2.50
54
3782033D00
ref: 54
SWITCH ASSEMBLY,OIL PRESSURE
€ 29.00
