COWLING BRACE (GSF1200ST/SV/SAV/SW/SAW/SX/SAX)

GSF1200S 2000 (Y) (E02 E04 E17 E18 E22 E24 E25 E34)

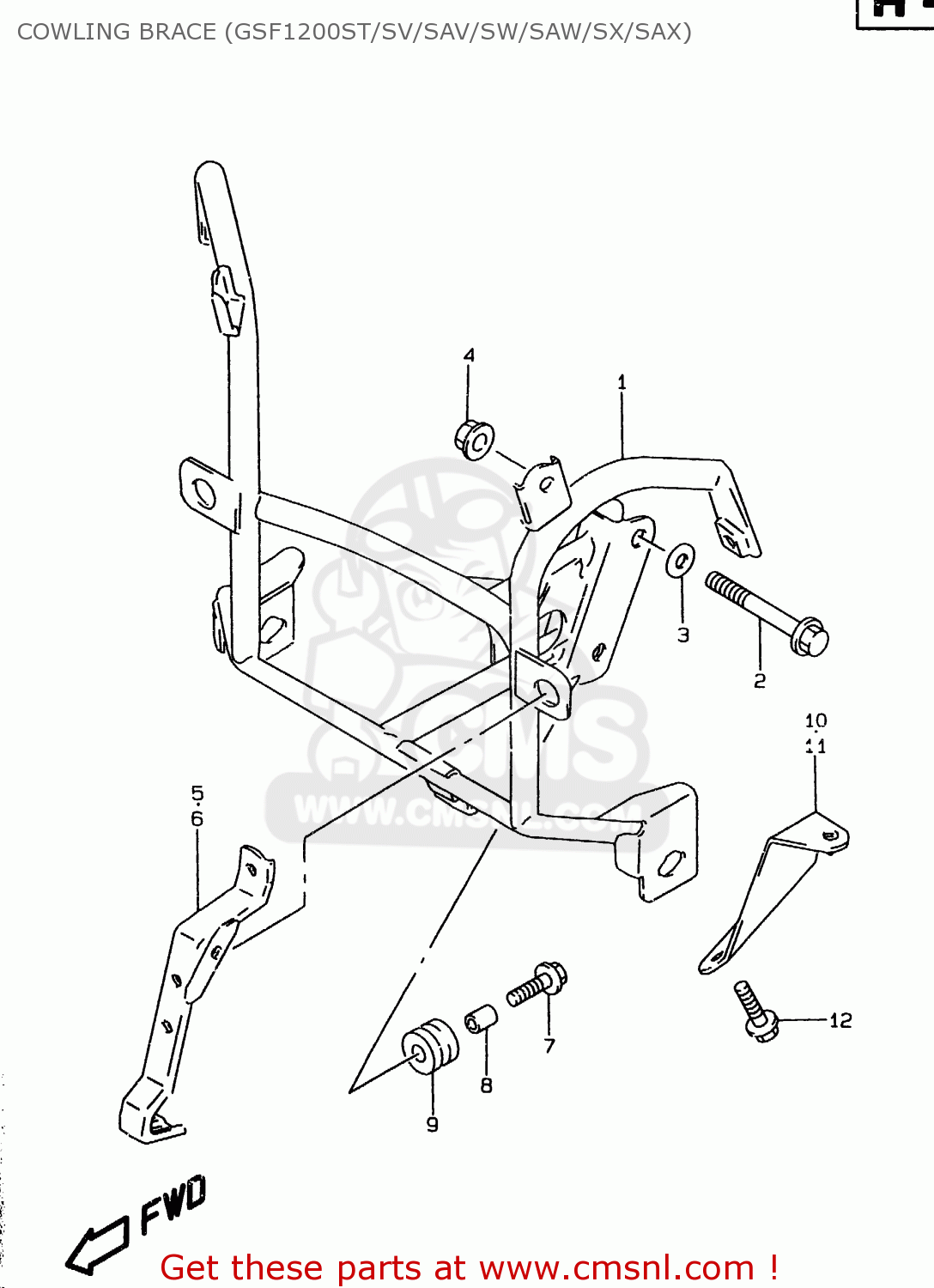

Cowling brace (gsf1200st/sv/sav/sw/saw/sx/sax) diagram GSF1200S 2000 (Y) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

9451026E00
ref: 1
GSF1200ST/SV/SW/SX

BRACE COMP,COWLING

€ 199.00

9451026E10
ref: 1
GSF1200SAV/SAW/SAX

BRACE,COWLING

€ 199.00

0910308222
ref: 2

BOLT(8X40)

€ 3.00

0916408020
ref: 3

WASHER

€ 2.50

0831610083
ref: 4

NUT

€ 3.00

9452026E00
ref: 5

BRACKET,HEADLAMP,R

€ 19.00

9453026E00
ref: 6

BRACKET,HEADLAMP,L

€ 19.00

0911606146
ref: 7

BOLT(6X25)

€ 2.50

0918006114
ref: 8
MODEL T

SPACER (6.1X9X10)

€ 3.00

0918006307
ref: 8
MODEL V/W/X

SPACER(6.5X9X10)

€ 3.00

0932008047
ref: 9

CUSHION

€ 4.00

9453127E00
ref: 10

BRACKET,COWLING RR,R

€ 7.50

9454127E00
ref: 11

BRACKET,COWLING RR,L

€ 7.00

0157006163
ref: 12

BOLT

€ 2.50
