FRAME (GSF1200T/ST/V/SV)

GSF1200S 2000 (Y) (E02 E04 E17 E18 E22 E24 E25 E34)

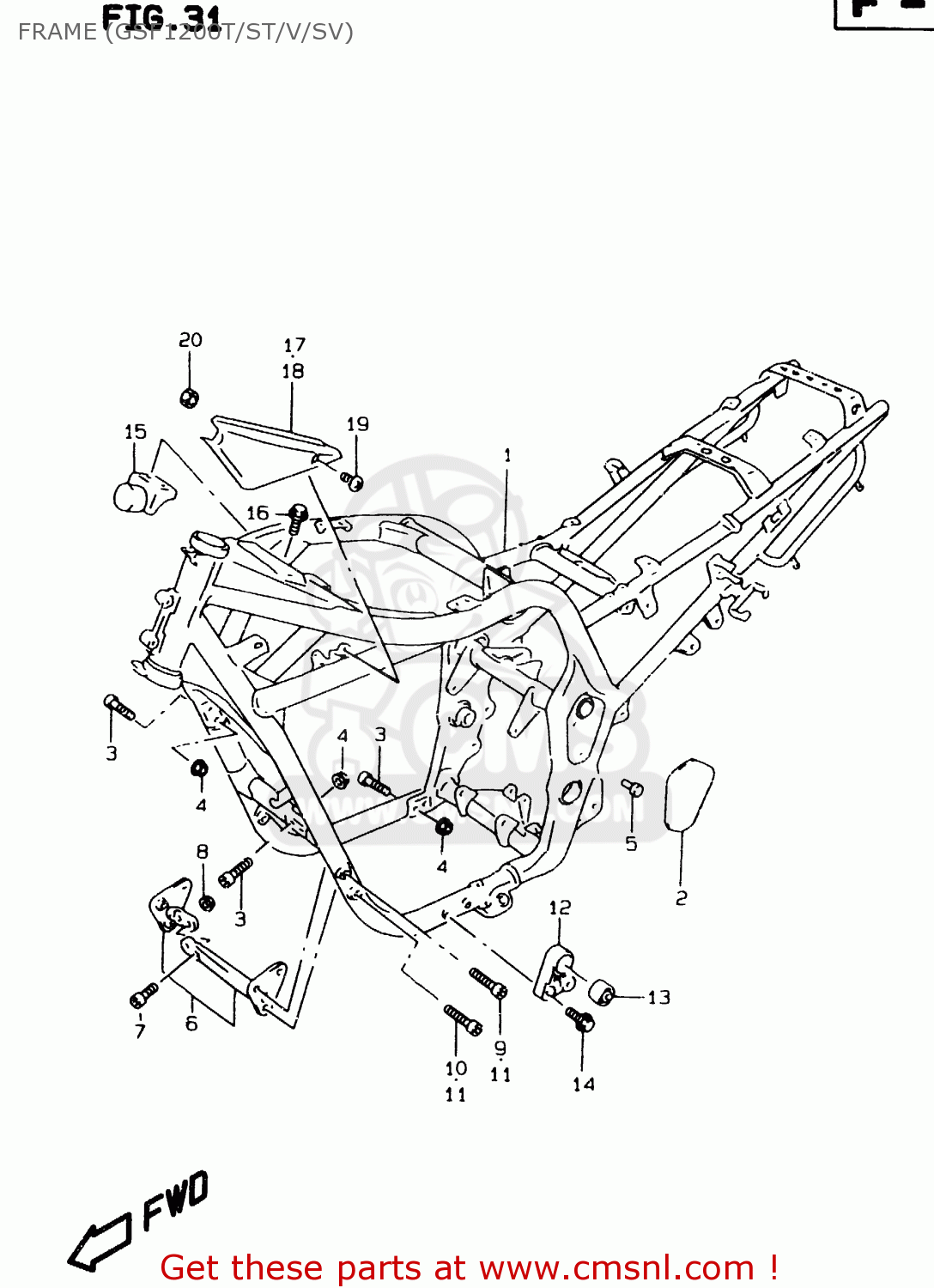

Frame (gsf1200t/st/v/sv) diagram GSF1200S 2000 (Y) (E02 E04 E17 E18 E22 E24 E25 E34)

FRAME (GSF1200T/ST/V/SV) GSF1200S 2000 (Y) (E02 E04 E17 E18 E22 E24 E25 E34)

FRAME (GSF1200T/ST/V/SV) GSF1200S 2000 (Y) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

4110027E6022U
ref: 1

FRAME COMP

€ 2,481.50

1

4110027E6033J
ref: 1

FRAME COMP

€ 1,317.00

1

4110027E60Y98
ref: 1
MODEL T

FRAME COMP

€ 1,317.00

1

4110027E60Y0N
ref: 1
MODEL V

FRAME COMP

€ 1,317.00

1

4110027E7022U
ref: 1
E18

FRAME COMP

€ 0.00

1

4110027E7033J
ref: 1
E18

FRAME COMP

€ 2,747.00

1

4110027E70Y98
ref: 1
MODEL T E18

FRAME (GREEN)

€ 2,747.00

1

4110027E70Y0N
ref: 1
MODEL V E18

FRAME COMP

€ 2,747.00

2

4163926E00
ref: 2

COVER,FRAME BODY,R

€ 12.50

2

4164926E00
ref: 2

COVER,FRAME BODY,L

€ 12.50

3

0910610019
ref: 3

BOLT(10X33)

€ 4.00

4

0831931103
ref: 4

NUT

€ 3.00

5

0940907329
ref: 5

CLIP

€ 3.00

6

4190027E0022U
ref: 6

PLATE ASSEMBLY,ENGINE MOUNT

€ 118.50

6

4190027E0033J
ref: 6

PLATE ASSEMBLY,ENGINE MOUNT

€ 111.00

6

4190027E00Y98
ref: 6
MODEL T

PLATE,ENGINE MOUNT NO.1

€ 111.00

6

4190027E00Y0N
ref: 6
MODEL V

PLATE ASSY,MOUNT NO.1(BLUE)

€ 115.50

7

0712010303
ref: 7

BOLT

€ 4.00

8

0831931103
ref: 8

NUT

€ 3.00

9

0713008503
ref: 9
MODEL T

BOLT

€ 3.50

10

0713008453
ref: 10
MODEL T

BOLT

€ 3.00

11

0713008503
ref: 11
MODEL V

BOLT

€ 3.50

12

4193127E50
ref: 12

BRACKET,ENGINE MOUNTING NO.2

€ 74.00

13

4193227E50
ref: 13

BUSH,ENG MOUNTING NO.2

€ 19.00

14

0712008253
ref: 14

BOLT

€ 2.50

15

4255027E50
ref: 15

DAMPER COMP,FRAME

€ 52.00

16

0155006123
ref: 16

BOLT

€ 2.50

17

4751126E00291
ref: 17

COVER,FRAME HEAD,R

€ 15.50

18

4752126E00291
ref: 18

COVER,FRAME HEAD,L

€ 22.00

19

0913905021
ref: 19

SCREW(5X12)

€ 2.00

20

0932008013
ref: 20

CUSHION

€ 4.00
