FRAME (GSF1200SAX)

GSF1200S 2000 (Y) (E02 E04 E17 E18 E22 E24 E25 E34)

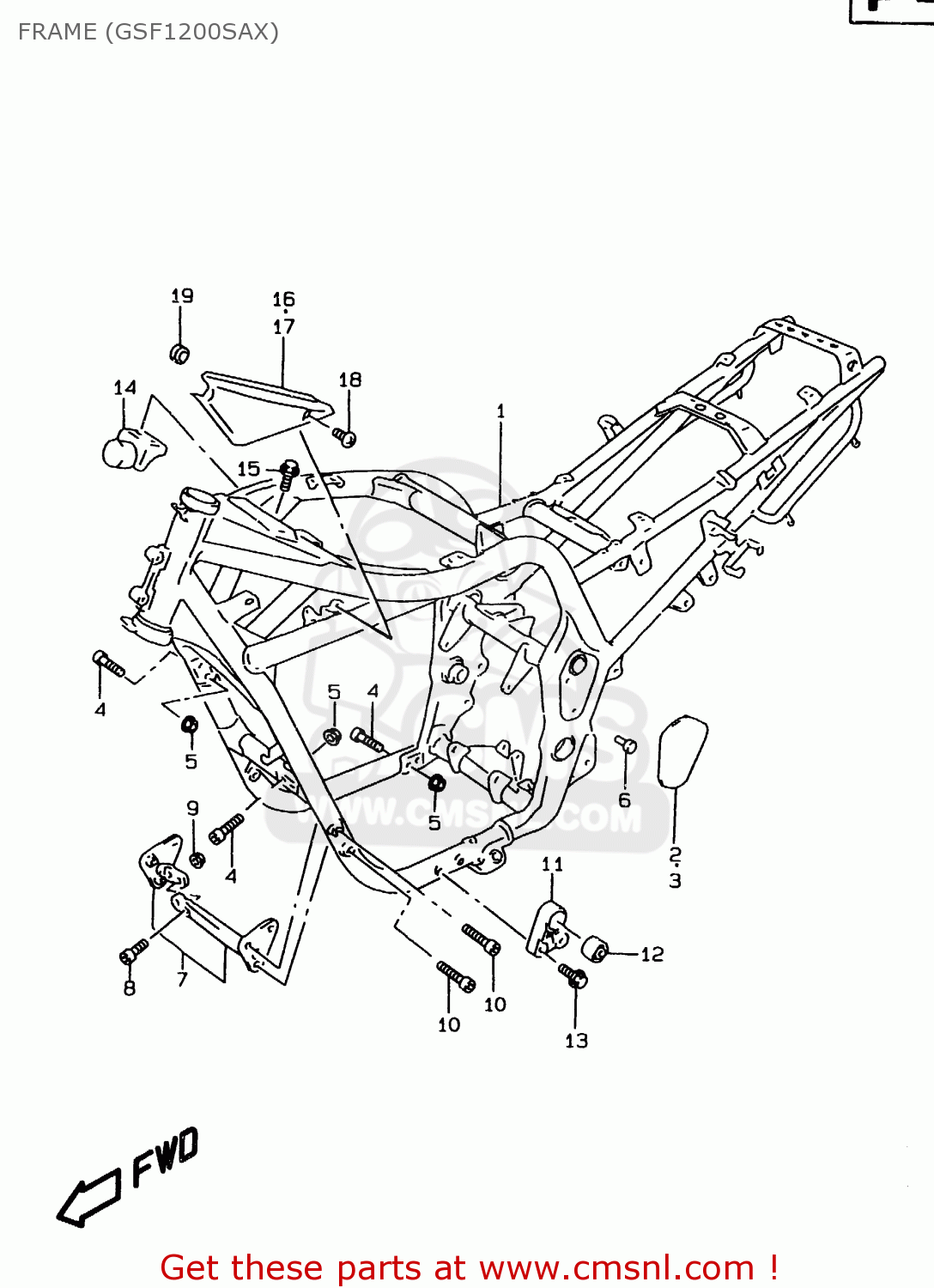

Frame (gsf1200sax) diagram GSF1200S 2000 (Y) (E02 E04 E17 E18 E22 E24 E25 E34)

FRAME (GSF1200SAX) GSF1200S 2000 (Y) (E02 E04 E17 E18 E22 E24 E25 E34)

FRAME (GSF1200SAX) GSF1200S 2000 (Y) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

4110027E2122U
ref: 1

FRAME (MAROON)

€ 2,553.50

1

4110027E2133J
ref: 1

FRAME(BLACK)

€ 2,553.50

1

4110027E21Y7F
ref: 1

FRAME (BROWN)

€ 2,553.50

1

4110027E21Y7G
ref: 1

FRAME (GREEN)

€ 2,553.50

1

4110027E3122U
ref: 1
E18

FRAME (MAROON)

€ 0.00

1

4110027E3133J
ref: 1
E18

FRAME (BLACK)

€ 0.00

1

4110027E31Y7F
ref: 1
E18

FRAME (BROWN)

€ 0.00

1

4110027E31Y7G
ref: 1
E18

FRAME (GREEN)

€ 0.00

2

4163926E00
ref: 2

COVER,FRAME BODY,R

€ 12.50

3

4164926E00
ref: 3

COVER,FRAME BODY,L

€ 12.50

4

0910610019
ref: 4

BOLT(10X33)

€ 4.00

5

0831931103
ref: 5

NUT

€ 3.00

6

0940907329
ref: 6

CLIP

€ 3.00

7

4190027E0022U
ref: 7

PLATE ASSEMBLY,ENGINE MOUNT

€ 118.50

7

4190027E0033J
ref: 7

PLATE ASSEMBLY,ENGINE MOUNT

€ 111.00

7

4190027E00Y7F
ref: 7

PLATE,ENGINE MOUNTING NO.1 (B

€ 111.00

7

4190027E00Y7G
ref: 7

PLATE,ENGINE MOUNTING NO.1 (G

€ 111.00

8

0712010303
ref: 8

BOLT

€ 4.00

9

0831931103
ref: 9

NUT

€ 3.00

10

0713008503
ref: 10

BOLT

€ 3.50

11

4193127E50
ref: 11

BRACKET,ENGINE MOUNTING NO.2

€ 74.00

12

4193227E50
ref: 12

BUSH,ENG MOUNTING NO.2

€ 19.00

13

0712008253
ref: 13

BOLT

€ 2.50

14

4255027E50
ref: 14

DAMPER COMP,FRAME

€ 52.00

15

0155006123
ref: 15

BOLT

€ 2.50

16

4751126E00291
ref: 16

COVER,FRAME HEAD,R

€ 15.50

17

4752126E00291
ref: 17

COVER,FRAME HEAD,L

€ 22.00

18

0913905021
ref: 18

SCREW(5X12)

€ 2.00

19

0932008013
ref: 19

CUSHION

€ 4.00
