Buy Suzuki GSF Parts Online


SPEEDOMETER (GSF1200SK2/SK3/SK4/SK5)

GSF1200Z BANDIT 2005 (K5) USA (E03)

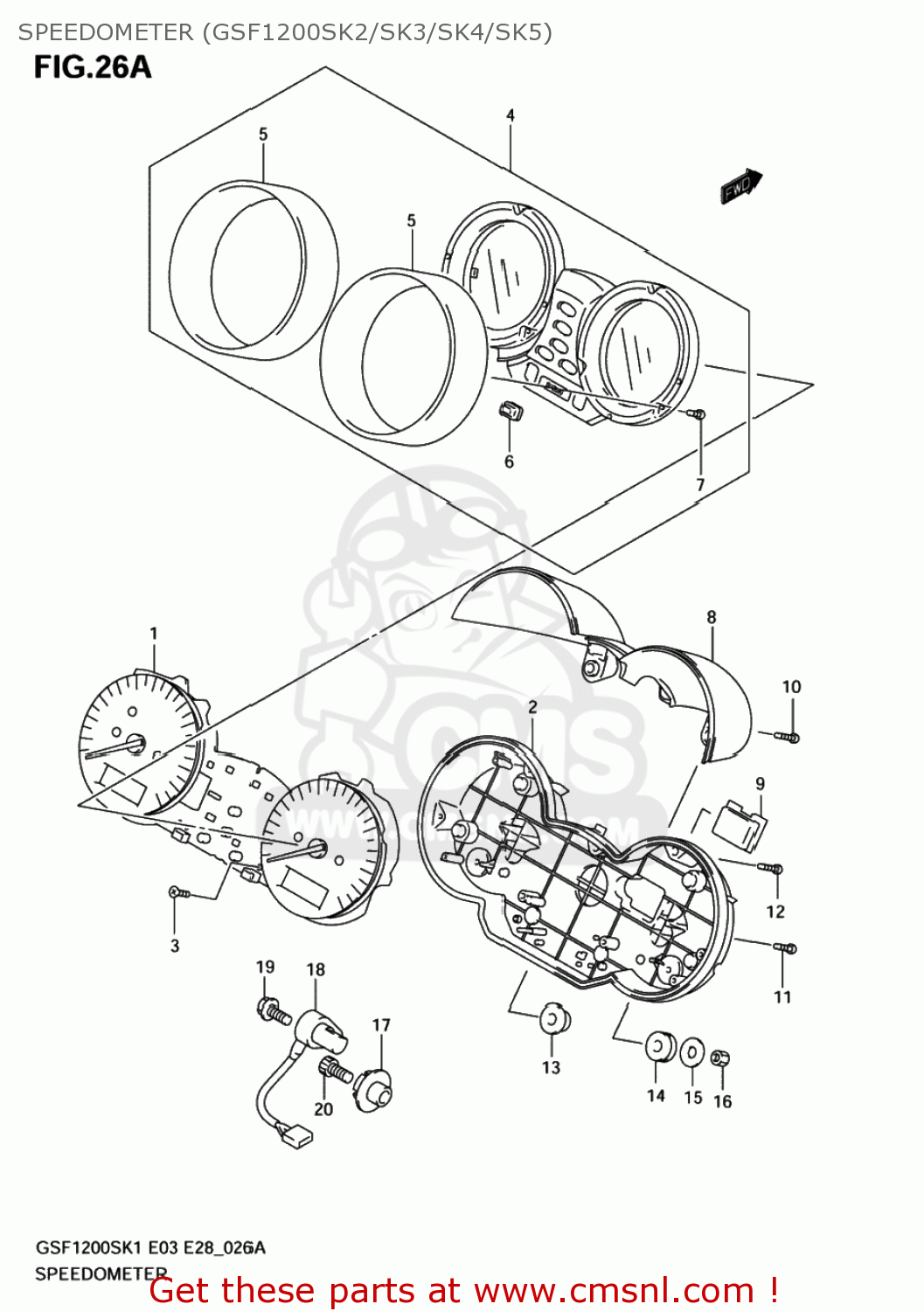

Speedometer (gsf1200sk2/sk3/sk4/sk5) diagram GSF1200Z BANDIT 2005 (K5) USA (E03)

SPEEDOMETER (GSF1200SK2/SK3/SK4/SK5) GSF1200Z BANDIT 2005 (K5) USA (E03)
SPEEDOMETER (GSF1200SK2/SK3/SK4/SK5) GSF1200Z BANDIT 2005 (K5) USA (E03)
SPEEDOMETER (GSF1200SK2/SK3/SK4/SK5) GSF1200Z BANDIT 2005 (K5) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
3412032F10
ref: 1-1
SPEEDOMETER
3412032F10
€ 597.00
1-2
3412032F00
ref: 1-2
SPEEDOMETER
3412032F00
€ 814.00
2
3411132F00
ref: 2
34111-31F00
CASE ASSY,LOWE
€ 67.00
3
3414917E10
ref: 3
SCREW(4X14)
3414917E10
€ 4.00
4
3415032F30
ref: 4
UPR CASE ASSY
3415032F30
€ 185.50
5
3419331F10
ref: 5
RING
3419331F10
€ 56.50
6
3412432F00
ref: 6
RUBBER,SWITCH
3412432F00
€ 3.50
7
3418331F10
ref: 7
SCREW(2.3X8)
3418331F10
€ 3.00
8
3415231F30
ref: 8
COVER
3415231F30
€ 176.50
9
3419819F20
ref: 9
GROMMET
3419819F20
€ 9.00
10
3414931F10
ref: 10
SCREW,PAN HEAD(3X14)
3414931F10
€ 4.00
11
3438331F10
ref: 11
SCREW,PAN HEAD(3X16)
3438331F10
€ 3.50
12
0913203008
ref: 12
SCREW(3X16)
0913203008
€ 1.50
13
3495513E00
ref: 13
CUSHION
3495513E00
€ 3.00
14
3418932B00
ref: 14
CUSHION
3418932B00
€ 5.00
15
0916005037
ref: 15
WASHER(5.5X16X1.2)
0916005037
€ 1.50
16
0831000053
ref: 16
08310-0005A
NUT
€ 2.50
17
3498135F00
ref: 17
34981-38G01
ROTOR,SPEED
3498135F00
€ 15.00
18
3499035F00
ref: 18
SENSOR,SPEED
3499035F00
€ 112.50
19
0712005123
ref: 19
07120-0512B
BOLT
0712005123
€ 2.00
20
0713008253
ref: 20
07130-0825B
BOLT
0713008253
€ 3.50
