STEERING STEM (GSF1200K1/K2/K3)

GSF1200Z BANDIT 2005 (K5) USA (E03)

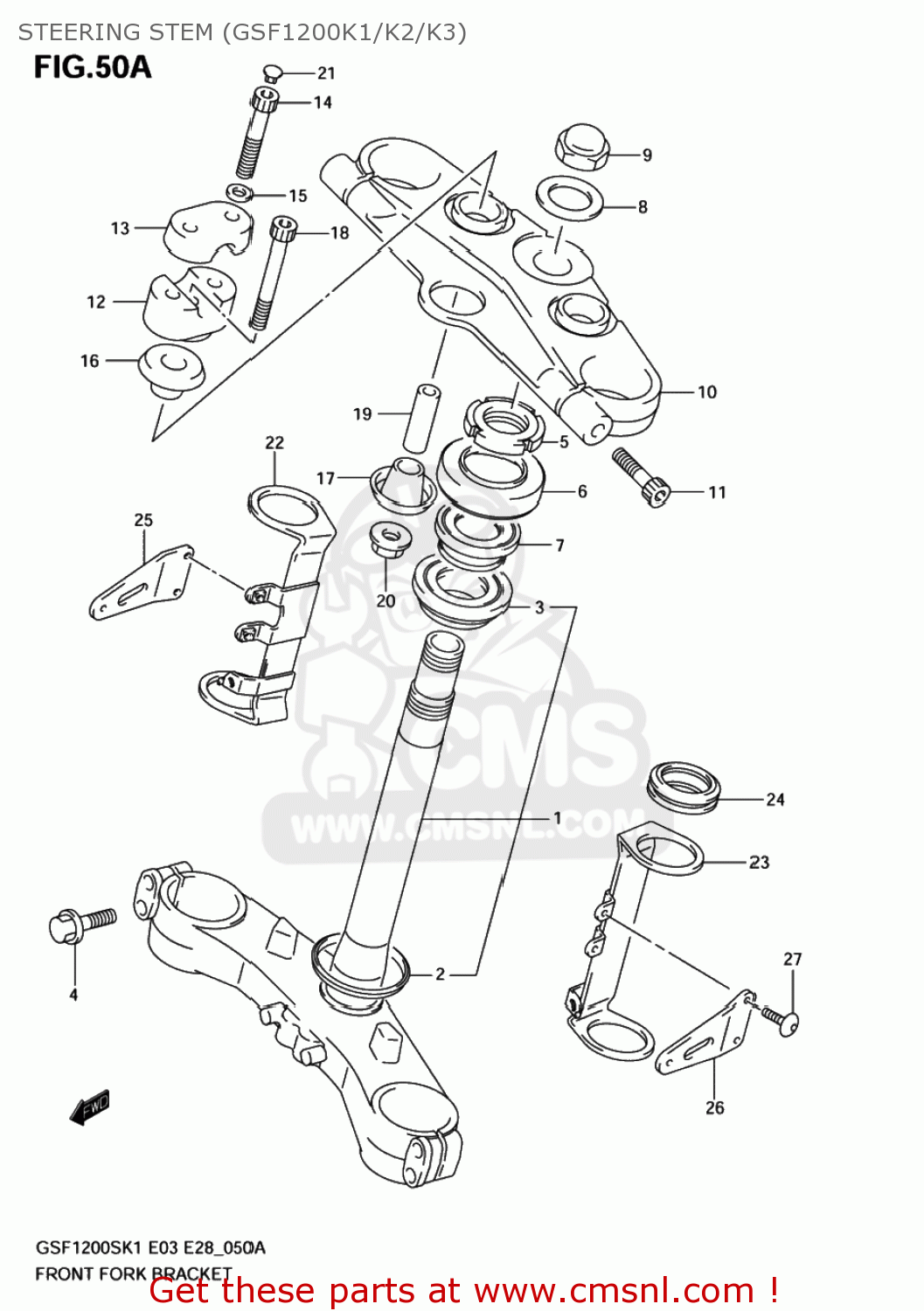

Steering stem (gsf1200k1/k2/k3) diagram GSF1200Z BANDIT 2005 (K5) USA (E03)

STEERING STEM (GSF1200K1/K2/K3) GSF1200Z BANDIT 2005 (K5) USA (E03)

STEERING STEM (GSF1200K1/K2/K3) GSF1200Z BANDIT 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5141032F00
ref: 1-1

STEM,STEERING

€ 762.00

1-2

5141032F10
ref: 1-2

STEM,STEERING

€ 910.00

2

5164412C00
ref: 2

SEAL,STEERING LWR

€ 5.50

3-1

0926730010
ref: 3-1

BEARING(30X55X17)

€ 46.50

3-1

0926730010
ref: 3-1

BEARING(30X55X17)

€ 46.50

3-2

0926530020
ref: 3-2

BEARING(30X55X17)

€ 45.50

3-2

0926530020
ref: 3-2

BEARING(30X55X17)

€ 45.50

4

0155008407
ref: 4

BOLT

€ 3.50

5

5163131F00
ref: 5

NUT,STEERING STEM

€ 8.00

6

5164340502
ref: 6

DUST SEAL,STEERING UPR

€ 8.00

7-1

0926725009
ref: 7-1

BEARING(25X47X15)

€ 40.00

7-2

0926525038
ref: 7-2

BEARING(25X47X15)

€ 49.00

8

5135624B01
ref: 8

WASHER(22.5X32X1.6)

€ 3.00

9

5135324B00
ref: 9

NUT,CAP

€ 21.50

10

5131132F00
ref: 10

HEAD,STEERING STEM

€ 452.50

11

0713008357
ref: 11

BOLT

€ 4.50

12

5622127E00
ref: 12

HOLDER,HANDLE UNDER

€ 48.50

13

5621132F00
ref: 13

HOLDER,HANDLE UPR

€ 48.50

14

0713008307
ref: 14

BOLT

€ 4.50

15

0916408015
ref: 15

WASHER

€ 3.00

16

5624127E00
ref: 16

CUSHION,RUBBER UPR

€ 32.50

17

5624228C60
ref: 17

CUSHION,RUBBER UNDER

€ 22.50

18

5632127E00
ref: 18

BOLT,HANDLE HOLDER(10X70)

€ 6.00

19

5624342A00
ref: 19

SPACER

€ 6.00

20

0831931107
ref: 20

NUT

€ 3.00

21

0925006011
ref: 21

CAP(OD:11)

€ 2.50

22

5153032F00
ref: 22

BRACKET,HEADLAMP HOUSING,R

€ 62.50

23

5154032F00
ref: 23

BRACKET,HEADLAMP HOUSING,L

€ 52.00

24

5155315D00
ref: 24

DAMPER,HEADLAMP HSG BRACKET

€ 5.00

25

5185131F00
ref: 25

STAY,HEADLAMP HOUSING,R

€ 56.50

26

5186131F00
ref: 26

STAY,HEADLAMP HOUSING,L

€ 58.50

27

0913906027
ref: 27

SCREW(6X12)

€ 3.00
