WIRING HARNESS (GSF1200SK1/SK2/SK3)

GSF1200Z BANDIT 2005 (K5) USA (E03)

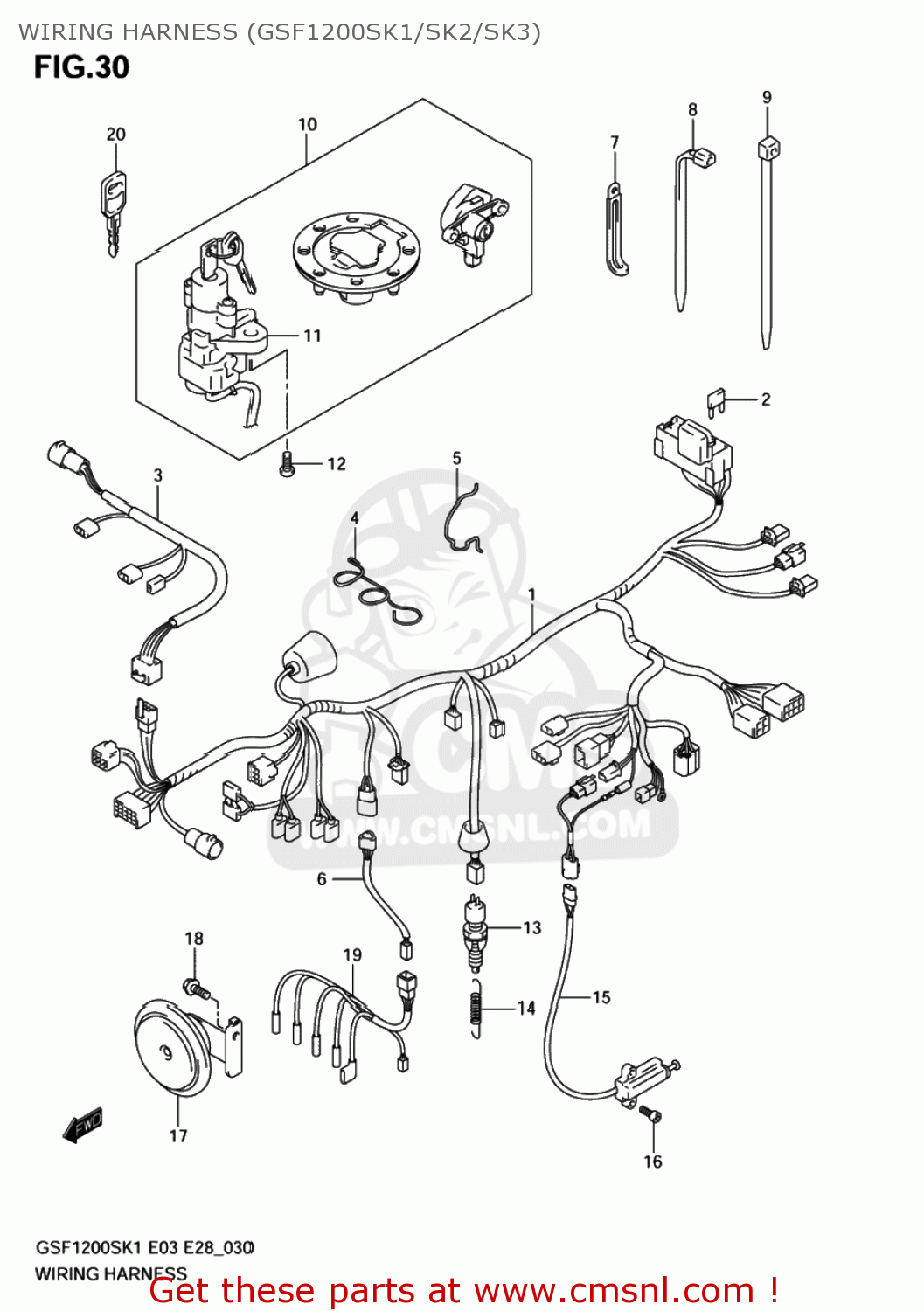

Wiring harness (gsf1200sk1/sk2/sk3) diagram GSF1200Z BANDIT 2005 (K5) USA (E03)

WIRING HARNESS (GSF1200SK1/SK2/SK3) GSF1200Z BANDIT 2005 (K5) USA (E03)
WIRING HARNESS (GSF1200SK1/SK2/SK3) GSF1200Z BANDIT 2005 (K5) USA (E03)
WIRING HARNESS (GSF1200SK1/SK2/SK3) GSF1200Z BANDIT 2005 (K5) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
3661031F60
ref: 1-1
HARNESS,WIRING
€ 489.50
1-2
3661031FE0
ref: 1-2
HARNESS,WIRING
€ 476.50
2-1
0948110501
ref: 2-1
FUSE(10A)
0948110501
€ 3.00
2-2
0948115501
ref: 2-2
FUSE(15A)
0948115501
€ 1.00
3
3662031F50
ref: 3
HARNESS,WIRING NO.2
3662031F50
€ 138.00
4
3661931F00
ref: 4
GUIDE,WIRING HARNESS
€ 8.00
5
3661931F20
ref: 5
GUIDE,WIRING HARNESS
€ 8.50
6
3685331F00
ref: 6
WIRE,TPS LEAD
3685331F00
€ 25.50
7-1
0940406432
ref: 7-1
CLAMP(L:65)
0940406432
€ 2.50
7-2
0940406433
ref: 7-2
CLAMP(L:80)
0940406433
€ 3.00
7-3
0940406434
ref: 7-3
CLAMP(L:80 T:1.0)
0940406434
€ 3.00
8-1
0940711402
ref: 8-1
CLAMP(L:90)
0940711402
€ 2.50
8-2
0940714403
ref: 8-2
CLAMP(L:125)
0940714403
€ 2.50
8-3
0940718402
ref: 8-3
CLAMP(L:165)
0940718402
€ 2.50
9
0940714407
ref: 9
CLAMP(L:145)
0940714407
€ 4.00
10-1
3710333890
ref: 10-1
LOCK SET
€ 543.00
10-2
3710433810
ref: 10-2
LOCK SET
€ 309.00
11
3710033E20
ref: 11
LOCK ASSY,STEERING
3710033E20
€ 223.50
12
0913908016
ref: 12
BOLT(8X20)
0913908016
€ 3.50
13
3774024A00
ref: 13
SWITCH ASSY,STOP LAMP
3774024A00
€ 20.50
14
0944306054
ref: 14
SPRING
0944306054
€ 2.50
15
3784044X50
ref: 15
SWITCH ASSY,SIDE STAND
3784044X50
€ 75.50
16
0712006203
ref: 16
07120-0620B
BOLT
0712006203
€ 3.50
17
3850031F00
ref: 17
HORN ASSY
3850031F00
€ 78.00
18
0155006123
ref: 18
01550-0612A
BOLT
0155006123
€ 2.50
19
3685621E00
ref: 19
WIRE,CARB HEATER LEAD
3685621E00
€ 79.50
20
3714633E00
ref: 20
KEY,BLANK
3714633E00
€ 13.00
