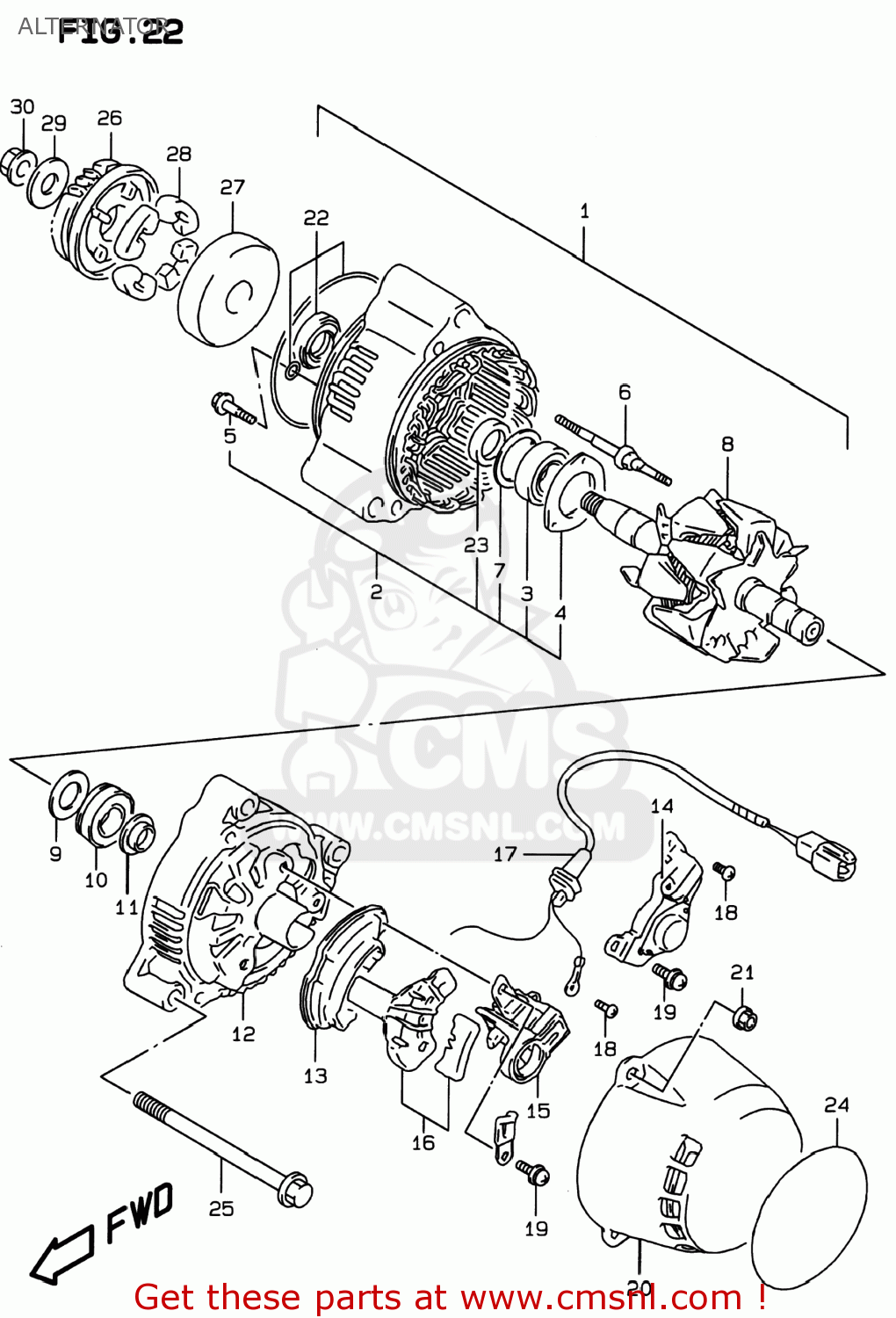

ALTERNATOR

ref

part #

description

quantity

1

3140017C04
ref: 1

ALTERNATOR ASSY

€ 1,063.50

2

3158048B00
ref: 2

FRAME,DRIVE END

€ 248.50

3

3161206B00
ref: 3

BEARING

€ 36.50

4

3158548B00
ref: 4

RETAINER

€ 9.00

5

3158648B00
ref: 5

SCREW,BEARING RETAINER

€ 3.50

6

3158785250
ref: 6

STUD BOLT

€ 9.00

7

3161348B00
ref: 7

COVER,BEARING

€ 5.50

8

3171048B04
ref: 8

ALTERNATOR ASSY

€ 277.50

9

3161382610
ref: 9

COVER,BEARING

€ 3.50

10

3161248B00
ref: 10

BEARING

€ 42.50

11

3161327A10
ref: 11

COVER(2)

€ 5.50

12

3161148B00
ref: 12

FRAME,END

€ 83.00

13

3162127A00
ref: 13

HOLDER,RECTIFIER

€ 225.50

14

3250027A00
ref: 14

REGULATOR

€ 321.00

15

3165648B00
ref: 15

HOLDER,BRUSH

€ 55.50

16

3168717E00
ref: 16

COVER,RECTIFIER

€ 4.50

17

3148048B00
ref: 17

WIRE,LEAD

€ 22.00

18

0211204063
ref: 18
02112-0406B

SCREW 4X6

€ 2.00

19

3168827A00
ref: 19

SCREW

€ 2.50

20

3161448B00
ref: 20

COVER

€ 67.50

21

0831610053
ref: 21
08316-1005A

NUT

€ 2.50

22

3178027X50
ref: 22

SERVICE KIT(A)

€ 47.50

23

3177606B00
ref: 23

SPACER

€ 22.00

24

3161517C00
ref: 24
31615-27E00

PROTECTOR,ALTERNATOR

€ 10.00

25

0155008903
ref: 25
01550-0890B

BOLT

€ 3.50

26-1

2273019C01
ref: 26-1
22730-19C02

GEAR,GENERATOR DRIVEN

€ 112.50

26-2

2273019C02
ref: 26-2

GEAR,GENERATOR DRIVEN

€ 112.50

27-1

2273327A04
ref: 27-1
22733-27A05

HOUSING,GENERATOR GEAR

€ 95.00

27-2

2273327A05
ref: 27-2

HOUSING,GENERATOR GEAR DAMPER

€ 95.00

28

2123106B00
ref: 28

DAMPER,GENERATOR DRIVEN

€ 5.50

29

0821110283
ref: 29

WASHER

€ 3.00

30

0831620103
ref: 30
08316-2010B

NUT

€ 3.50

all assemblies
