REAR FENDER

GSF600S BANDIT 1996 (T) USA (E03)

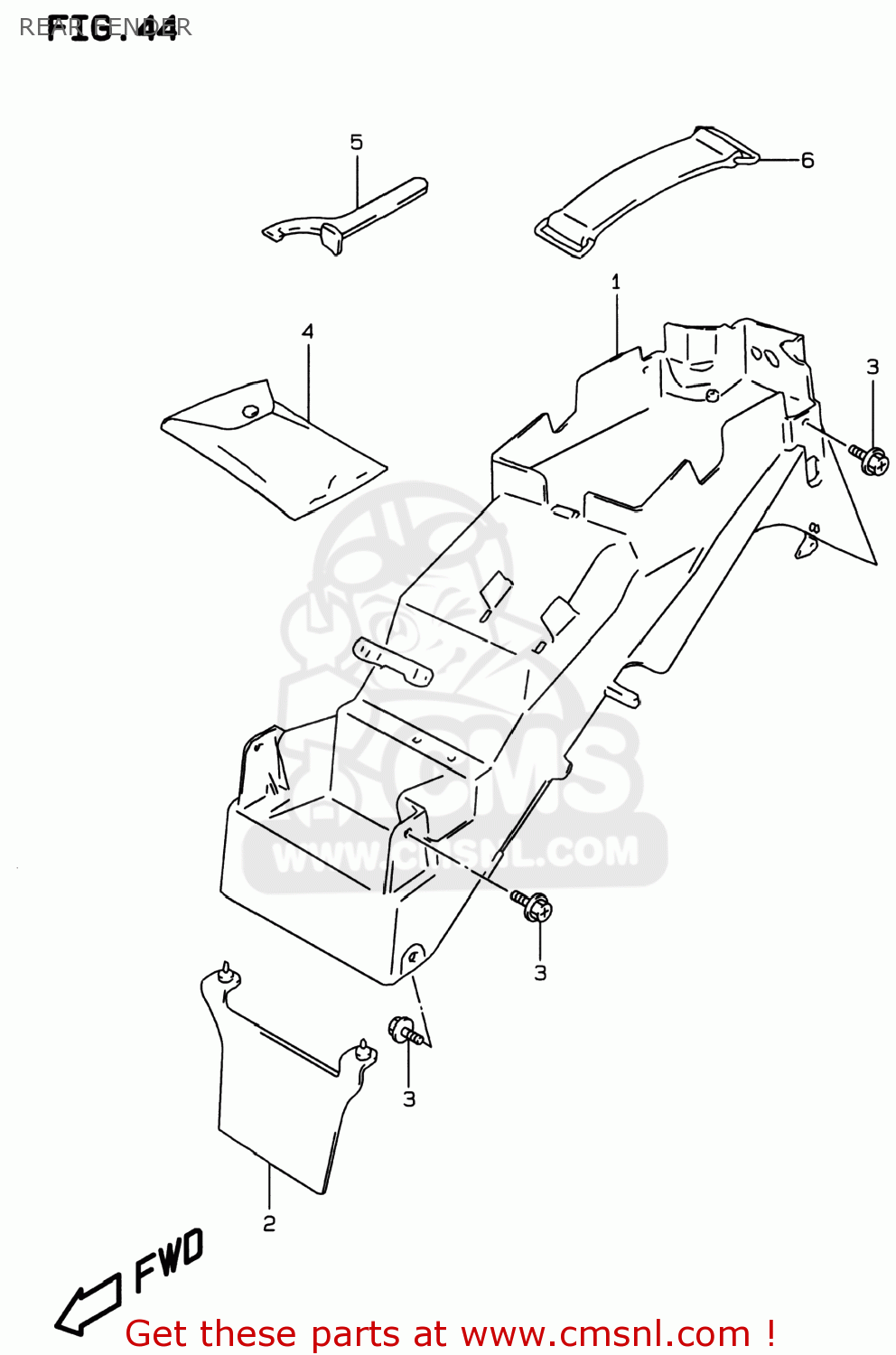

Rear fender diagram GSF600S BANDIT 1996 (T) USA (E03)

REAR FENDER GSF600S BANDIT 1996 (T) USA (E03)

REAR FENDER GSF600S BANDIT 1996 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

6311026E30
ref: 1-1
63110-26E31

FENDER COMP,REAR

€ 89.50

1-2

6311026E40
ref: 1-2
63110-26E41

FENDER,REAR

€ 101.50

2

6341126E00
ref: 2

MUDGUARD,RR FENDER FR

€ 21.00

3

0911106066
ref: 3

BOLT(6X16)

€ 2.50

4-1

0980021010
ref: 4-1

TOOL ASSY

€ 53.00

4-2

0980021037
ref: 4-2

TOOL ASSY

€ 32.00

5

0982200005
ref: 5

CLAMP

€ 22.00

6

0946200008
ref: 6

BAND

€ 4.50
