HEADLAMP

GSF600S BANDIT 1996 (T) USA (E03)

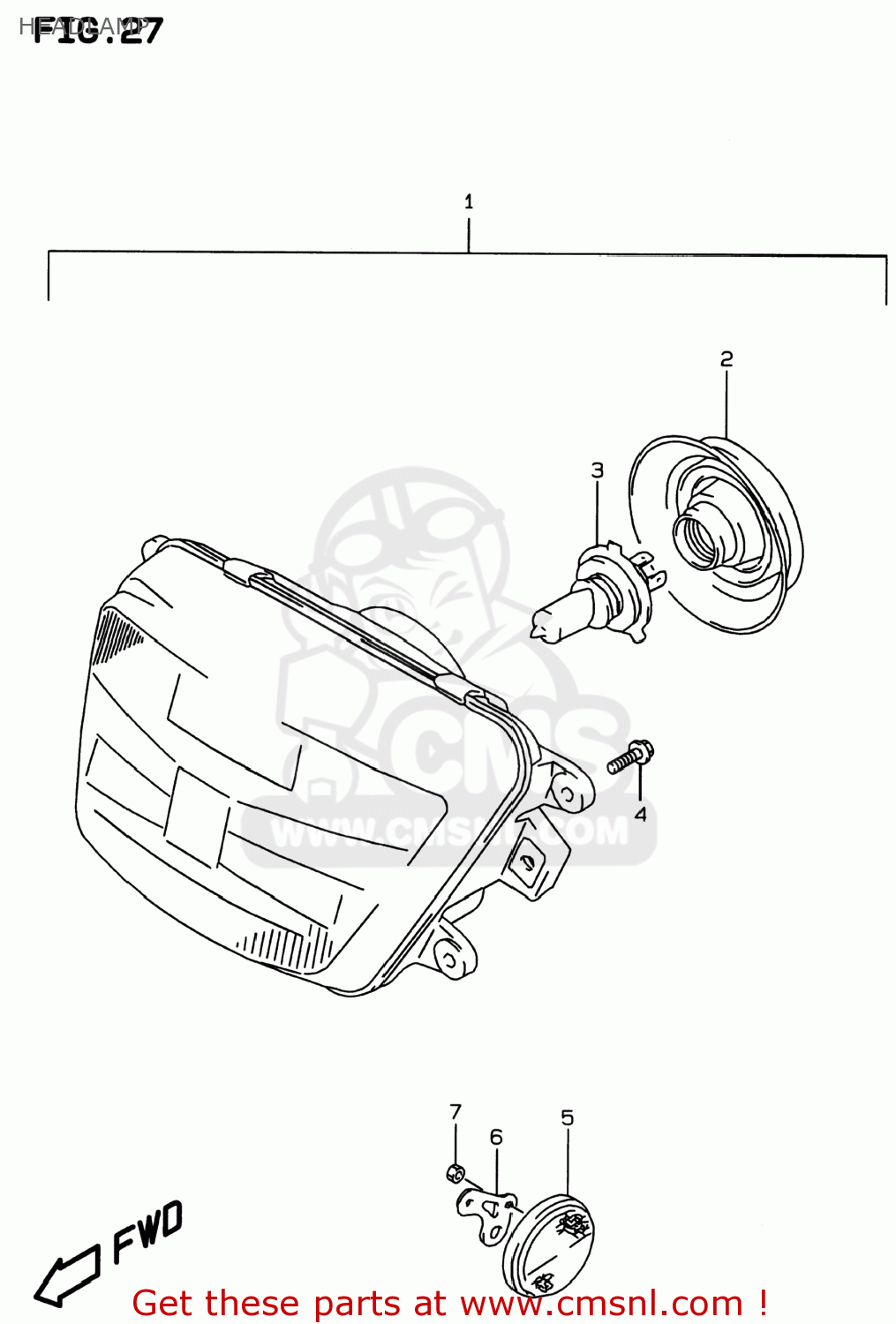

Headlamp diagram GSF600S BANDIT 1996 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3510019D10
ref: 1-1
35100-19D11

HEADLAMP ASSEMBLY

€ 318.50

1-2

3510019D11
ref: 1-2

HEADLAMP ASSY

€ 318.50

3517326B20
ref: 2

COVER,SOCKET

€ 14.50

0947112060
ref: 3

BULB(12V60/55W,H4)

€ 8.00

0214205163
ref: 4
02142-0516A

SCREW

€ 2.50

3595014A00
ref: 5

REFLECTOR,REFLEX FR

€ 15.00

3595621E00
ref: 6

BRACKET,FR SIDE REFLECTOR

€ 0.00

0831000053
ref: 7
08310-0005A

NUT

€ 2.50
