CRANKCASE COVER
GSF600S BANDIT 1996 (T) USA (E03)

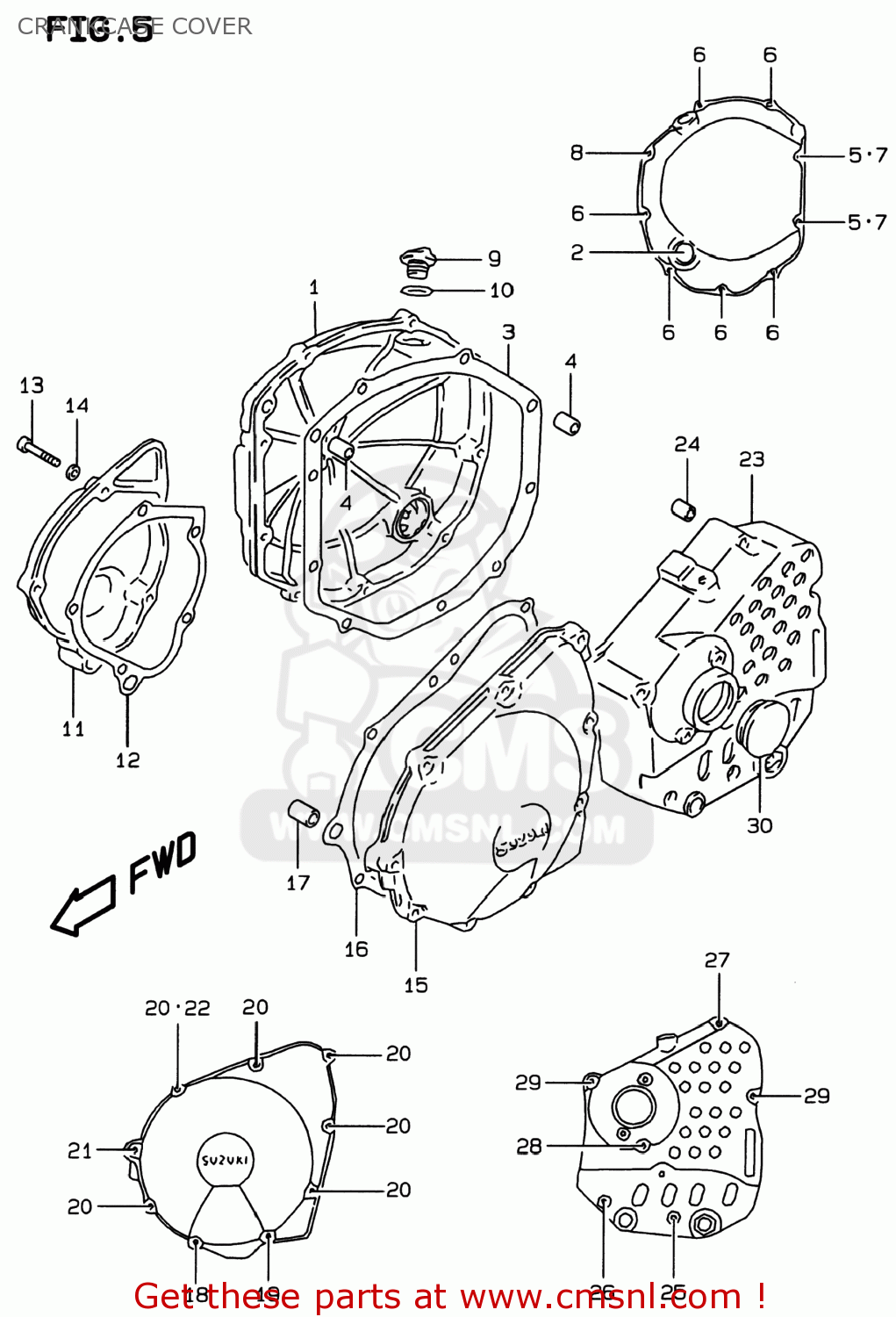

Crankcase cover diagram GSF600S BANDIT 1996 (T) USA (E03)
CRANKCASE COVER GSF600S BANDIT 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1134026E00
ref: 1
COVER,CLUTCH
€ 207.50
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
€ 13.50
3
1148227A20
ref: 3
GASKET,CL COVER (NAS)
€ 18.00
4
0421109189
ref: 4
PIN
€ 2.00
5
0916806024
ref: 5
GASKET(5.8X11X1.2) (NAS)
€ 2.00
6
0713006253
ref: 6
07130-0625B
BOLT,CL.COVER
€ 3.00
7
0713006303
ref: 7
07130-0630B
BOLT
€ 3.00
8
0713006353
ref: 8
07130-0635B
BOLT
€ 3.50
9-1
0925920015
ref: 9-1
09259-20008-XC0
PLUG
€ 6.50
9-2
0925920008
ref: 9-2
09259-20008-XC0
PLUG
€ 6.50
10
0928017003
ref: 10
O RING(D:3.1,ID:16.8)
€ 2.00
11
1138126D10
ref: 11
11381-26D11
COVER,SIGNAL GENERATOR
€ 62.00
12
1149127A30
ref: 12
GASKET,SIGNAL GEN COVER (NAS)
€ 8.00
13
0910606082
ref: 13
BOLT(6X22)
€ 3.00
14
0916806024
ref: 14
GASKET(5.8X11X1.2) (NAS)
€ 2.00
15-1
1135126E00
ref: 15-1
11351-26E01
COVER,STARTER GEAR
€ 156.50
15-2
1135126E01
ref: 15-2
COVER,STARTER GEAR
€ 156.50
16
1148327A20
ref: 16
GASKET,STARTER GEAR COVER (NAS)
€ 14.50
17-1
0920611005
ref: 17-1
09206-11017
PIN (11X20)(SUS)
€ 6.50
17-2
0920611017
ref: 17-2
PIN(8.4X11X20)
€ 6.50
18
0713006163
ref: 18
07130-0616B
BOLT,OIL FILLE
€ 3.00
19
0713006203
ref: 19
07130-0620B
BOLT,CRKCASE,R
€ 3.00
20
0713006253
ref: 20
07130-0625B
BOLT,CL.COVER
€ 3.00
21
0713006403
ref: 21
07130-0640B
BOLT
€ 3.50
22
0916806024
ref: 22
GASKET(5.8X11X1.2) (NAS)
€ 2.00
23-1
1136126E00
ref: 23-1
11361-26E01
COVER,ENGINE SPROCKET
€ 159.50
23-2
1136126E01
ref: 23-2
COVER,ENGINE SPROCKET
€ 159.50
24
0421109129
ref: 24
PIN
€ 2.00
25
0713006403
ref: 25
07130-0640B
BOLT
€ 3.50
26
0713006303
ref: 26
07130-0630B
BOLT
€ 3.00
27
0713006503
ref: 27
07130-0650B
BOLT,CL.COVER
€ 3.00
28
0713006653
ref: 28
07130-0665B
BOLT
€ 4.00
29
0713006703
ref: 29
07130-0670B
BOLT
€ 4.00
30
0925030003
ref: 30
CAP(OD:36)
€ 4.00
