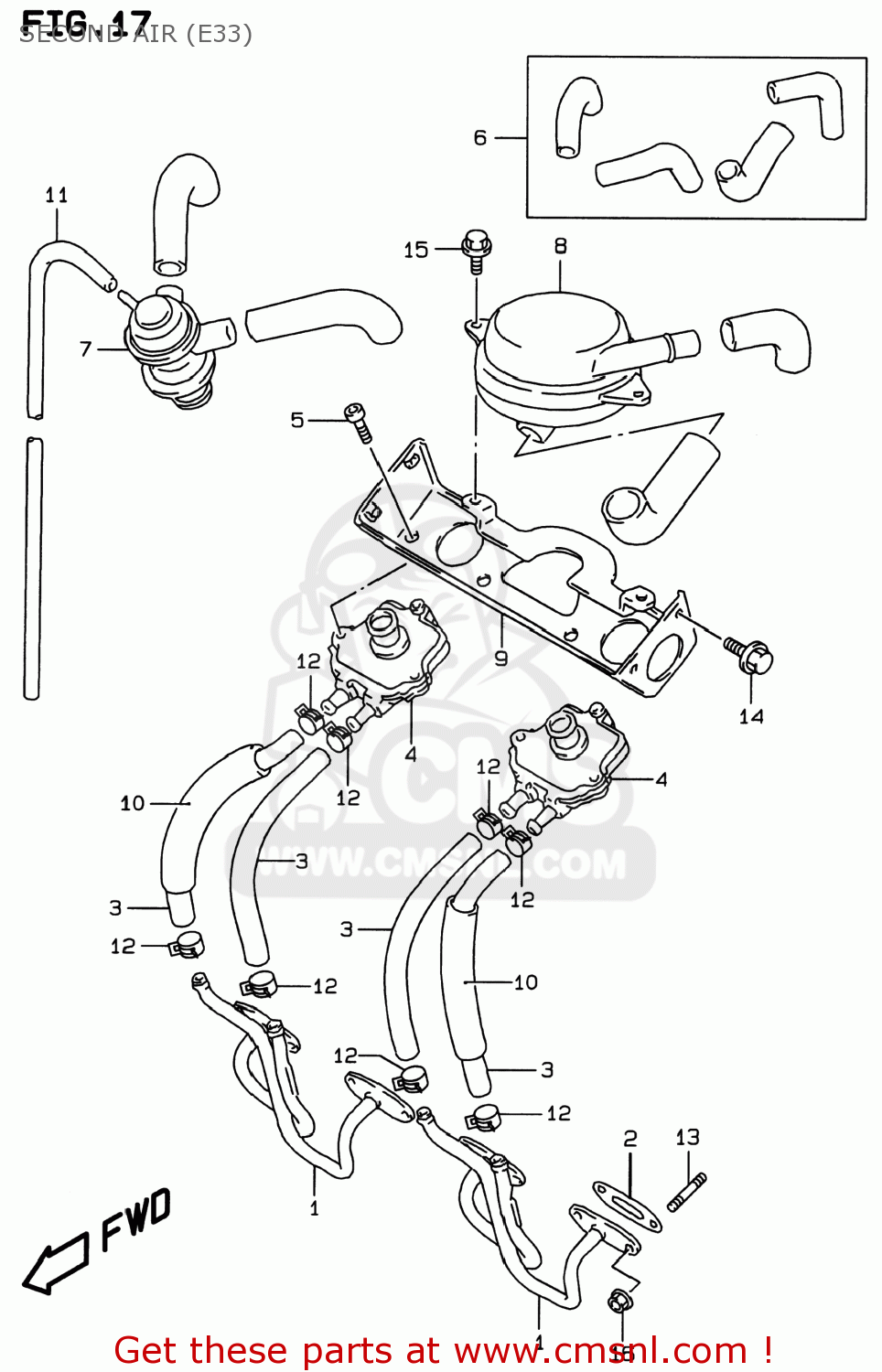

SECOND AIR (E33)

ref

part #

description

quantity

1

1843026D00
ref: 1

PIPE,2ND AIR,L

€ 0.00

2

1844117C10
ref: 2
18441-17C11

GASKET,SECOND AIR PIPE (NAS)

€ 7.00

3

1844526E00
ref: 3

HOSE,SECOND AIR REED VALVE

€ 0.00

4

1845048B00
ref: 4

VALVE ASSY,2ND AIR REED

€ 125.50

5

0713005167
ref: 5

BOLT

€ 2.50

6

1842026821
ref: 6

HOSE SET,SECOND AIR

€ 0.00

7

1851046E00
ref: 7

VALVE ASSEMBLY,SECOND AIR SWITCH

€ 0.00

8

1870017C03
ref: 8

CLEANER ASSEMBLY,SECOND AIR

€ 38.00

9

1875026E00
ref: 9

BRACKET,SECOND AIR

€ 0.00

10

4431126E00
ref: 10

PROTECTOR,REED VALVE

€ 0.00

11-1

0935445853600
ref: 11-1
09355-45855-600

HOSE (4.5X8.5X600)

€ 14.00

11-2

0935545855600
ref: 11-2

HOSE(4.5X8.5X600)

€ 14.00

12-1

0940113413
ref: 12-1
09401-13417

CLIP

€ 2.50

12-2

0940113417
ref: 12-2

CLIP

€ 2.50

13

0142106163
ref: 13
01421-0616A

STUD BOLT

€ 2.00

14

0713006123
ref: 14
07130-0612A

BOLT,STRANGER

€ 2.50

15

0155006123
ref: 15
01550-0612A

BOLT

€ 2.50

16

0831610063
ref: 16
08316-1006B

NUT

€ 2.50

all assemblies
