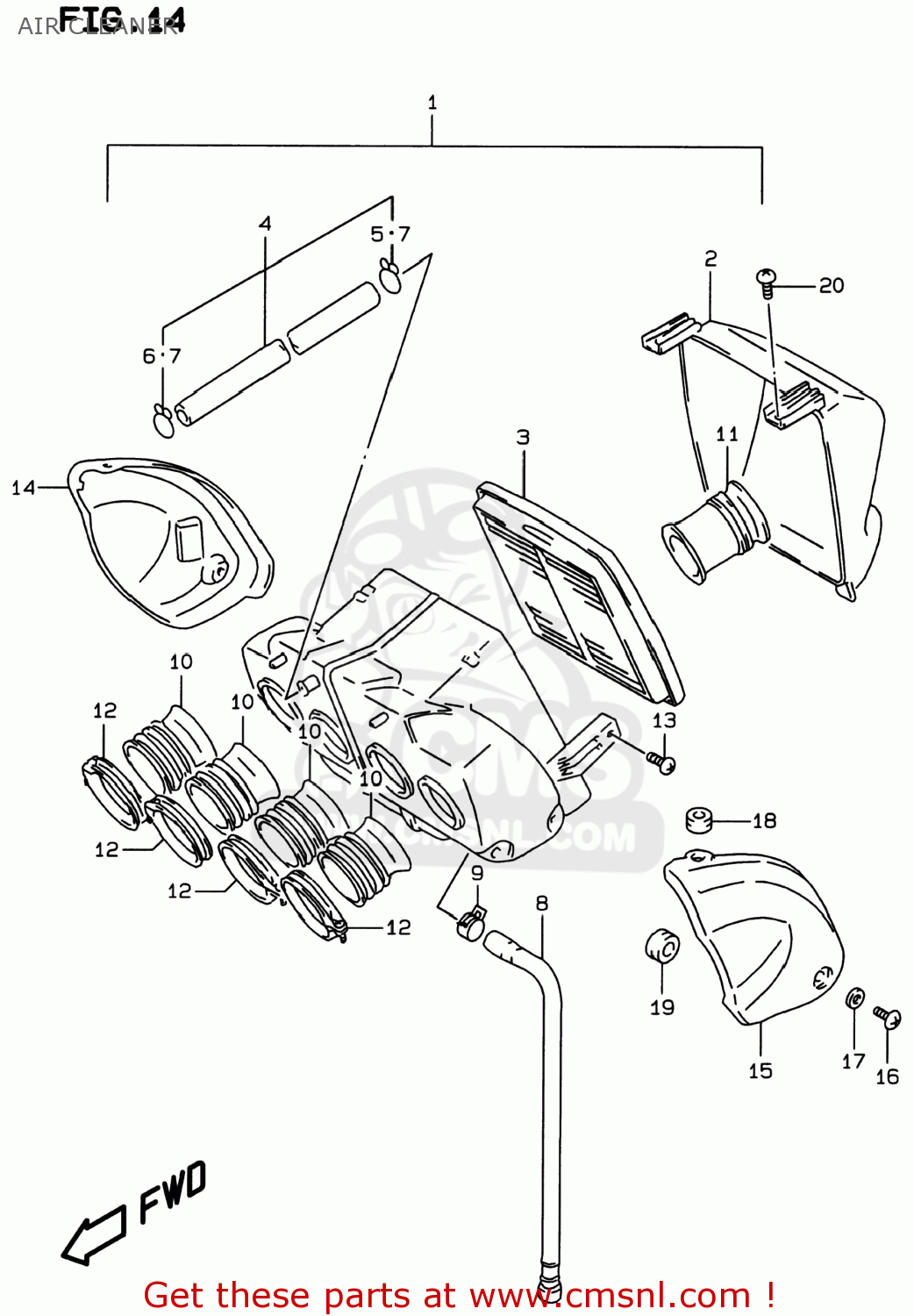

AIR CLEANER

ref

part #

description

quantity

1-1

1370026E00
ref: 1-1

CLEANER ASSY,AIR

€ 296.00

1-2

1370026E10
ref: 1-2

CLEANER ASSEMBLY,AIR

€ 0.00

2

1374017E02
ref: 2

CAP,AIR CLEANER

€ 38.50

3

1378017E00
ref: 3

FILTER,AIR

€ 34.50

4-1

1385027E00
ref: 4-1

TUBE,BREATHER

€ 18.00

4-2

1385026E10
ref: 4-2

TUBE,BREATHER

€ 0.00

5

0940114301
ref: 5

CLIP

€ 2.00

6

0940116401
ref: 6

CLIP

€ 3.00

7

0940114301
ref: 7

CLIP

€ 2.00

8

1387021458
ref: 8

TUBE,DRAIN

€ 23.50

9-1

0940113413
ref: 9-1
09401-13417

CLIP

€ 2.50

9-2

0940113417
ref: 9-2

CLIP

€ 2.50

10

1388126E00
ref: 10

TUBE,OUTLET

€ 28.50

11

1389117E00
ref: 11

TUBE,INLET

€ 22.50

12

0940256208
ref: 12
09402-56901

CLAMP

€ 3.50

13

0214205127
ref: 13

SCREW

€ 1.50

14-1

1391026E00
ref: 14-1
13910-26E01

COVER,AIR CLEANER,RIGHT

€ 80.00

14-2

1391027E00
ref: 14-2
13910-27E01

COVER COMP,AIR CLEANER,RIGHT

€ 69.00

15-1

1392026E00
ref: 15-1
13920-26E01

COVER,AIR CLEANER,LEFT

€ 73.00

15-2

1392027E00
ref: 15-2
13920-27E01

COVER COMP,AIR CLEANER,LEFT

€ 72.50

16

0913905025
ref: 16

SCREW(5X14)

€ 2.00

17

0916905013
ref: 17

WASHER

€ 8.00

18-1

0932005006
ref: 18-1
09320-06504

CUSHION

€ 4.00

18-2

0932006504
ref: 18-2

CUSHION

€ 4.00

19

0932008018
ref: 19

CUSHION

€ 4.00

20

0214206123
ref: 20
02142-0612A

SCREW 6X12

€ 2.00

all assemblies
