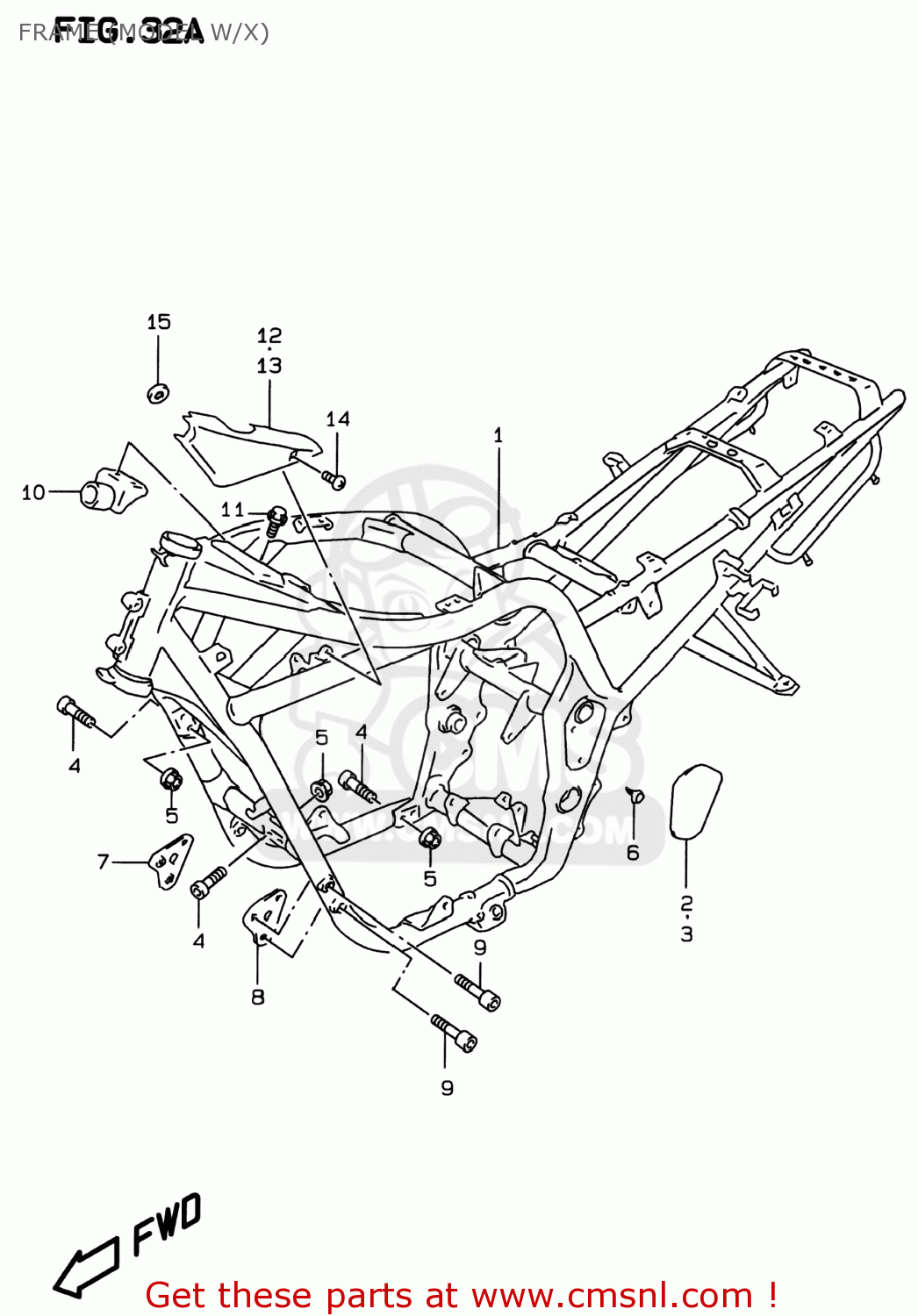

FRAME (MODEL W/X)

ref

part #

description

quantity

1-1

4110026E51Y0V
ref: 1-1

FRAME COMP

€ 1,986.00

1-2

4110026E51Y3H
ref: 1-2

FRAME(ORANGE)

€ 1,986.00

1-3

4110026E51Y0W
ref: 1-3

FRAME(ORANGE)

€ 1,210.50

1-4

4110026E51Y7H
ref: 1-4

FRAME(BLUE)

€ 1,210.50

2

4163926E00
ref: 2

COVER,FRAME BODY,R

€ 12.50

3

4164926E00
ref: 3

COVER,FRAME BODY,L

€ 12.50

4

0910610019
ref: 4

BOLT(10X33)

€ 4.00

5

0831931103
ref: 5
08319-3110A

NUT

€ 3.00

6

0940907329
ref: 6

CLIP

€ 3.00

7-1

4191026E10Y0V
ref: 7-1

PLATE,ENG MTG,R

€ 22.00

7-2

4191026E10Y3H
ref: 7-2

PLATE COMP,ENGINE MOUNTING

€ 20.50

7-3

4191026E10Y0W
ref: 7-3

PLATE COMP,ENGINE MOUNTING

€ 20.50

7-4

4191026E10Y7H
ref: 7-4

PLATE COMP,ENGINE MOUNTING

€ 18.50

8-1

4192026E00Y0V
ref: 8-1

PLATE,ENG MTG,L

€ 141.50

8-2

4192026E00Y3H
ref: 8-2

PLATE,ENG MTG,L

€ 141.50

8-3

4192026E00Y0W
ref: 8-3

PLATE COMP,ENGINE MOUNTING

€ 141.50

8-4

4192026E00Y7H
ref: 8-4

PLATE COMP,ENGINE MOUNTING

€ 18.50

9

0713008503
ref: 9
07130-0850A

BOLT

€ 3.50

10

4255026E00
ref: 10

DAMPER,FRAME

€ 58.00

11

0155006123
ref: 11
01550-0612A

BOLT

€ 2.50

12

4751126E10291
ref: 12

COVER,FRAME HEAD,R

€ 15.50

13

4752126E10291
ref: 13

COVER,FRAME HEAD,L

€ 22.00

14

0913905021
ref: 14

SCREW(5X12)

€ 2.00

15

0932008013
ref: 15

CUSHION

€ 4.00
