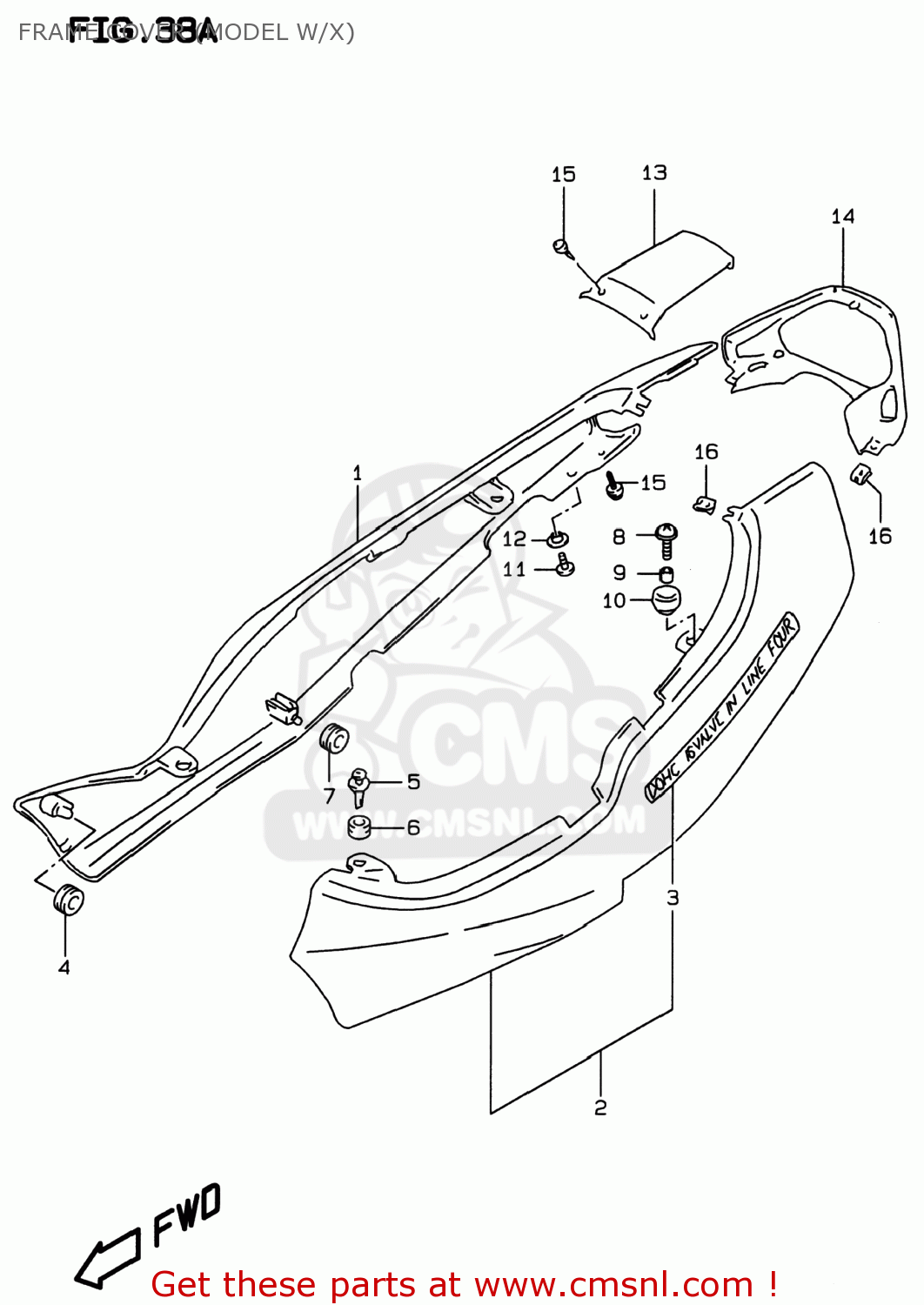

FRAME COVER (MODEL W/X)

ref

part #

description

quantity

1-1

4711026E30Y0V
ref: 1-1

COVER,FRAME,R(GREEN)

€ 153.50

1-2

4711026E30Y3H
ref: 1-2

COVER,FRAME,R(ORANGE)

€ 195.50

1-3

4711026E30Y0W
ref: 1-3

COVER,FRAME,R(ORANGE)

€ 135.50

1-4

4711026E30Y7H
ref: 1-4

COVER,FRAME,R(BLUE)

€ 161.00

2-1

4721026E30Y0V
ref: 2-1

COVER,FRAME,L(GREEN)

€ 153.50

2-2

4721026E30Y3H
ref: 2-2

COVER,FRAME,L(ORANGE)

€ 162.50

2-3

4721026E30Y0W
ref: 2-3

COVER COMP,FRAME,LEFT

€ 151.50

2-4

4721026E30Y7H
ref: 2-4

COVER,FRAME,L(BLUE)

€ 140.00

3-1

6813126E3013L
ref: 3-1

EMBLEM,FRAME COVER

€ 9.50

3-2

6813126E300FP
ref: 3-2

EMBLEM,FRAME COVER

€ 7.00

4

4716121E00
ref: 4

CUSHION,FRAME COVER FR

€ 7.50

5

0940910306
ref: 5

CLIP

€ 3.00

6

0932010501
ref: 6

CUSHION

€ 5.50

7

0932008018
ref: 7

CUSHION

€ 4.00

8

0913606105
ref: 8

SCREW(6X20)

€ 2.00

9

0918006286
ref: 9

SPACER(6.5X10X9.4)

€ 2.50

10

0932010045
ref: 10

CUSHION

€ 3.50

11

0214206163
ref: 11
02142-0616A

SCREW

€ 2.50

12

0916106021
ref: 12

WASHER(6.3X16X1.5)

€ 2.50

13-1

4731126E00Y0V
ref: 13-1

COVER,FRAME,CENTER

€ 35.50

13-2

4731126E00Y3H
ref: 13-2

COVER,FRAME,CENTER

€ 33.00

13-3

4731126E00Y0W
ref: 13-3

COVER,FRAME,CENTER

€ 35.50

13-4

4731126E00Y7H
ref: 13-4

COVER,FRAME CTR

€ 30.00

14

4733126E00291
ref: 14

COVER,FRAME RR

€ 52.00

15

0324115123
ref: 15
03241-1512B

SCREW

€ 2.50

16

0914805020
ref: 16

NUT

€ 2.00
