SIGNAL GENERATOR

GSF600S BANDIT 1999 (X) USA (E03)

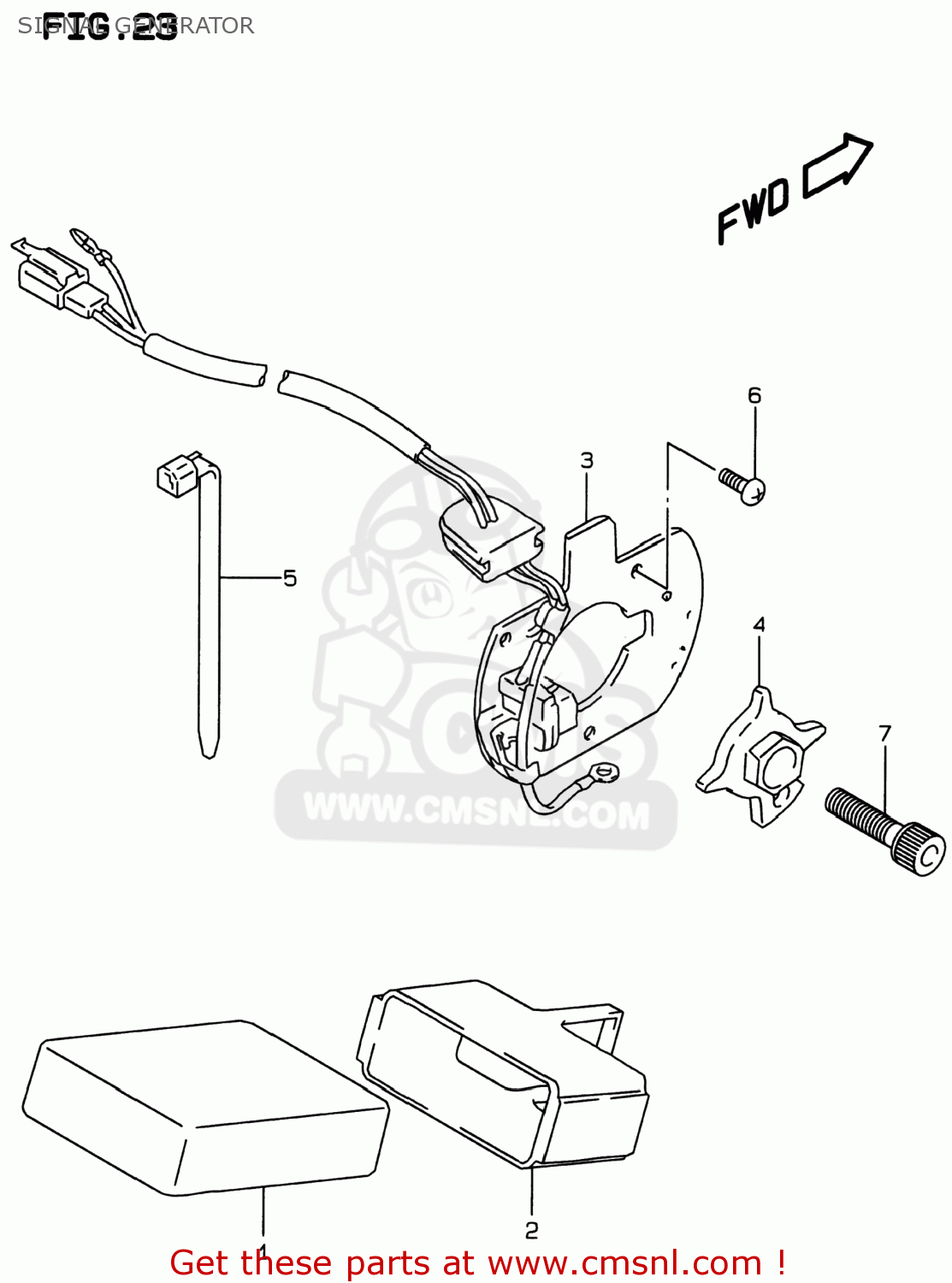

Signal generator diagram GSF600S BANDIT 1999 (X) USA (E03)

SIGNAL GENERATOR GSF600S BANDIT 1999 (X) USA (E03)

SIGNAL GENERATOR GSF600S BANDIT 1999 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3290026E00
ref: 1-1

IGNITOR ASSY

€ 682.50

1-2

3290026E10
ref: 1-2

IGNITER ASSEMBLY

€ 0.00

2

3298040C01
ref: 2

CUSHION,IGNITOR

€ 9.50

3

3311017C00
ref: 3

GENERATOR ASSY,SIGNAL

€ 324.00

4

3312019C20
ref: 4

ROTOR,SIGNAL GENERATOR

€ 182.00

5

0940711401
ref: 5

CLAMP(L:95)

€ 2.50

6

0211205103
ref: 6
02112-0510A

SCREW

€ 2.00

7

0713008303
ref: 7
07130-0830A

BOLT

€ 3.00
