STARTING MOTOR
GSF600S BANDIT 1999 (X) USA (E03)

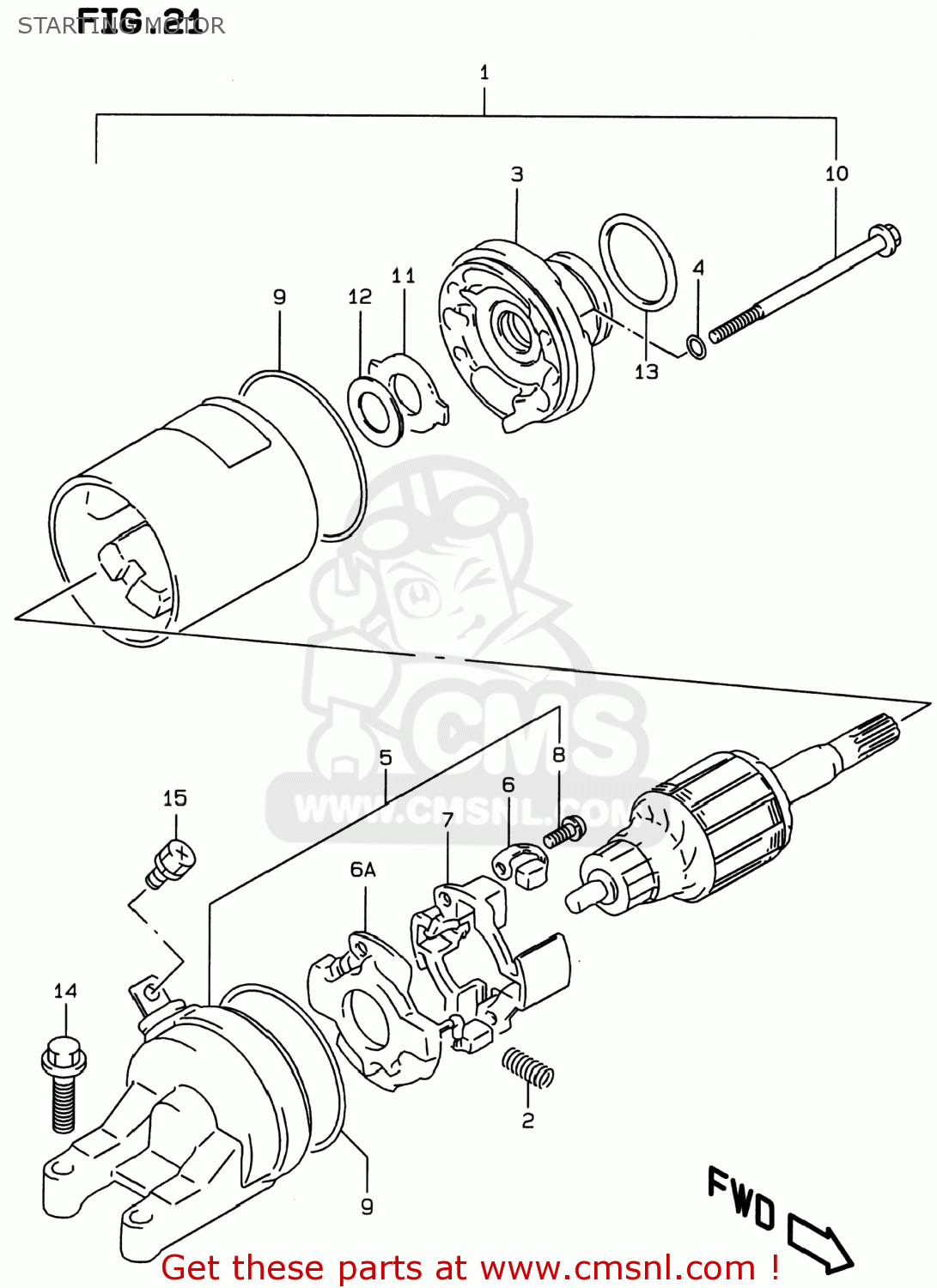

Starting motor diagram GSF600S BANDIT 1999 (X) USA (E03)
STARTING MOTOR GSF600S BANDIT 1999 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3110032C11
ref: 1
31100-08F00
MOTOR ASSEMBLY,STARTING
€ 999.00
2
3113532C10
ref: 2
SPRING
€ 3.50
3
3115006C00
ref: 3
BRACKET
€ 112.00
4
3115638300
ref: 4
O RING
€ 3.00
5
3117532C11
ref: 5
FRAME ASSY,COMMUTATOR END
€ 87.50
6
3113232C10
ref: 6
BRUSH
€ 14.50
6A
3113032C20
ref: 6A
BRUSH SUB ASSY,STARTER
€ 28.00
7
3113332C10
ref: 7
HOLDER,BRUSH
€ 9.00
8
0211234123
ref: 8
02112-3412B
SCREW
€ 2.00
9
3126432C10
ref: 9
O RING
€ 9.00
10
3128132C10
ref: 10
BOLT
€ 8.50
11
3136132C10
ref: 11
PLATE,LOCK
€ 2.50
12
3136138300
ref: 12
SHIM
€ 1.50
13
0928024003
ref: 13
O RING(D:3,ID:24.5)
€ 2.00
14
0912806024
ref: 14
09103-06212
SCREW (6X25)
€ 2.50
15
0913705004
ref: 15
SCREW(5X8)
€ 2.00
