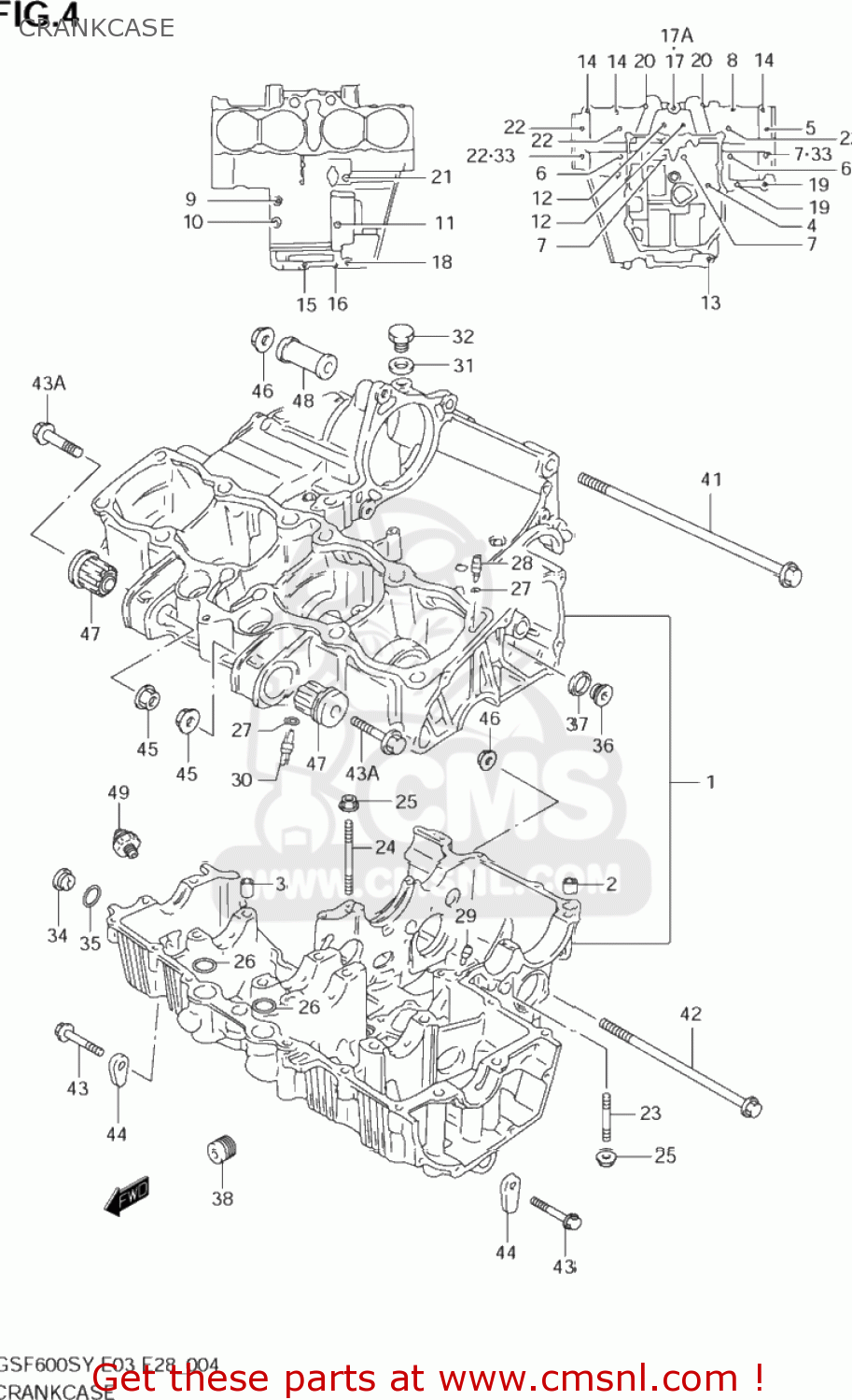

CRANKCASE

ref

part #

description

quantity

1

1130031890
ref: 1

CRANKCASE SET

€ 1,527.50

2

0920613004
ref: 2

PIN(10.4X13X22)

€ 3.00

3

0920611017
ref: 3

PIN(8.4X11X20)

€ 6.50

4

0910306163
ref: 4

BOLT(6X105)

€ 4.00

5

0910308097
ref: 5

BOLT(8X105)

€ 3.00

6

0910308182
ref: 6

BOLT(8X125)

€ 4.50

7

0910308098
ref: 7

BOLT(8X115)

€ 3.00

8

0155006353
ref: 8
01550-0635A

BOLT

€ 2.50

9

0713006403
ref: 9
07130-0640B

BOLT

€ 3.50

10

0713006503
ref: 10
07130-0650B

BOLT,CL.COVER

€ 3.00

11

0713006653
ref: 11
07130-0665B

BOLT

€ 4.00

12

0713008653
ref: 12
07130-0865B

BOLT

€ 3.50

13

0155008603
ref: 13
01550-0860A

BOLT

€ 3.50

14

0155006353
ref: 14
01550-0635A

BOLT

€ 2.50

15

0155006407
ref: 15

BOLT

€ 2.50

16

0155006407
ref: 16

BOLT

€ 2.50

17

0155006503
ref: 17
01550-0650A

BOLT

€ 2.00

17A

0916806023
ref: 17A

GASKET(5.8X13X1.2) (NAS)

€ 2.00

18

0155006603
ref: 18
01550-0660A

BOLT

€ 2.50

19

0155006553
ref: 19
01550-0655B

BOLT, HYDRAULIC UNIT NO.2

€ 2.00

20

0155006703
ref: 20
01550-0670B

BOLT

€ 2.50

21

0155006803
ref: 21

BOLT

€ 2.50

22

0910308066
ref: 22

BOLT(8X95)

€ 3.00

23

0142106408
ref: 23
01421-0640A

STUD BOLT

€ 2.50

24

0142106608
ref: 24
01421-0660A

STUD BOLT

€ 2.50

25

0831610063
ref: 25
08316-1006B

NUT

€ 2.50

26

0928021008
ref: 26

O RING(D:2.5,ID:21)

€ 2.00

27

0928004004
ref: 27

O RING(D:1.2,ID:4)

€ 2.00

28

0949314002
ref: 28

JET,AIR

€ 8.00

29

0949324010
ref: 29

JET

€ 12.00

30

0949326007
ref: 30

JET(13)

€ 13.50

31

0916812002
ref: 31

GASKET(12.1X16.2X3.7) (NAS)

€ 2.00

32

0924712103
ref: 32

PLUG(12X9)

€ 3.50

33

0916808021
ref: 33

GASKET(8.5X17X2.3) (NAS)

€ 3.00

34

0924816003
ref: 34
09248-16007

PLUG

€ 16.50

35

0928017002
ref: 35

O RING(D:2.4,ID:16.8)

€ 3.50

36

0924814010
ref: 36

PLUG

€ 5.00

37

0916814002
ref: 37
09168-14004

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

38

1659106B00
ref: 38
16591-06B01

UNION,OIL STAND

€ 6.00

39

1222843414
ref: 39

PLATE,CRANK THRUST

€ 9.50

39

1222843414
ref: 39

PLATE,CRANK THRUST

€ 9.50

40-1

1222843411
ref: 40-1

PLATE,CRANK THRUST

€ 8.50

40-1

1222843411
ref: 40-1

PLATE,CRANK THRUST

€ 8.50

40-2

1222843412
ref: 40-2

PLATE,CRANK THRUST

€ 8.50

40-3

1222843413
ref: 40-3

PLATE,CRANK THRUST

€ 8.00

40-4

1222843414
ref: 40-4

PLATE,CRANK THRUST

€ 9.50

40-5

1222843415
ref: 40-5

BEARING,THRUST

€ 8.50

40-6

1222843416
ref: 40-6

PLATE,CRANK THRUST

€ 9.50

41

0910310136
ref: 41

BOLT(10X180)

€ 11.50

42

0910310122
ref: 42

BOLT(10X130)

€ 9.50

43

0158010553
ref: 43
01580-1055B

BOLT

€ 3.00

43A

0155010553
ref: 43A
01550-1055B

BOLT

€ 3.00

44

0915910020
ref: 44

NUT

€ 7.50

45

0831610103
ref: 45
08316-1010B

NUT

€ 2.00

46

0915910058
ref: 46
09159-10115

NUT

€ 4.00

47

1168106B00
ref: 47

BUSH,ENGINE MOUNTING

€ 26.00

48

1161020C00
ref: 48

SPACER,ENGINE MOUNT(L27)

€ 10.00

49-1

3782033D00
ref: 49-1
37820-33D10

SWITCH ASSEMBLY,OIL PRESSURE

€ 29.00

49-2

3782033D10
ref: 49-2

SWITCH ASSY,OIL PRESSURE

€ 29.00
