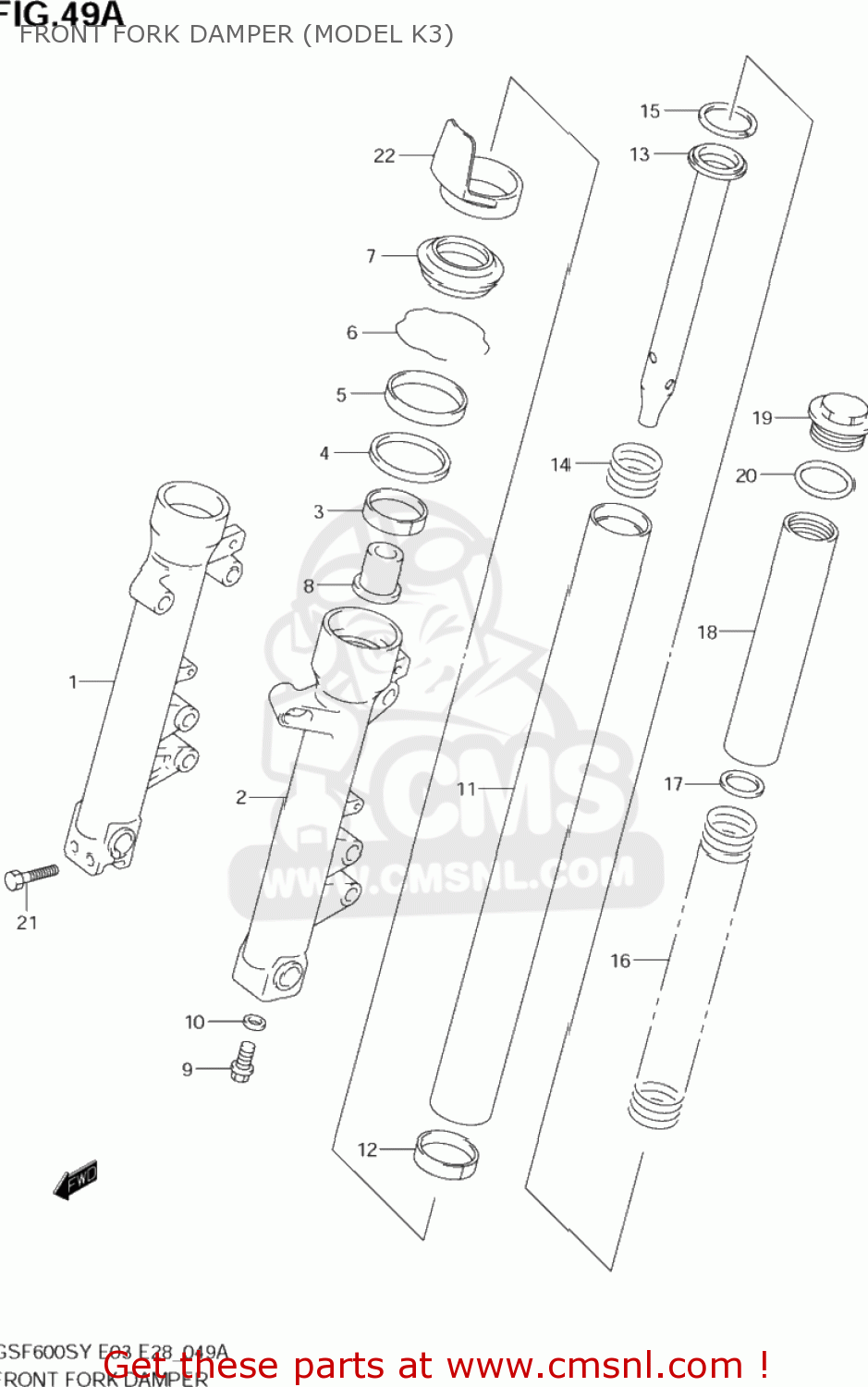

FRONT FORK DAMPER (MODEL K3)

ref

part #

description

quantity

5110331F50
ref:

DAMPER ASSY,FR FORK,R

€ 0.00

5110431F50
ref:

DAMPER ASSY,FR FORK,L

€ 0.00

1

5113031F00
ref: 1

TUBE,OUTER,R

€ 469.50

2

5114031F00
ref: 2

TUBE,OUTER,L

€ 429.50

3

5116726E10
ref: 3

METAL,SLIDE

€ 20.50

4

5115805A00
ref: 4

WASHER,FORK OIL SEAL

€ 5.00

5

5115314F00
ref: 5

SEAL,OIL

€ 25.00

6

5115649440
ref: 6

RING,OIL SEAL STOPPER

€ 5.50

7

5117314F00
ref: 7

SEAL,DUST

€ 18.50

8

5119533D10
ref: 8

PIECE,OIL LOCK

€ 18.00

9

5114716510
ref: 9

BOLT,FORK CYLINDER(10X25)

€ 3.50

10

5114841310
ref: 10

GASKET (NAS)

€ 2.50

11

5111031F00
ref: 11

TUBE,INNER

€ 506.50

12

5112133D10
ref: 12

PISTON

€ 11.00

13

5114631F00
ref: 13

CYLINDER

€ 100.50

14

5117706C00
ref: 14

SPRING,REBOUND

€ 10.50

15

5119631F00
ref: 15

RING,PISTON

€ 7.00

16

5117131F10
ref: 16

SPRING,FR

€ 68.00

17

5135610D03
ref: 17

WASHER(22.5X35.9X1.6)

€ 3.00

18

5117614A20
ref: 18

SPACER,SPRING

€ 11.00

19

5135131F40
ref: 19

CAP,FORK

€ 28.00

20

0928032001
ref: 20

O RING(D:3.5,ID:31.7)

€ 2.00

21

0155008457
ref: 21

BOLT

€ 4.00

22

5120131F00
ref: 22

PROTECTOR

€ 13.50

all assemblies
