REAR CUSHION LEVER
GSF600S BANDIT 2000 (Y) USA (E03)

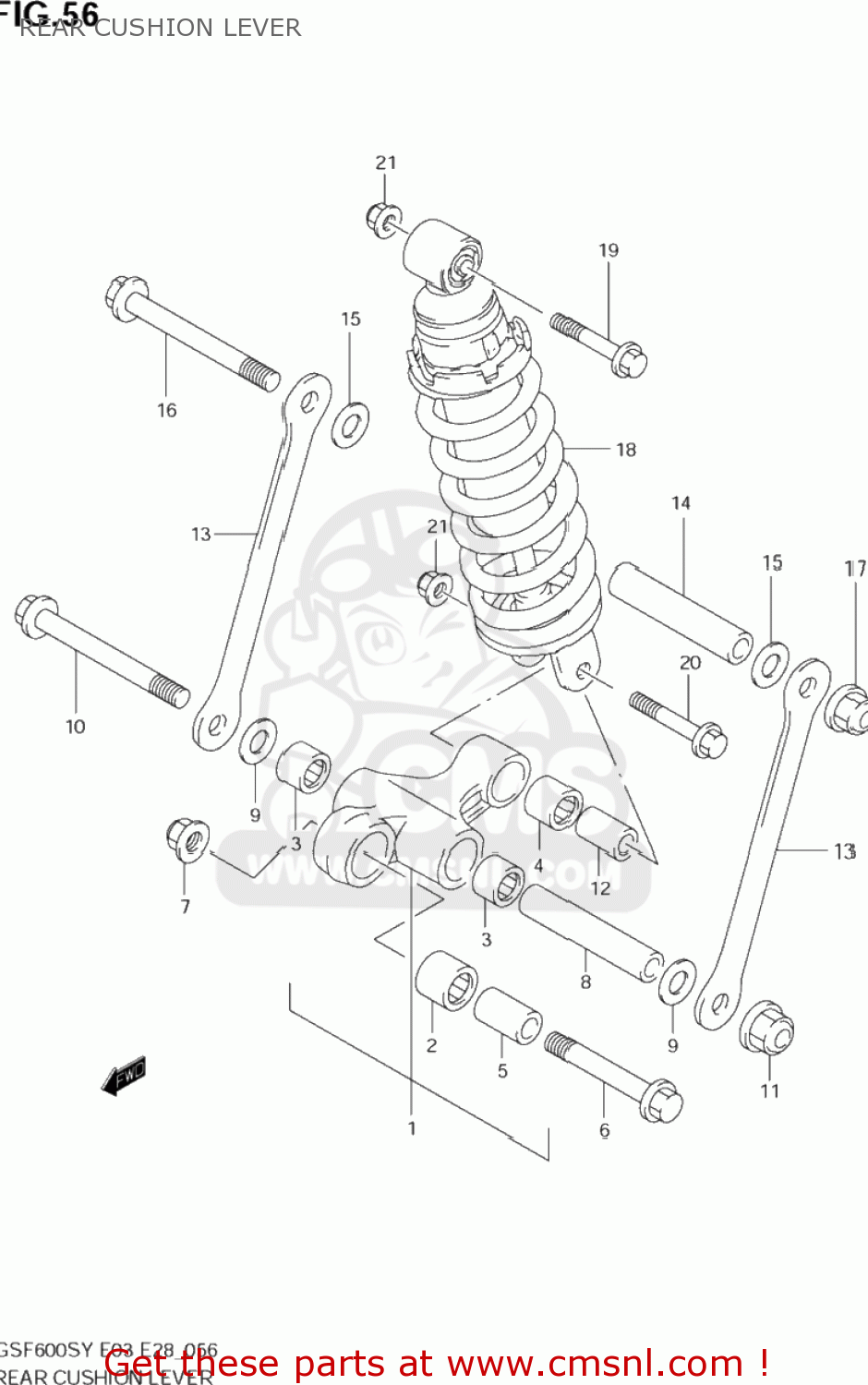

Rear cushion lever diagram GSF600S BANDIT 2000 (Y) USA (E03)
REAR CUSHION LEVER GSF600S BANDIT 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6260031820
ref: 1
LEVER SET,REAR CUSHION
€ 349.00
2
0926320064
ref: 2
BEARING(20X27X26)
€ 20.00
3
0926317037
ref: 3
BEARING(17X24X25)
€ 19.00
4
0926317034
ref: 4
BEARING(17X24X26)
€ 21.50
5
6268401D00
ref: 5
SPACER,RR CUSHION LEVER FR
€ 17.00
6
6266842A02
ref: 6
BOLT,CUSHION LEVER FR
€ 7.00
7
0831931128
ref: 7
08319-3112A
NUT 12MM
€ 4.00
8
0918012125
ref: 8
SPACER(12X17X89)
€ 22.00
9
0916012037
ref: 9
WASHER(12X34X1)
€ 4.00
10
6262142E00
ref: 10
62621-42E10
BOLT,REAR CUSHION ROD
€ 16.50
11
0831931128
ref: 11
08319-3112A
NUT 12MM
€ 4.00
12
6268440A10
ref: 12
SPACER,RR CUSHION LEVER
€ 11.50
13
6264131F00
ref: 13
ROD,RR CUSHION
€ 27.00
14
0918012125
ref: 14
SPACER(12X17X89)
€ 22.00
15
0916012037
ref: 15
WASHER(12X34X1)
€ 4.00
16
6262142E00
ref: 16
62621-42E10
BOLT,REAR CUSHION ROD
€ 16.50
17
0831931128
ref: 17
08319-3112A
NUT 12MM
€ 4.00
18-1
6210031F10
ref: 18-1
ABSORBER ASSY,RR SHOCK
€ 0.00
18-2
6210031F30
ref: 18-2
ABSORBER ASSY,RR SHOCK
€ 654.50
19
6264814500
ref: 19
BOLT,RR CUSHION ROD UPR
€ 3.00
20
6231128E00
ref: 20
BOLT,RR SHOCK ABSORBER
€ 4.00
21
0831931107
ref: 21
NUT
€ 3.00
